Product Model

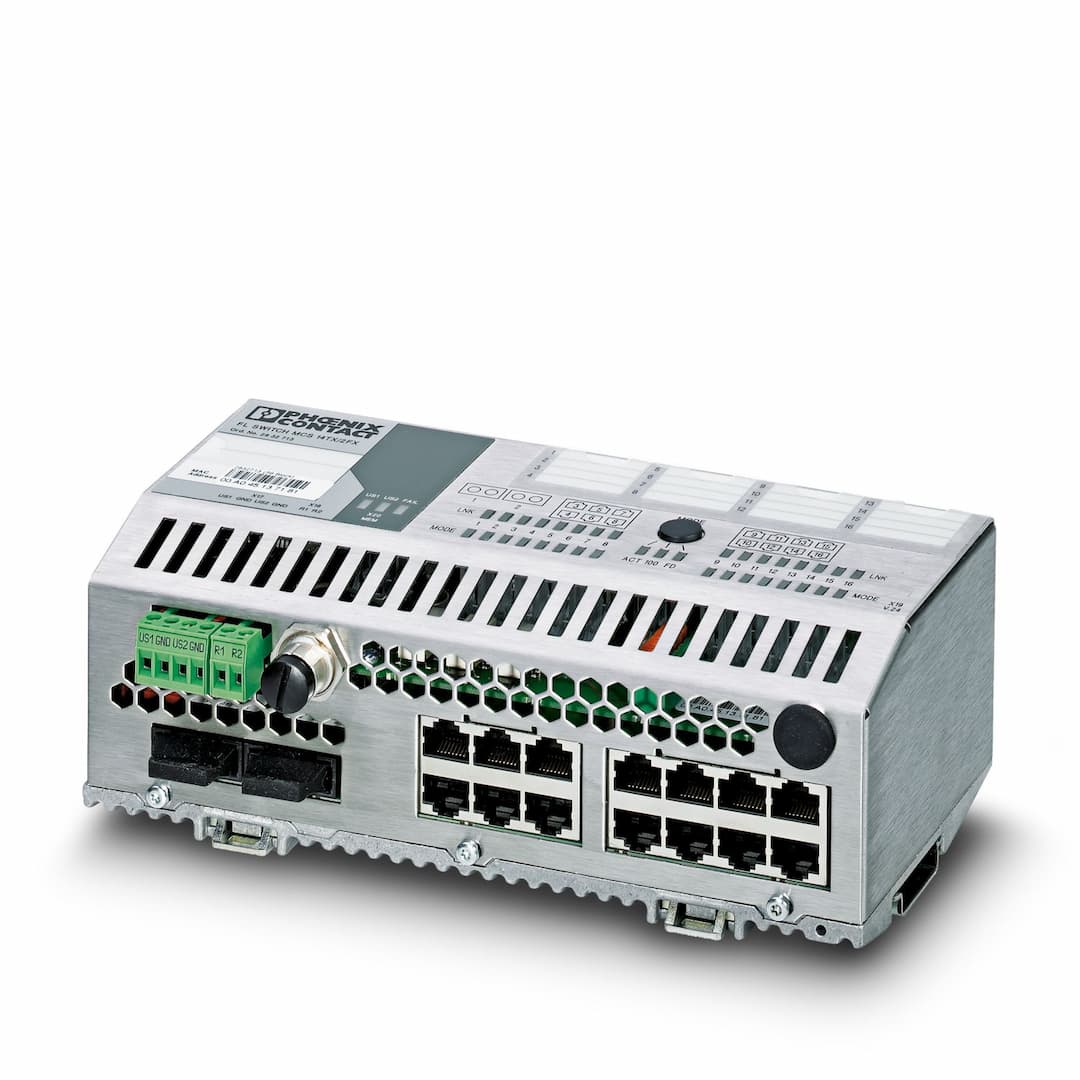

FL SWITCH MCS 14TX/2FX
Selling Points
- 1Supports 14 Ethernet ports for seamless communication.
- 2Offers two 100 Mbps FX-SC multi-mode ports for extended network reach.
- 3Compact switch designed for DIN rail mounting, ensuring easy integration into industrial settings.
- 4Equipped with SNMP and MRP protocols for efficient network management and redundancy.
- 5Features IP20 protection and operates between 0°C to 55°C, making it suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 214 mm | Height | 95 mm |
Depth | 69 mm | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | No. of channels | 14 (RJ45 ports) |
Connection method | SC | Transmission speed | 100 Mbps (full duplex) |
Transmission physics | multi-mode fiberglass | Transmission length | 10000 m (depending on the fiber used)
6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
2800 m (fiberglass with F-G 50/125 1.6 dB/km F800) |
Wavelength | 1300 nm | No. of channels | 2 (SC multi-mode) |
Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) | Product type | Switch |
Type | Block design | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Basic functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent | PROFINET device function | PROFINET device |
PROFINET specification | Version 1.1 | Redundancy | STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
MRP (Media Redundancy Protocol) |
Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) | Supported browsers | Internet Explorer 5.5 or higher |
Basic functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent | Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LINK Link status Green LED
ACT/MODE Receiving/sending telegrams Green LED
100/MODE Data transmission speed Green LED
FD/MODE Duplex mode Green LED |
Maximum power dissipation for nominal condition | 19.2 W | Transmission medium | Copper
FO |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 30.5 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Typical current consumption | 800 mA (at U | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 80 kPa ... 108 kPa (2000 m above mean sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-3/-4 |
Basic functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent | Supported browsers | Internet Explorer 5.5 or higher |
Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Specifications may be subject to change without notice
