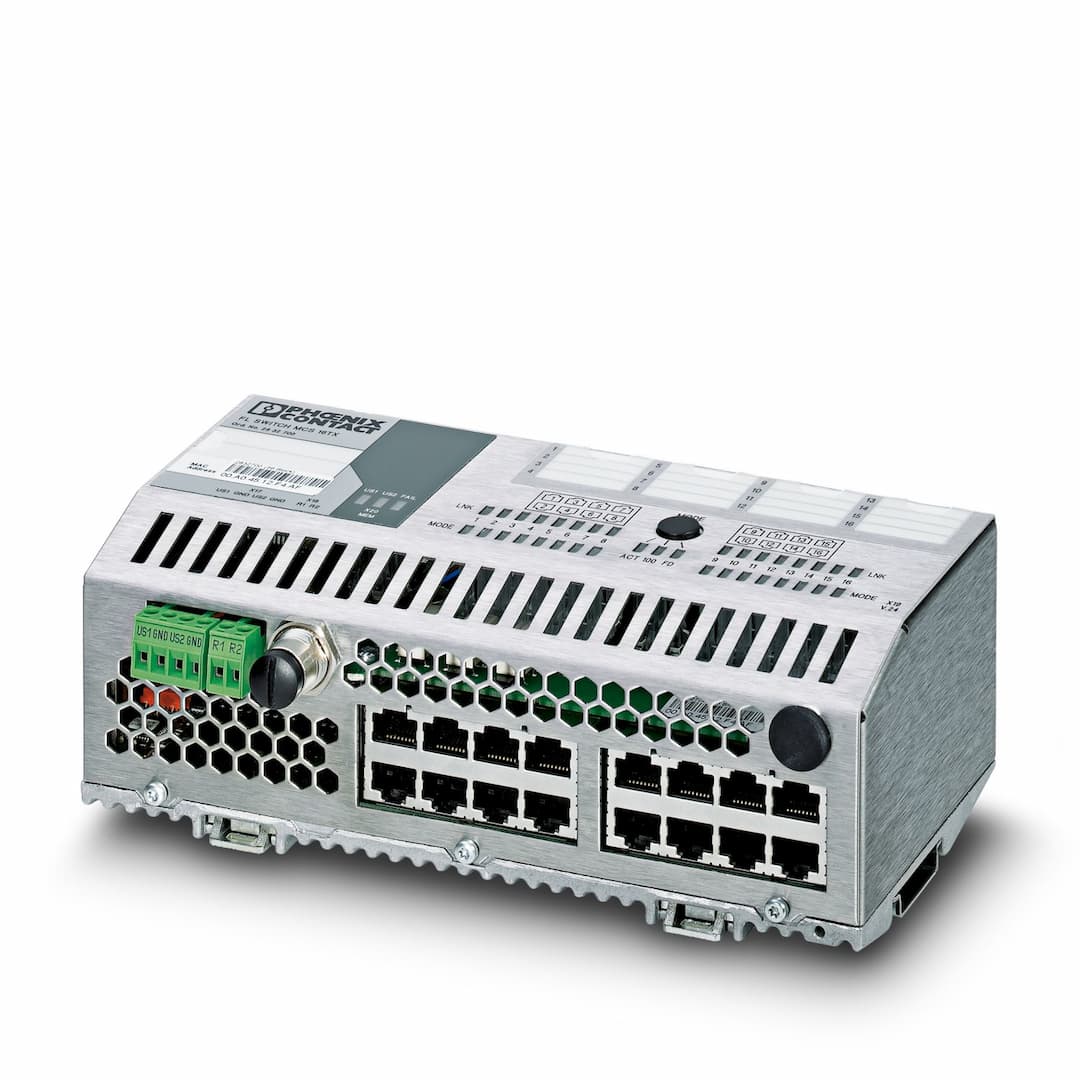

Industrial Ethernet Switch FL SWITCH MCS 16TX - Reliable Networking Solution

Selling Points

1Compact Design: 214 mm x 95 mm x 69 mm dimensions for easy installation.
2High-Speed Connectivity: 16 RJ45 ports supporting 10/100 Mbps transmission speed.
3Advanced Networking Features: RSTP, VLANs, MRP, SNMP, and IGMP snooping for efficient network management.
4Reliable Operation: Operates in temperatures from 0 °C to 55 °C and humidity levels of 10% to 95%.
5Durable Construction: IP20 degree of protection and compliance with EMC Directive 2004/108/EC.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	214 mm	Height	95 mm
Depth	69 mm	Material base plate	Die-cast aluminum, corrosion-resistant
Housing material	Stainless steel 1.4301	Mounting type	DIN rail mounting
Connection method	RJ45	Note on the connection method	Auto negotiation and autocrossing
Transmission speed	10/100 Mbps	Transmission physics	Copper
Transmission length	100 m (per segment)	No. of channels	16 (RJ45 ports)
Connection method	RS-232-C, 6-pos. MINI-DIN socket (PS/2)	Product type	Switch
Type	Block design	Protection class	III (IEC 61140, EN 61140, VDE 0140-1)
Basic functions	Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent	PROFINET device function	PROFINET device
PROFINET specification	Version 1.1	Redundancy	STP (Spanning Tree Protocol) RSTP (Rapid Spanning Tree Protocol) FRD (Fast Ring Detection) Large Tree Support MRP (Media Redundancy Protocol)
Status and diagnostic indicators	LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex)	Supported browsers	Internet Explorer 5.5 or higher
Basic functions	Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent	Local diagnostics	US1/2 Supply voltage US1, US2 Green LED FAIL Div. LED red LINK Link status Green LED ACT/MODE Receiving/sending telegrams Green LED 100/MODE Data transmission speed Green LED FD/MODE Duplex mode Green LED
Maximum power dissipation for nominal condition	14.4 W	Transmission medium	Copper
Supply voltage	24 V DC	Supply voltage range	18.5 V DC ... 30.5 V DC
Power supply connection	Via COMBICON, max. conductor cross section 2.5 mm²	Residual ripple	3.6 V
Typical current consumption	600 mA (at U	Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 55 °C (non-condensing)	Ambient temperature (storage/transport)	-20 °C ... 70 °C
Permissible humidity (operation)	10 % ... 95 % (non-condensing)	Permissible humidity (storage/transport)	10 % ... 95 % (non-condensing)
Vibration (operation)	in acc. with IEC 60068-2-6: 5g, 150 Hz	Air pressure (operation)	80 kPa ... 108 kPa (2000 m above mean sea level)
Air pressure (storage/transport)	66 kPa ... 108 kPa (3500 m above sea level)	Electromagnetic compatibility	Conformance with EMC Directive 2004/108/EC
Noise immunity	EN 61000-6-2:2005	Noise emission	EN 61000-6-3/-4
Basic functions	Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent	Supported browsers	Internet Explorer 5.5 or higher
Status display	LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex)

Specifications may be subject to change without notice
