Product Model

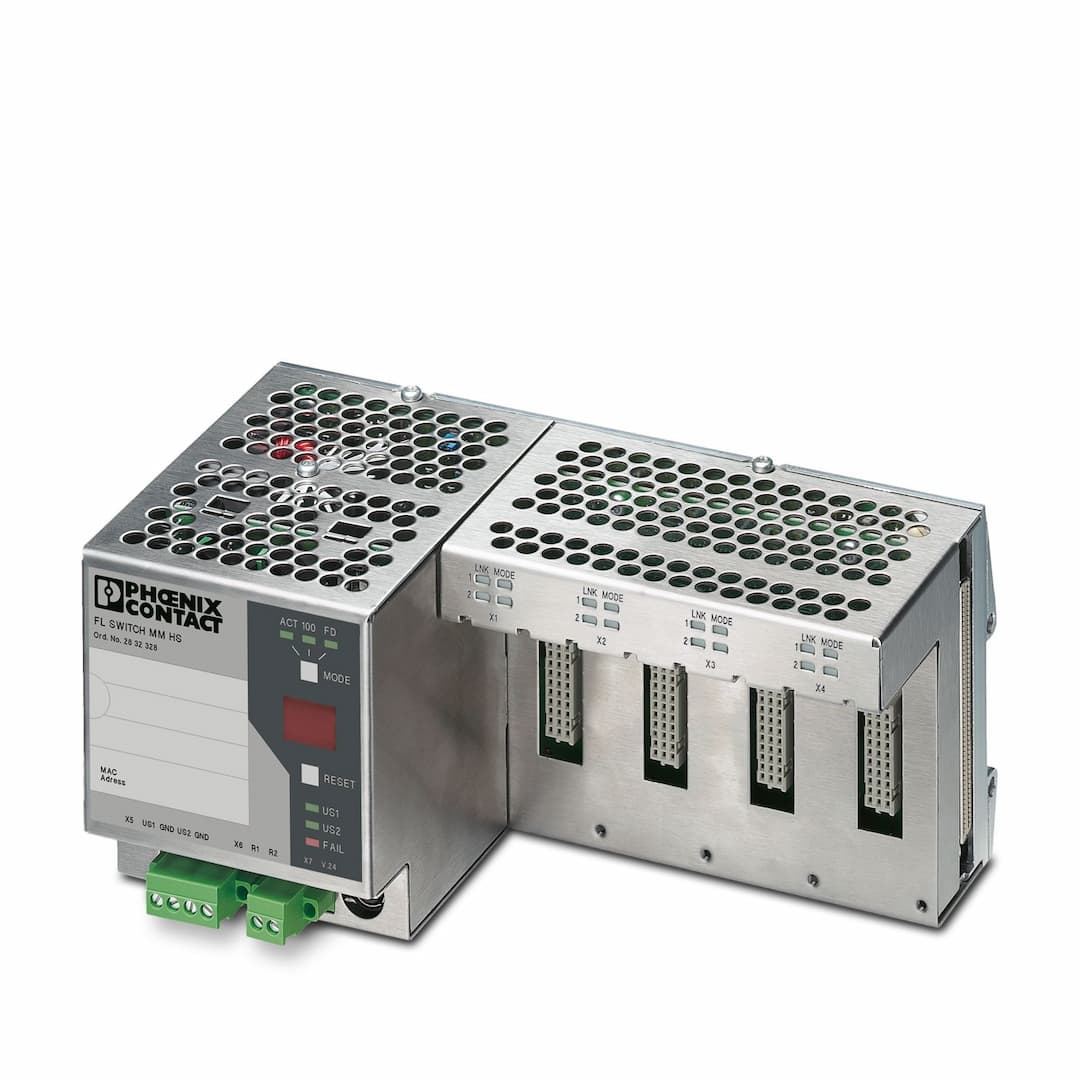

FL SWITCH MM HS
Selling Points
- 1Industrial-grade reliability: Built for demanding industrial environments with IP20 protection.
- 2High-speed connectivity: Supports 10/100/1000 Mbps Ethernet speeds for efficient data transfer.
- 3Easy commissioning: Fast startup and configuration with the FL NETWORK MANAGER software.
- 4Advanced management features: Web-based management, SNMP, and command-line interface for seamless control.
- 5Scalable and secure: Supports up to 32 VLANs and IGMP Snooping for enhanced network security and scalability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 214 mm | Height | 95 mm |
Depth | 115 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Housing material | Zinc die-cast, surface bronzed and nickel-plated | Mounting type | DIN rail mounting |
Connection method | 8 ports via FL IF (interface) modules | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | No. of channels | 8 (Can be extended to a maximum of 24 ports) |
Connection method | via interface module | Transmission speed | 100 Mbps (full duplex) |
Transmission physics | multi-mode fiberglass | Transmission length | up to 10000 m (depending on the fiber used)
1300 nm |
No. of channels | 8 (Can be extended to a maximum of 24 ports) | Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Product type | Switch | Type | Stand-Alone |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Basic functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
PROFINET device function | PROFINET device | PROFINET specification | Version 1.1 |
Redundancy | STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
MRP (Media Redundancy Protocol) | Status and diagnostic indicators | Per Ethernet 2 status LEDs: LINK and switch-over Status Activity, 100, full duplex, supply voltage U |
Supported browsers | Internet Explorer 5.5 or higher | Basic functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
Power consumption | typ. 8.4 W (up to 78 W, depends on the configuration (extensions/Interface modules)) | Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LINK Link status Green LED
ACT/MODE Receiving/sending telegrams Green LED
100/MODE Data transmission speed Green LED
FD/MODE Duplex mode Green LED |
Maximum power dissipation for nominal condition | 8.4 W | Transmission medium | Copper
FO |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 30.2 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 3.5 A | Typical current consumption | 350 mA (up to 3500 mA, depends on the configuration) |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 80 kPa ... 108 kPa (2000 m above mean sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Free from substances that could impair the application of coating | In acc. with VW specification | Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
Conformance with EMC directives | IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
EN 55022 (emitted interference) Class A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-3/-4 | Basic functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
Supported browsers | Internet Explorer 5.5 or higher | Status display | Per Ethernet 2 status LEDs: LINK and switch-over Status Activity, 100, full duplex, supply voltage U |
Specifications may be subject to change without notice
