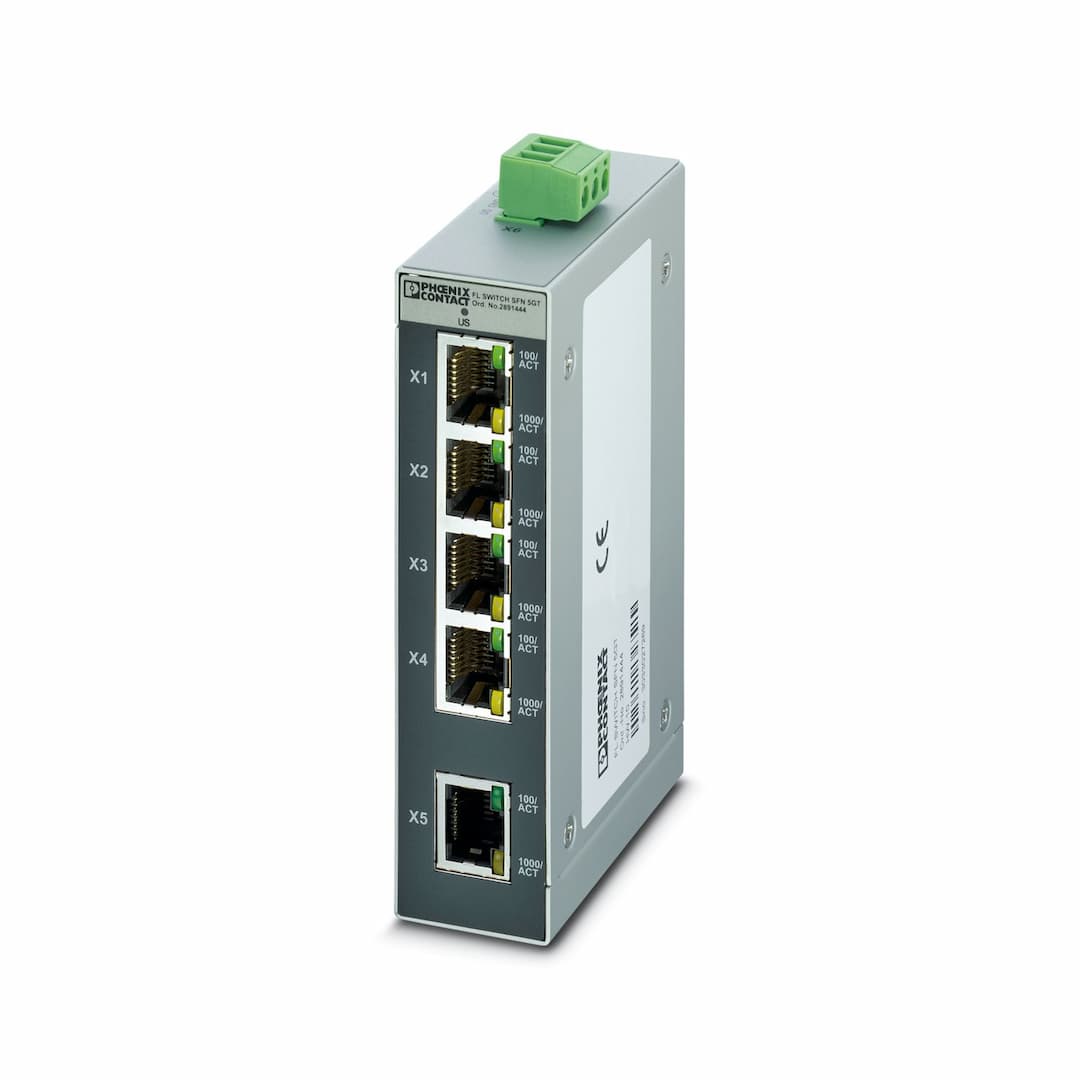

Product Model
FL SWITCH SFN 5GT
Selling Points
- 1Supports auto negotiation for twisted-pair ports.
- 2Offers transmission speeds of 10/100/1000 Mbps.
- 3Features QoS prioritization for heavy traffic management.
- 4Stores up to 8192 MAC addresses in its address table.
- 5Includes alarm contacts for remote fault detection and link status diagnostics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 28 mm | Height | 110 mm |
Depth | 70 mm | Note on application | Only for industrial use |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
No. of channels | 5 (RJ45 ports) | Product type | Switch |
Product family | Unmanaged Switch SFN | Type | Block design |
MTTF | 205.1 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Article revision | 05 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
PROFINET conformance class | Conformance-Class A | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation
Jumbo frames (Max. 10,240 bytes) | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Maximum power dissipation for nominal condition | 4.8 W | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC | Supply voltage range | 10 V DC ... 60 V DC |
Residual ripple | 3.6 V | Max. current consumption | 580 mA (10 V DC) |
Typical current consumption | 200 mA (at U | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 7 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -10 °C ... 60 °C |
Ambient temperature (storage/transport) | -10 °C ... 70 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 62 kPa ... 108 kPa (up to 4850 m above mean sea level) | Air pressure (storage/transport) | 62 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Status display | LEDs: U |
Specifications may be subject to change without notice
