Product Model

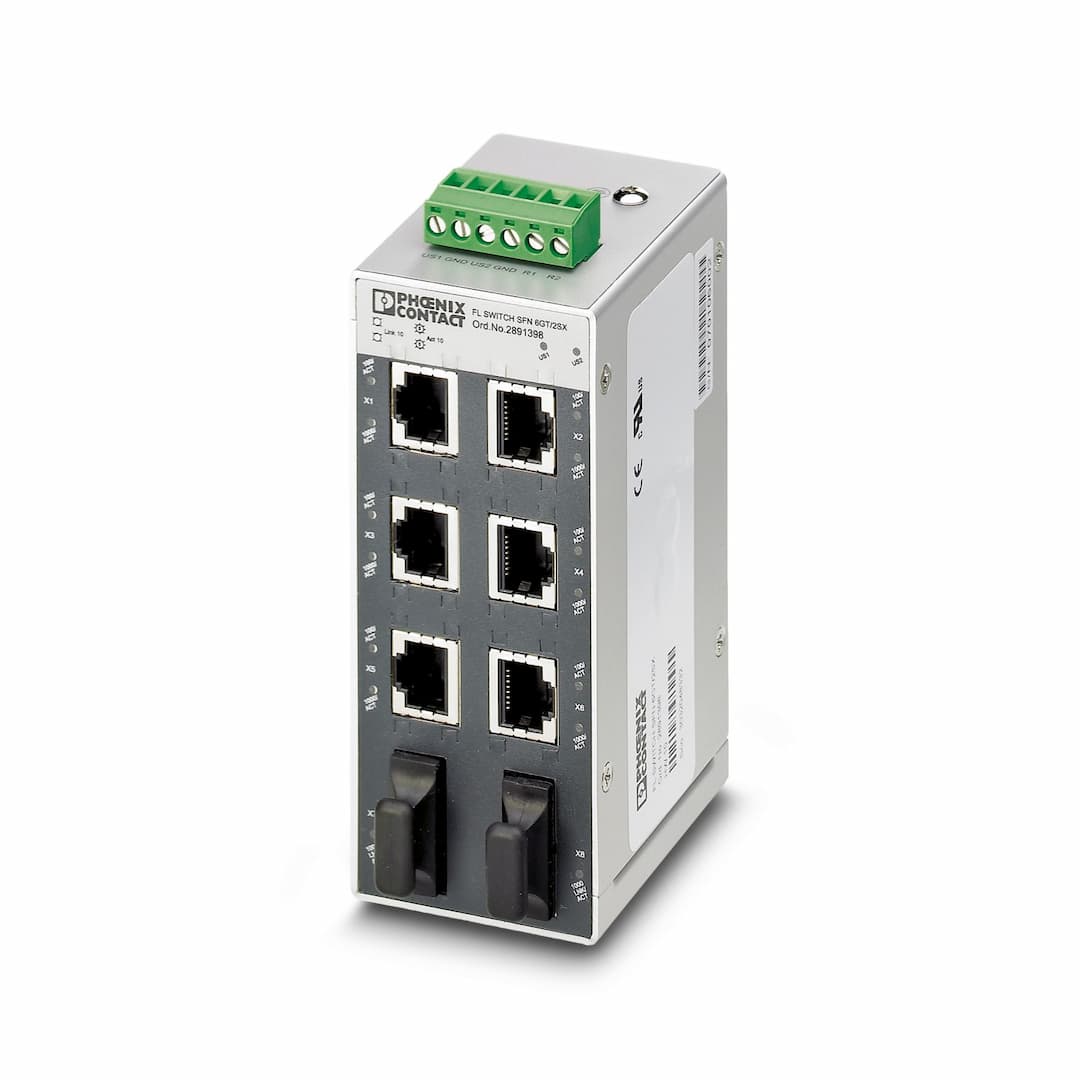

FL SWITCH SFN 6GT/2SX
Selling Points
- 1Supports transmission speeds of 10/100/1000 Mbps on all RJ45 ports.
- 2Supports frame sizes up to 9600 bytes/frame for efficient data transfer.
- 3Includes relay contact for alarm processing of voltage states, enhancing reliability.
- 4Simplifies installation with auto negotiation and autocrossing detection.
- 5Features local diagnostic indicators with LEDs and an aluminum housing for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 50 mm | Height | 120 mm |
Depth | 70 mm | Housing material | Aluminum |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | No. of channels | 6 (RJ45 ports) |
Connection method | SC | Transmission speed | 1000 Mbps (full duplex) |
Transmission physics | multi-mode fiberglass | Transmission length | 220 m (Fiberglass 62.5/125)
550 m (Fiberglass 50/125) |
Wavelength | 850 nm | No. of channels | 2 (SC multi-mode) |
Connection method | Plug-in/screw connection via COMBICON | Product type | Switch |
Product family | Unmanaged Switch SFN | Type | Block design |
MTTF | 36.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Signal contact control voltage | Monitoring of the redundant supply voltage |
PROFINET conformance class | Conformance-Class A | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation
Jumbo frames (max. 9,600 bytes) | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Local diagnostics | US1/2 Supply voltage Green LED
100/ACT Link status/data transmission Yellow LED
1000/ACT Link status/data transmission Yellow LED | Maximum power dissipation for nominal condition | 8.4 W |
Test section | 500 V DC 1 min | Transmission medium | Copper
FO |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 9 V DC ... 32 V DC |
Residual ripple | 3.6 V | Typical current consumption | 350 mA (at U |
Signal contact control voltage | Monitoring of the redundant supply voltage | Connection name | Power supply |
Connection method | Pluggable COMBICON screw connections | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 75 °C | Ambient temperature (storage/transport) | -35 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Status display | LEDs: U |
Specifications may be subject to change without notice
