Product Model

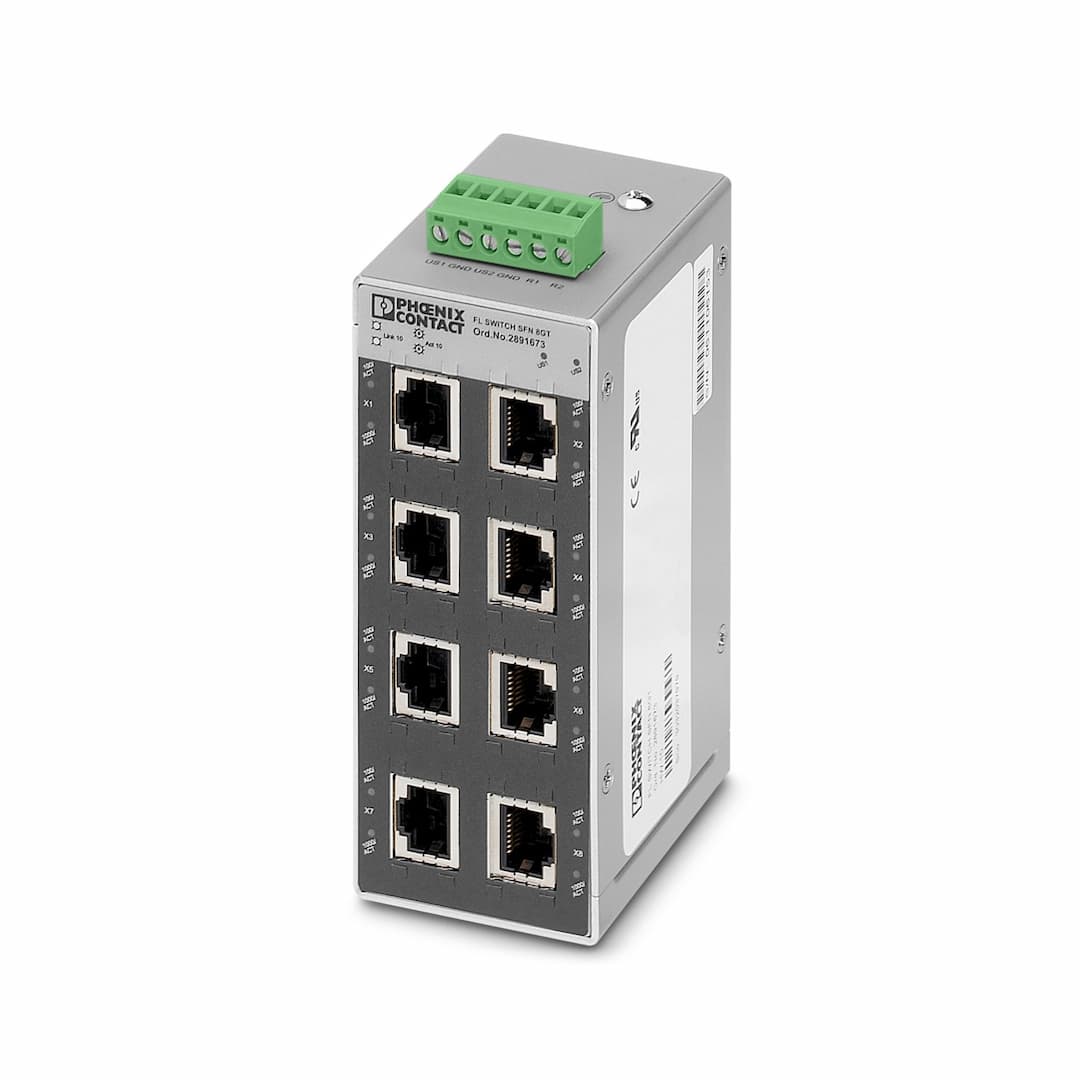

FL SWITCH SFN 8GT
Selling Points
- 1Aluminum housing with IP20 protection for long-lasting performance in demanding environments.
- 2Standard DIN rail mounting simplifies setup in control panels.
- 310/100/1000 Mbps transmission speeds ensure fast and efficient data communication.
- 4Screw connection method provides secure and stable connectivity.
- 5Includes relay contact, local diagnostic indicators with LEDs, and autocrossing function for versatile industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 50 mm | Height | 120 mm |
Depth | 70 mm | Note on application | Only for industrial use |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
No. of channels | 8 (RJ45 ports) | Connection method | Plug-in/screw connection via COMBICON |
Product type | Switch | Product family | Unmanaged Switch SFN |
Type | Block design | MTTF | 55.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Article revision | 09 | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Signal contact control voltage | Monitoring of the redundant supply voltage |
PROFINET conformance class | Conformance-Class A | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation
Jumbo frames (max. 9,600 bytes) | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Local diagnostics | US1/2 Supply voltage Green LED
100/ACT Link status/data transmission Yellow LED
1000/ACT Link status/data transmission Yellow LED | Maximum power dissipation for nominal condition | 10.32 W |
Test section | 500 V DC 1 min | Transmission medium | Copper
FO |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 9 V DC ... 32 V DC |
Residual ripple | 3.6 V | Typical current consumption | 430 mA (at U |
Signal contact control voltage | Monitoring of the redundant supply voltage | Connection name | Power supply |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
Conformance | CE-compliant | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Status display | LEDs: U |
