Product Model

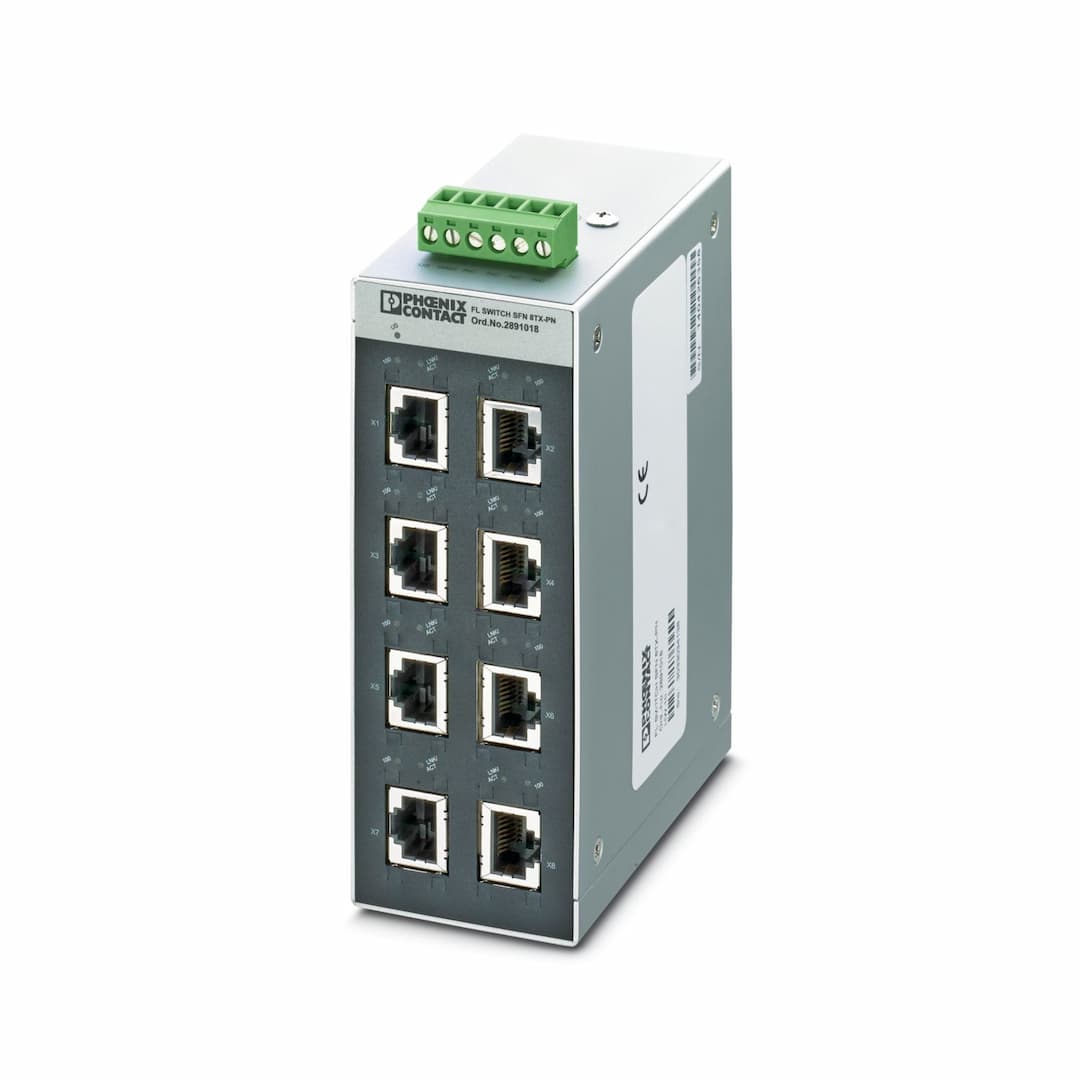

FL SWITCH SFN 8TX-PN
Selling Points
- 1Eight RJ45 Ports for Versatile Connectivity
- 2Automatic Data Transmission Speed Detection (10/100 Mbps)
- 3Multicast Filter Blocks PROFINET PTCP-Delay Traffic
- 4Narrow Housing Design for Universal Remote Use
- 5DIN Rail Mounting and IP20 Protection
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 50 mm | Height | 130 mm |
Depth | 100 mm | Note on application | Only for industrial use |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
No. of channels | 8 (RJ45 ports) | Product type | Switch |
Product family | Unmanaged Switch SFN | Type | Block design |
MTTF | 128 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Article revision | 02 |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | PROFINET conformance class | Conformance-Class A |
Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Maximum power dissipation for nominal condition | 3.36 W |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC |
Supply voltage range | 9 V DC ... 32 V DC | Residual ripple | 3.6 V |
Typical current consumption | 140 mA (at U | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Status display | LEDs: U |
Specifications may be subject to change without notice
