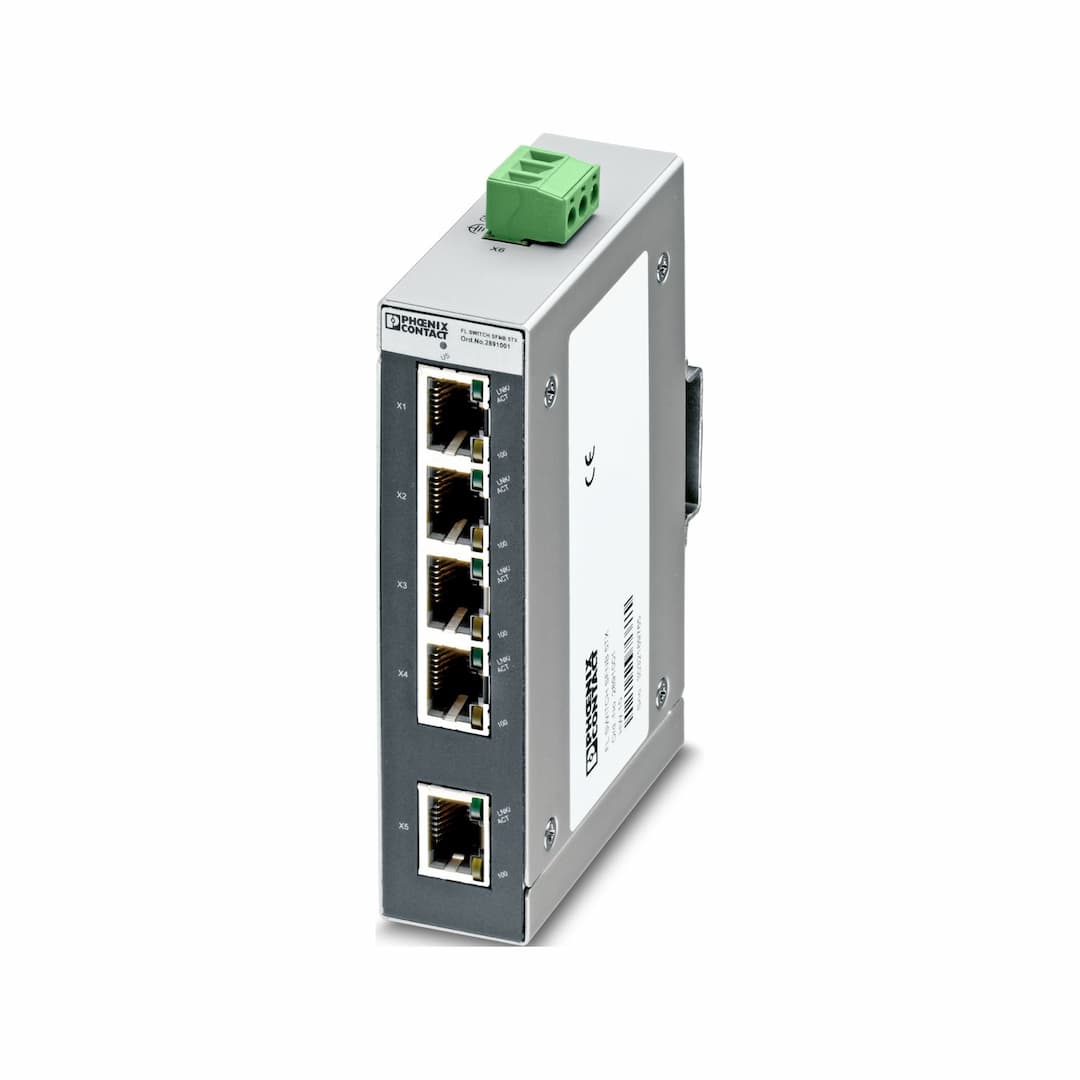

FL SWITCH SFNB 5TX-PNE
Selling Points
- 1Auto Negotiation and Autocrossing: Simplifies installation and setup with automatic detection of data transmission speed and autocrossing function.
- 2Local Diagnostic Indicators: Equipped with LEDs for real-time status and diagnostic monitoring.
- 3Quality of Service (QoS): Prioritizes EtherNet/IP™-based traffic over standard traffic for enhanced network performance.
- 4Robust Design: Compliant with IEEE 802.3 and supports 10/100 Mbps transmission speeds on RJ45 ports.
- 5Environmental Durability: Operates in a wide ambient temperature range (-10 °C to 60 °C) and has a high MTTF of 173.5 years.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 28 mm | Height | 110 mm |
Depth | 70 mm | Note on application | Only for industrial use |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 5 (RJ45 ports) | Product type | Switch |
Product family | Unmanaged Switch SFNB | Type | Block design |
MTTF | 360.5 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | EtherNet/IP™ supported protocols | EtherNet/IP™ |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | PROFINET conformance class | Conformance-Class A |
MAC address table | 1k | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Maximum power dissipation for nominal condition | 4.44 W | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC | Supply voltage range | 12 V DC ... 48 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 345 mA (at 12 V DC) | Typical current consumption | 185 mA (at U |
Connection name | Power supply | pluggable | yes |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -10 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion B
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A |
Noise immunity | EN 61000-6-2 | Noise emission | EN 61000-6-4 |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Status display | LEDs: U |
