Product Model

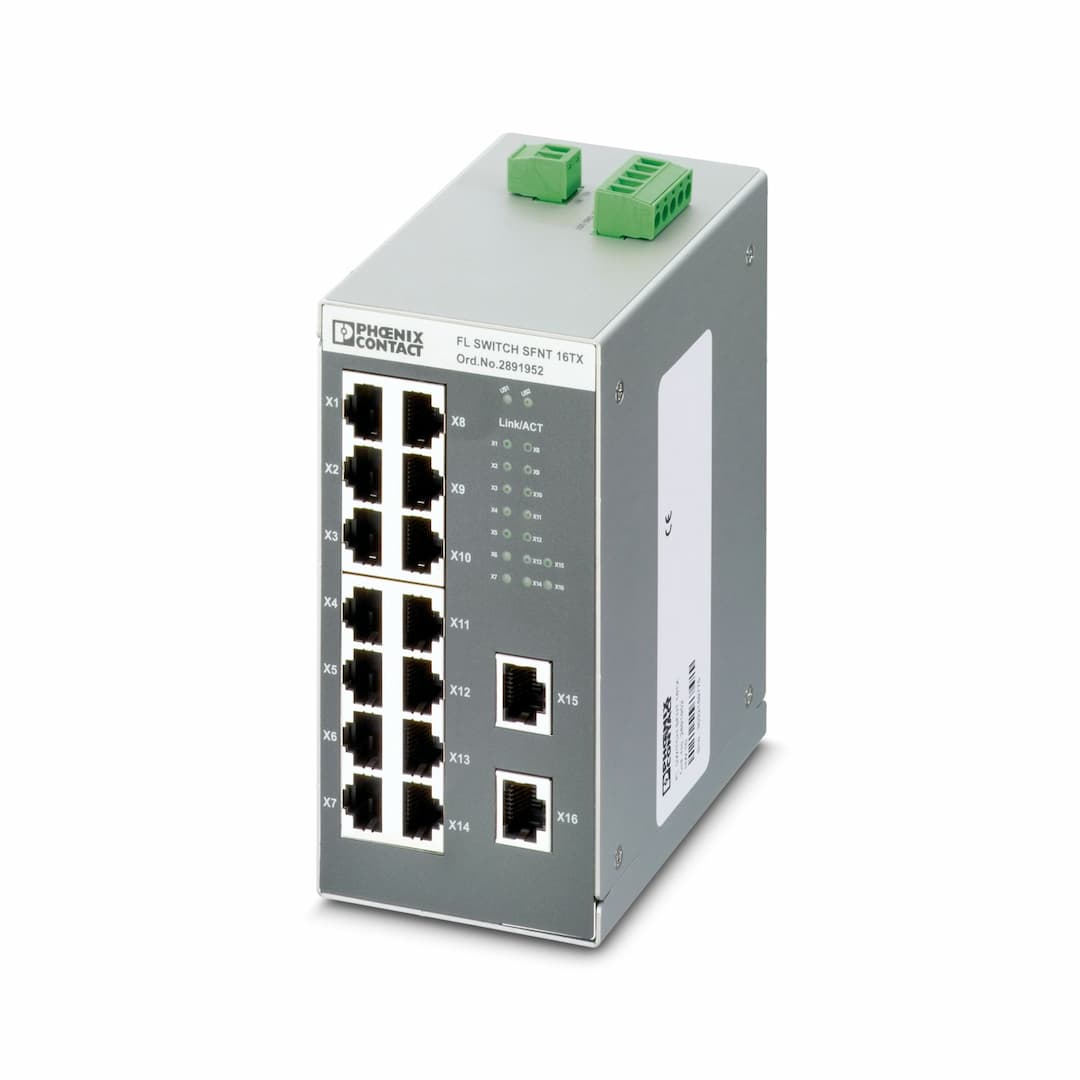

FL SWITCH SFNT 16TX
Selling Points
- 1Works in extreme environments from -40°C to +75°C.
- 2Supports 16 fast Ethernet ports for reliable connectivity.
- 3Automatically detects data transmission speed of 10/100 Mbps.
- 4Features redundant input voltage with remote alarming for added reliability.
- 5Constructed with aluminum housing and IP20 protection for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 70 mm | Height | 135 mm |
Depth | 110 mm | CCCex note | Use in potentially explosive areas is not permitted in China. |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m (per segment) | No. of channels | 16 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged Switch SFNT |
Type | Block design | MTTF | 55.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Article revision | 08 | Protection class | III (VDE 0106, IEC 60536) |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store-and-forward switching mode, includes alarm contacts | Signal contact control voltage | 24 V DC |
Signal contact control current | 1 A | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store-and-forward switching mode, includes alarm contacts |
Local diagnostics | US Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Yellow LED | Maximum power dissipation for nominal condition | 8.4 W |
Test section | 500 V DC 1 min | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 12 V DC ... 48 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 700 mA (at 12 V DC) | Typical current consumption | 350 mA (at U |
Signal contact control voltage | 24 V DC | Signal contact control current | 1 A |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 30 ... 12 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Shock | 25g, in accordance with IEC 60068-2-27 | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 62 kPa ... 108 kPa (up to 4160 m above mean sea level) | Air pressure (storage/transport) | 62 kPa ... 108 kPa (up to 4160 m above mean sea level) |
Conformance | CE-compliant | ATEX | II 3 G Ex nA nC IIC T4 Gc |
EU-type examination certificate | DEMKO 16 ATEX 1617X | IECEx | Ex nA nC IIC T4 Gc |
IECEx certificate | IECEx UL 16.0093X | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 |
Noise immunity | EN 61000-6-2 | Noise emission | EN 61000-6-4 |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store-and-forward switching mode, includes alarm contacts | Status display | LEDs: U |
Specifications may be subject to change without notice
