Product Model

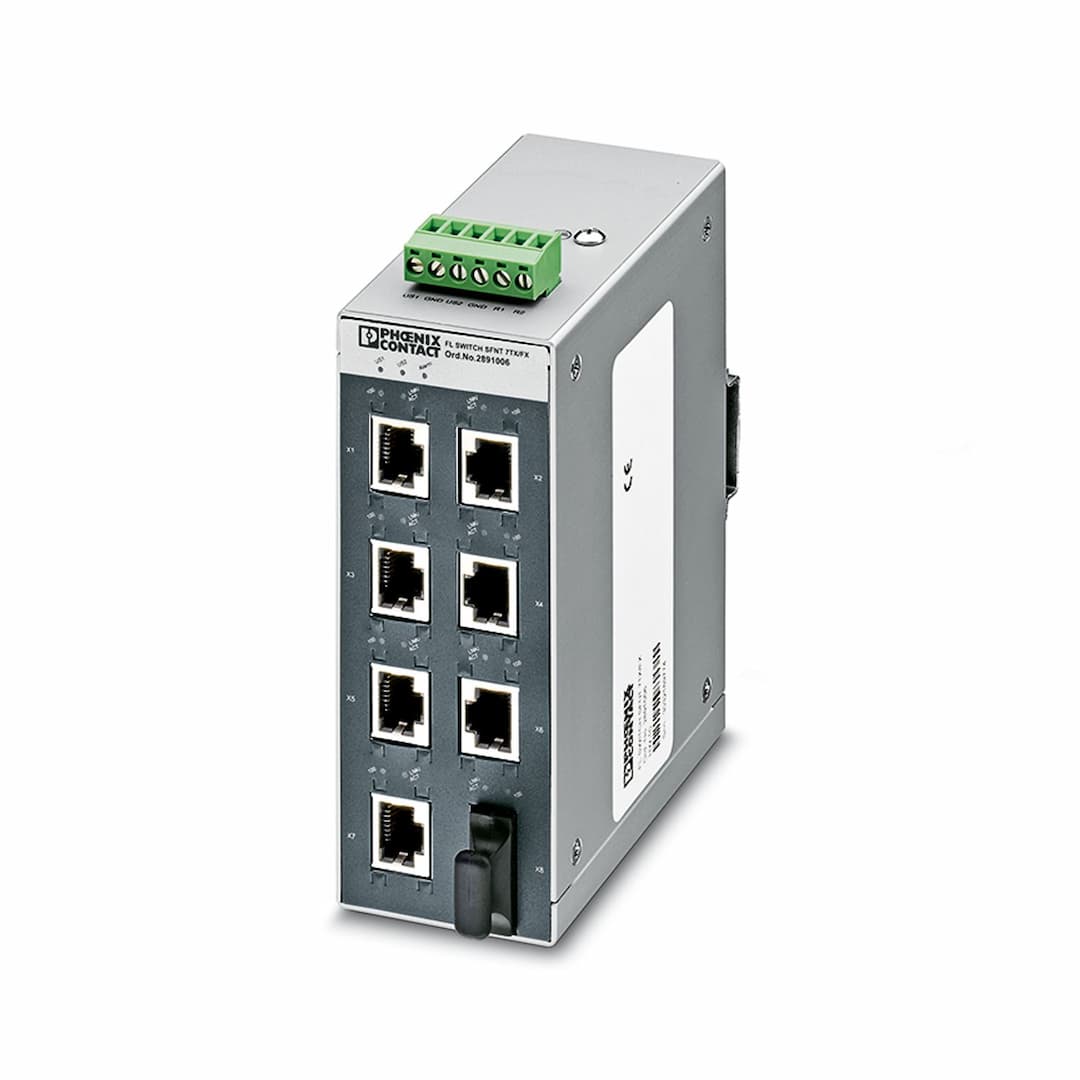

FL SWITCH SFNT 7TX/FX
Selling Points
- 1Reliable Industrial Communication: Designed for robust industrial environments with 7 RJ45 ports and 1 FO port.
- 2Efficient Transmission: Supports 10/100 Mbps transmission speeds in SC-D format for reliable data transfer.
- 3Autonegotiation and Autocrossing: Automatically detects data transmission rates and supports autocrossing function.
- 4Durable Construction: Built with aluminum housing, ensuring durability and resistance to harsh conditions.
- 5Comprehensive Warranty: Backed by the Phoenix Contact guarantee, providing peace of mind for your industrial network setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 50 mm | Height | 130 mm |
Depth | 100 mm | CCCex note | Use in potentially explosive areas is not permitted in China. |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 7 (RJ45 ports) | Connection method | SC |
Transmission speed | 100 Mbps (full duplex) | Transmission physics | multi-mode fiberglass |
Transmission length | 12.1 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
7.1 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
3.1 km (fiberglass with F-G 50/125 1.6 dB/km F800) | Wavelength | 1300 nm |
No. of channels | 1 (SC multi-mode) | Product type | Switch |
Product family | Unmanaged Switch SFNT | Type | Block design |
MTTF | 57.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Article revision | 06 |
Basic functions | Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact |
Local diagnostics | US1/2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Yellow LED | Maximum power dissipation for nominal condition | 4.32 W |
Transmission medium | Copper
FO | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 9 V DC ... 32 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 565 mA (@9 V DC) |
Typical current consumption | 180 mA (at U | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 62 kPa ... 108 kPa (up to 4160 m above mean sea level) | Air pressure (storage/transport) | 62 kPa ... 108 kPa (up to 4160 m above mean sea level) |
Conformance | CE-compliant | ATEX | II 3 G Ex nA nC IIC T4 Gc |
EU-type examination certificate | DEMKO 16 ATEX 1617X | IECEx | Ex nA nC IIC T4 Gc |
IECEx certificate | IECEx UL 16.0093X | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact |
Status display | LEDs: U |
Specifications may be subject to change without notice
