Product Model

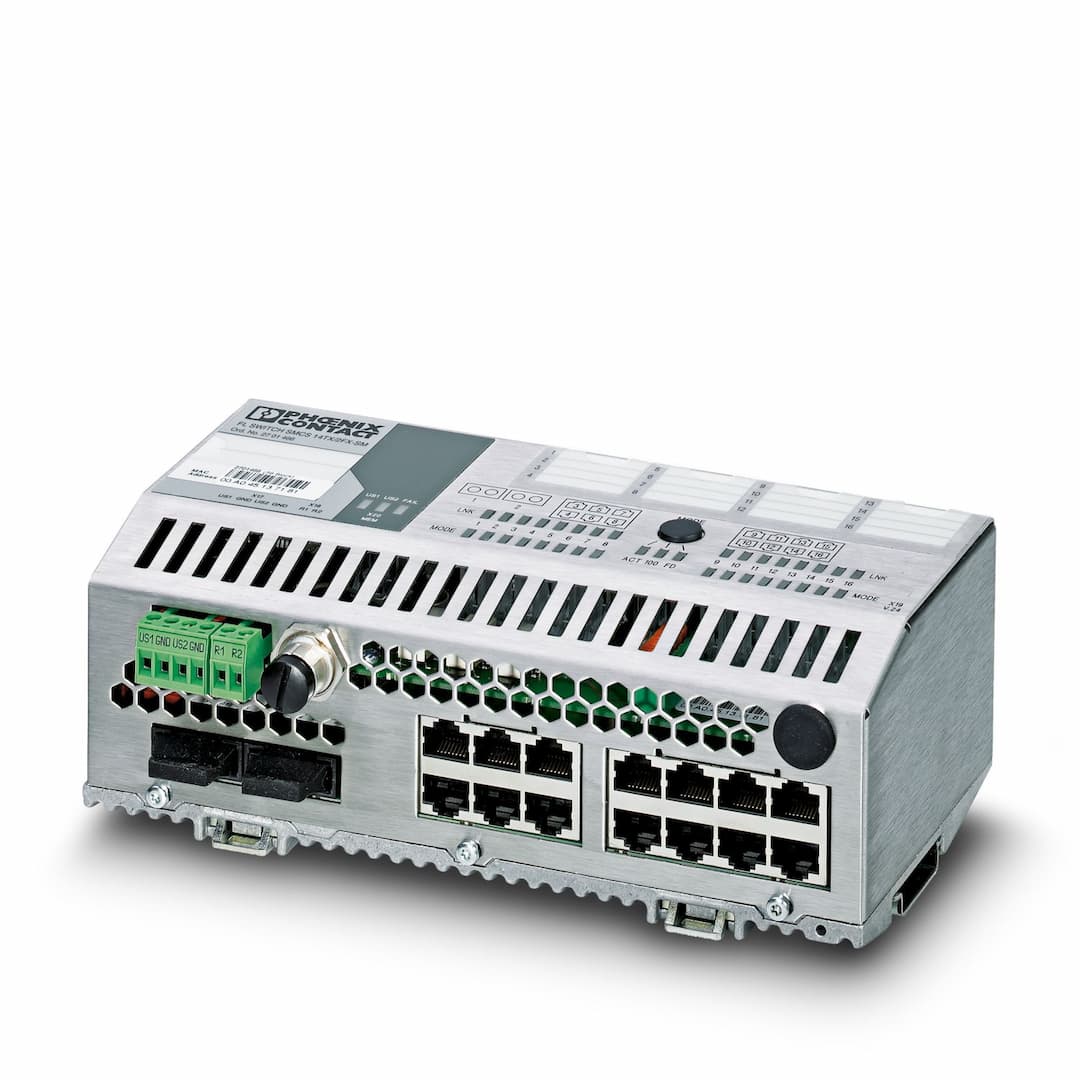

FL SWITCH SMCS 14TX/2FX-SM
Selling Points
- 1Compact Design: The switch is designed for DIN rail mounting, making it space-efficient in industrial settings.
- 2Robust Connectivity: Features 14 Fast Ethernet RJ45 ports and 2 single-mode fiber SC ports for reliable data transmission.
- 3Advanced Management: Supports web-based management, SNMP, and RSTP for easy configuration and network monitoring.
- 4Industrial Grade: Operates in a wide temperature range (-40°C to 70°C) and is resistant to humidity and mechanical stress.
- 5High Availability: Ensures maximum network availability with features like MRP and RSTP for redundant transmission paths.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 214 mm | Height | 110 mm |
Depth | 69 mm | Color | gray aluminum |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 14 (RJ45 ports) |
Connection method | SC | Transmission speed | 100 Mbps (full duplex) |
Transmission physics | Single-mode fiberglass | Transmission length | 36000 m (fiberglass with F-G 9/125 0.36 dB/km)
32000 m (fiberglass with F-G 9/125 0.4 dB/km)
26000 m (fiberglass with F-G 9/125 0.5 dB/km) |
Wavelength | 1310 nm | No. of channels | 2 (SC single mode) |
Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) | Product type | Switch |
Product family | Managed Switch SMCS | Type | Block design |
MTTF | 286.27 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
149.5 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
21.69 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) | Article revision | 05 |
Protection class | III (VDE 0106) | Diagnostic functions | RMON History
N:1-Portmirroring
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
ACD (Address Conflict Detection) |
Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). | Signal contact control voltage | 24 V (typical) |
Signal contact control current | 260 mA (maximum) | PROFINET conformance class | Conformance-Class B |
PROFINET device function | PROFINET device
Fast Startup | Filter functions | Quality of Service (4 priority classes)
Port-Priorisierung
VLAN
IGMP Snooping (128 groups)
IGMP Query
Auto-Query-Port
Extended Multicast Filtering
Static Multicast Filtering |
MAC address table | 16000 | Management | Web-based management (HTTP)
SNMP v1/v2
Serial interface (V.24) |
Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support | Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Supported browsers | Internet Explorer 5.5 or higher | Additional functions | BootP
DHCP-Client |
Time synchronization | SNTP | Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 | Current consumption | 260 mA |
Maximum power dissipation for nominal condition | 6.24 W | Test section | 500 V DC 1 min |
Transmission medium | Copper
FO | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 18 V DC ... 32 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Typical current consumption | 290 mA (at U |
Current consumption | 260 mA | Signal contact control voltage | 24 V (typical) |
Signal contact control current | 260 mA (maximum) | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 7 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C (non-condensing) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Free from substances that could impair the application of coating | Yes | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (electromagnetic fields) Criterion A
IEC 61000-4-4 (burst) Criterion B
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-3 | Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
Supported browsers | Internet Explorer 5.5 or higher | Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Specifications may be subject to change without notice
