Product Model

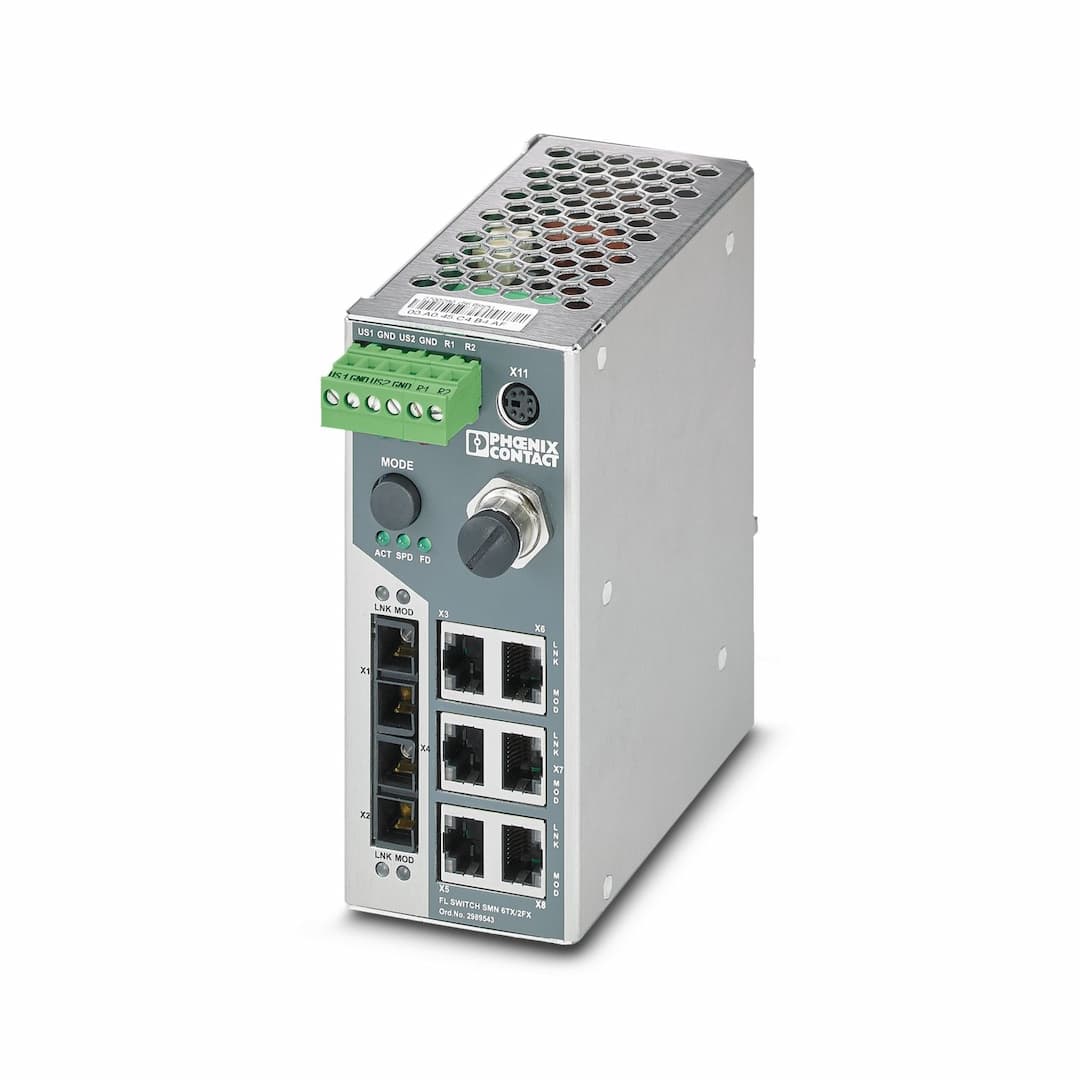

FL SWITCH SMN 6TX/2FX
Selling Points
- 1Industrial-grade reliability: Built to withstand harsh environments with a robust design.
- 2Flexible connectivity: 6 RJ45 ports and 2 fiber optic ports for diverse network configurations.
- 3Effortless installation: Auto negotiation and autocrossing detection simplify setup.
- 4Diagnostic indicators: Local LEDs provide real-time status and diagnostic information.
- 5Durable housing: Constructed from aluminum with a DIN rail mounting type for secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 57 mm | Height | 133 mm |
Depth | 125 mm | Color | gray aluminum |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 6 (RJ45 ports) |
Connection method | SC | Transmission speed | 100 Mbps (full duplex) |
Transmission physics | multi-mode fiberglass | Transmission length | 11000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
2800 m (fiberglass with F-G 50/125 1.6 dB/km F800) |
Wavelength | 1300 nm | Signal LEDs | Data receive, link status |
No. of channels | 2 (SC multi-mode) | Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Product type | Switch | Product family | Managed Switch SMN |
Type | Block design | Diagnostic functions | RMON History
N:1-Portmirroring
LLDP (Link Layer Discovery Protocol)
SNMP-Traps |
Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). | Signal contact control voltage | 24 V (typical) |
Signal contact control current | 100 mA | PROFINET conformance class | Conformance-Class B |
PROFINET device function | PROFINET device
Fast Startup | Filter functions | Quality of Service (4 priority classes)
Port-Priorisierung
VLAN
IGMP Snooping (128 groups)
IGMP Query
Auto-Query-Port
Extended Multicast Filtering
Static Multicast Filtering |
Management | Web-based management (HTTP)
SNMP v1/v2
Serial interface (V.24) | Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support |
Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) | Supported browsers | Internet Explorer 5.5 or higher |
Additional functions | BootP
DHCP-Client | Time synchronization | SNTP |
Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). | Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
Maximum power dissipation for nominal condition | 8.4 W | Transmission medium | Copper
FO |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 18 V DC ... 32 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Typical current consumption | 350 mA (at U | Signal contact control voltage | 24 V (typical) |
Signal contact control current | 100 mA | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 7 mm |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4:2007 + A1:2011 | Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
Supported browsers | Internet Explorer 5.5 or higher | Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Specifications may be subject to change without notice
