Product Model

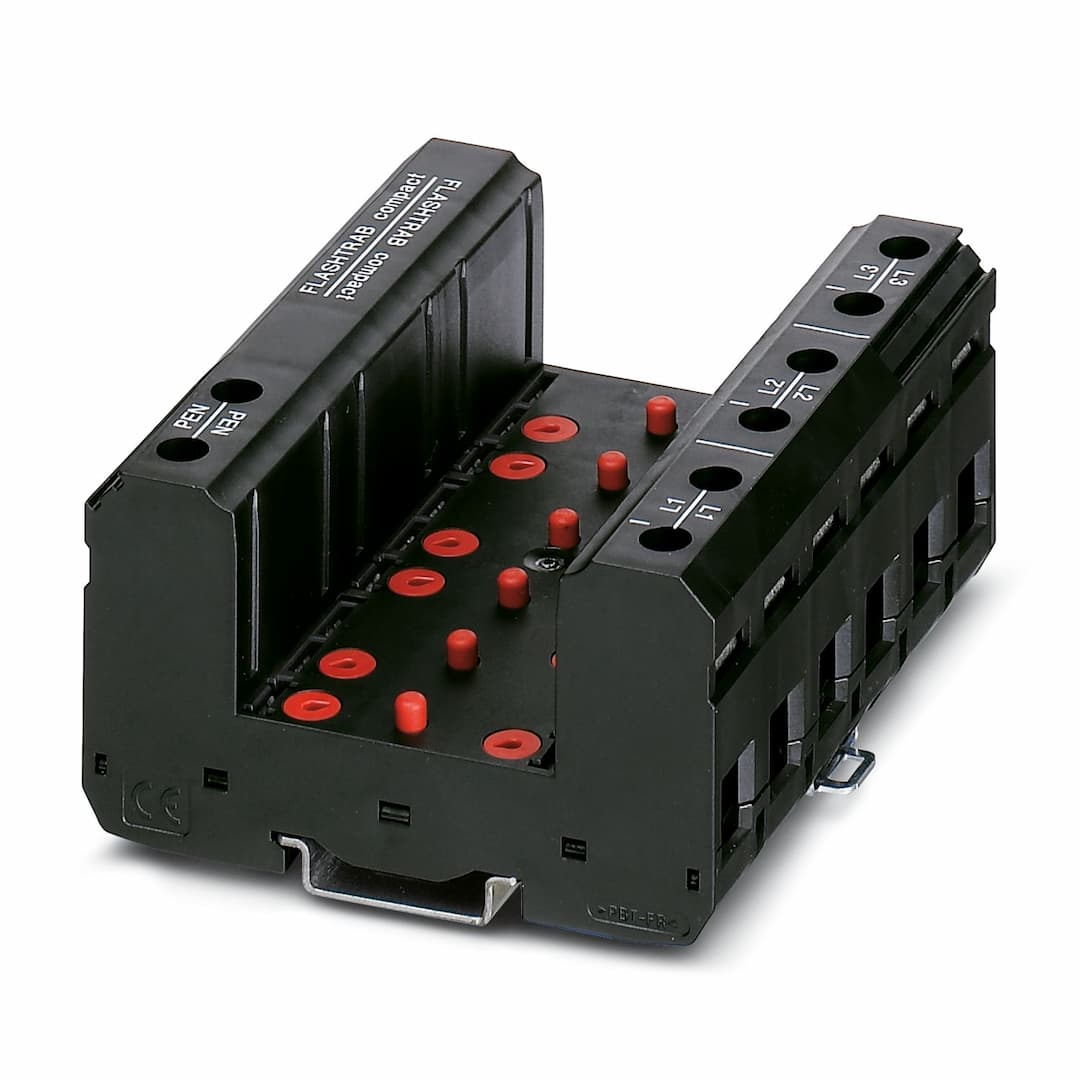

FLT-CP-3C-BE
Selling Points
- 1High Continuous Voltage: Operates at 350 V AC for 230/400 V AC networks.
- 2Remote Indication: Features floating remote indication contact for easy monitoring.
- 3Thermal Disconnect: Includes thermal disconnect devices for each individual plug.
- 4Optical/Mechanical Indication: Provides optical and mechanical status indication for individual arresters.
- 5IEC Compliance: Meets IEC test classification I + II, T1 + T2, and EN type T1 + T2 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Base element | IEC test classification | I + II
T1 + T2 |
Surge protection fault message | Remote indication contact | Overvoltage category | III |
Pollution degree | 2 | Nominal frequency f | 50 Hz (60 Hz) |
Nominal voltage U | 240 V AC | Connection name | Remote fault indicator contact |
Switching function | Changeover contact | Operating voltage | 12 V AC ... 250 V AC
125 V DC (200 mA DC) |
Operating current | 10 mA AC ... 1 A AC
1 A DC (30 V DC) | Connection method | Screw terminal blocks |
Screw thread | M5 | Tightening torque | 4.5 Nm |
Stripping length | 18 mm | Conductor cross section flexible | 2.5 mm² ... 25 mm² |
Conductor cross section rigid | 2.5 mm² ... 35 mm² | Conductor cross section AWG | 13 ... 2 |
Connection method | Plug-in/screw connection via COMBICON | Screw thread | M2 |
Tightening torque | 0.25 Nm | Stripping length | 7 mm |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Flammability rating according to UL 94 | V - 0 |
CTI value of material | 600 | Insulating material | PBT |
Material group | I | Housing material | PBT |
Direction of action | 3L-PEN | Nominal frequency f | 50 Hz (60 Hz) |
Maximum continuous operating voltage U | 350 V AC | Rated load current I | 125 A (< 55 °C) |
Short-circuit current rating I | 25 kA | Max. backup fuse with V-type through wiring | 125 A (gG) |
Max. backup fuse with branch wiring | 315 A (gG) | Degree of protection | IP20 (only when all terminal points are used) |
Ambient temperature (operation) | -40 °C ... -80 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | ≤ 2000 m (asml) | Permissible humidity (operation) | 5 % ... 95 % |
Shock (operation) | 25g | Vibration (operation) | 5g (10 ... 500 Hz) |
Maximum continuous operating voltage MCOV (L-N) | 264 V AC | Nominal frequency | 50/60 Hz |
Operating voltage | 125 V AC | AC operating current | 1.5 A AC |
Tightening torque | 40 lb | Conductor cross section AWG | 12 ... 2 |
Standards/specifications | IEC 61643-11 | Note | 2011 |
Standards/specifications | EN 61643-11 | Note | 2012 |
Mounting type | DIN rail: 35 mm |
Specifications may be subject to change without notice
