Product Model

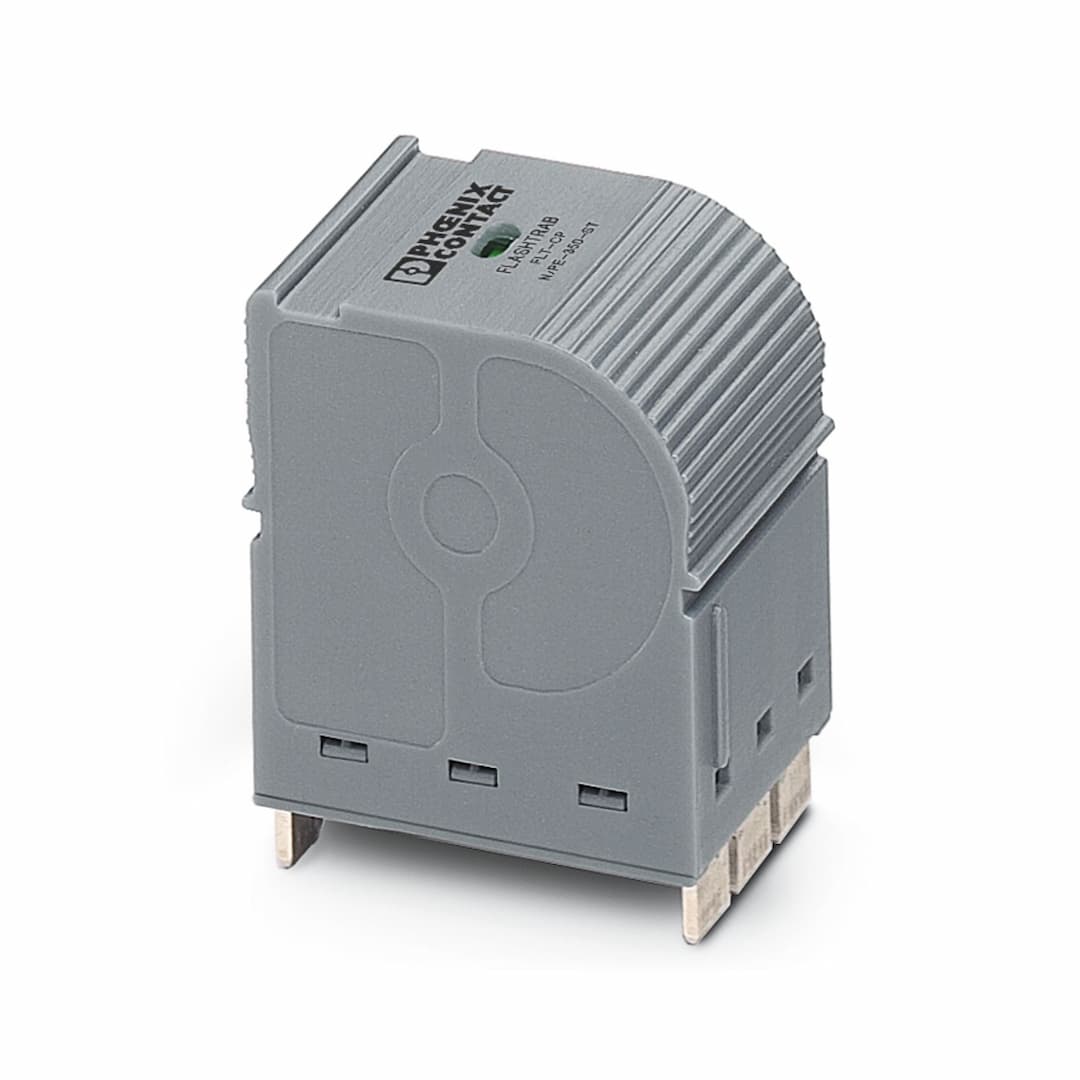

FLT-CP-N/PE-350-ST
Selling Points
- 1Robust Type 1 Surge Protection: Protects against lightning surges with a nominal discharge current of 100 kA.
- 2High Voltage Tolerance: Withstands up to 1.5 kV voltage protection level and 0.8 kV residual voltage.
- 3Compact Design: Measures 35.45 mm in width, 46.6 mm in height, and 56.4 mm in depth.
- 4UL 94 V-0 Flammability Rating: Ensures safety with a high flammability rating.
- 5Easy Installation: Mounts easily on base elements, suitable for TN and TT power distribution systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Replacement plug | IEC test classification | I / II
T1 / T2 |
EN type | T1 / T2 | IEC power supply system | TN
TT |
Type | Male | Number of positions | 1 |
Surge protection fault message | optical | Overvoltage category | III |
Pollution degree | 2 | Nominal frequency f | 50 Hz (60 Hz) |
Connection method | pluggable | Width | 35.45 mm |
Height | 46.6 mm | Depth | 56.4 mm |
Horizontal pitch | 2 Div. | Color | blue grey (RAL 7031) |
Flammability rating according to UL 94 | V-0 | CTI value of material | 600 |
Insulating material | PA 6.6/PBT | Material group | I |
Housing material | PBT | Mode of protection | N-PE |
Direction of action | N-PE | Nominal voltage U | 240 V AC (TN - only N-PE)
240 V AC (TT - only N-PE) |
Nominal frequency f | 50 Hz (60 Hz) | Maximum continuous voltage U | 350 V AC |
Residual current I | ≤ 0.01 mA | Nominal discharge current I | 100 kA |
Impulse discharge current (10/350) µs, charge | 50 As | Impulse discharge current (10/350) µs, specific energy | 2500 kJ/Ω |
Impulse discharge current (10/350) µs, peak value l | 100 kA | Follow current interrupt rating I | 100 A (350 V AC) |
Voltage protection level U | ≤ 1.5 kV | Residual voltage U | ≤ 1.5 kV (at I
≤ 1 kV (at 10 kA)
≤ 0.9 kV (at 5 kA)
≤ 0.8 kV (at 3 kA) |
Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 1.5 kV | TOV behavior at U | 1200 V AC (200 ms / withstand mode) |
Response time t | ≤ 100 ns | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 80 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | ≤ 2000 m (amsl) | Permissible humidity (operation) | 5 % ... 95 % |
Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) | Vibration (operation) | 5g (5 - 500 Hz/2.5 h/X, Y, Z) |
Maximum continuous operating voltage MCOV (N-G) | 264 V AC | Nominal discharge current I | 20 kA |
Mode of protection | N-G | Power distribution system | Split phase |
Nominal frequency | 50/60 Hz | Measured limiting voltage MLV (N-G) | 1080 V |
Follow current (L-G) | 200 A (264 V AC) | SPD Type | 4CA |
Standards/regulations | EN 60664-1 / IEC 60664-1 / IEC 61643-11 | Standards/specifications | IEC 61643-11 |
Note | 2011 | Standards/specifications | EN 61643-11 |
Note | 2012 | Mounting type | on base element |
