Product Model

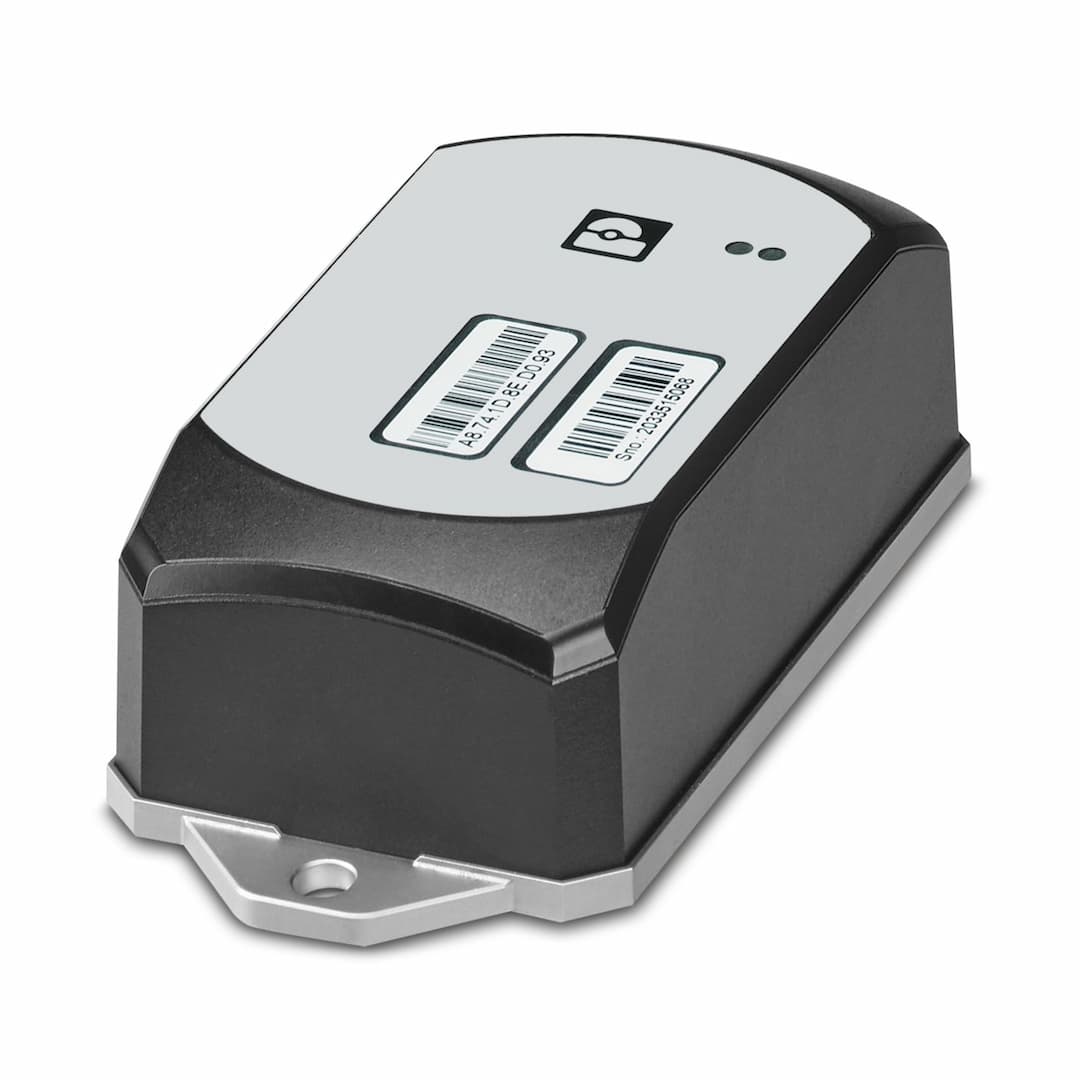

FL TIMESERVER NTP
Selling Points
- 1High availability thanks to automatic switching between GPS, Galileo, and GLONASS.
- 2Robust IP68 housing with integrated antenna for easy installation outside the control cabinet.
- 3Fast, inexpensive connection via Power over Ethernet (PoE) or 24 V DC.
- 4Precise position determination via web-based management, SNMP, NMEA, or JSON streaming.
- 5Extended temperature range of -40 °C to +70 °C for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Wireless element |
Operating mode | NTP server (NTPv4) stratum 1 | MTBF | 60 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
168 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
316 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
Article revision | 03 | Maximum power dissipation for nominal condition | 2.5 W |
Response time | ≤ 2 ms (NTP, dependent on Ethernet network and available network capacity)
1 s (Polling rate of NMEA position data via TCP) | Switch-on time | ≤ 100 s (Time until sat fix (cold restart, incl. device start))
~ 40 s (Device start) |
Accuracy realtime clock | <15 seconds/month in offline mode (no GNSS reception or Internet connection, no temperature fluctuations)
<60 seconds/month in offline mode (no GNSS reception or Internet connection, with temperature fluctuations) | Connection technology | COMBICON |
Connection method | Push-in spring connection | Note on the connection method | Recommended conductor cross section: 0.75 mm²
Recommended ferrule: connection length 10 mm
Recommended crimping pliers: trapezoidal or square |
Designation | 1966101 FMC 1,5/ 3-STF-3,5 | Number of positions | 2 |
Cross section range AWG | 24 ... 16 (Use copper wires rated 75° C (UL)) | Supply voltage | 24 V DC (SELV) |
Supply voltage range | 10 V DC ... 30 V DC (SELV)
Power over Ethernet (PoE IEEE 802.3af or higher) | Current consumption | ≤ 104 mA (24 V)
max. 175 mA (UL, 10 V)
max. 60 mA (PoE) |
Power consumption | ≤ 2.5 W | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible [AWG] | ... 16 | Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | Stripping length | 10 mm |
Configuration | Web-based management | Number of interfaces | 1 |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | No. of channels | 1 (RJ45 port) |
Protocols supported | SNTP
NTP (v1, v2, v3, v4, without authentication)
NMEA 0183 (via TCP)
HTTP
HTTPS
SNMP
SSH
DHCP
VLAN
Telnet | Designation | GNSS (GPS / Galileo / GLONASS) |
Antenna connection method | (Internal) | Frequency | 1575.42 MHz (GPS, L1C/A)
1602 MHz +k * 562,5 kHz (GLONASS, L1OF)
1575.42 MHz (Galileo, E1-B/C) |
Accuracy class | CEP | Width | 62.8 mm |
Height | 36.5 mm | Depth | 113.2 mm |
Note on dimensions | Outside dimensions | Color (Housing) | black (RAL 9005) |
Material (Housing) | Polycarbonate | Material (Base plate) | Die-cast zinc, nickel-plated |
Ambient temperature (operation) | -40 °C ... 70 °C | Degree of protection | IP68 (Manufacturers declaration, not evaluated by UL)
UL/CSA: Enclosure Type Rating 1 (indoor use) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | UL 61010 Listed | Mounting type | Outdoors in the open |
Assembly note | Outside of control cabinets or other metal housings |
Specifications may be subject to change without notice
