Product Model

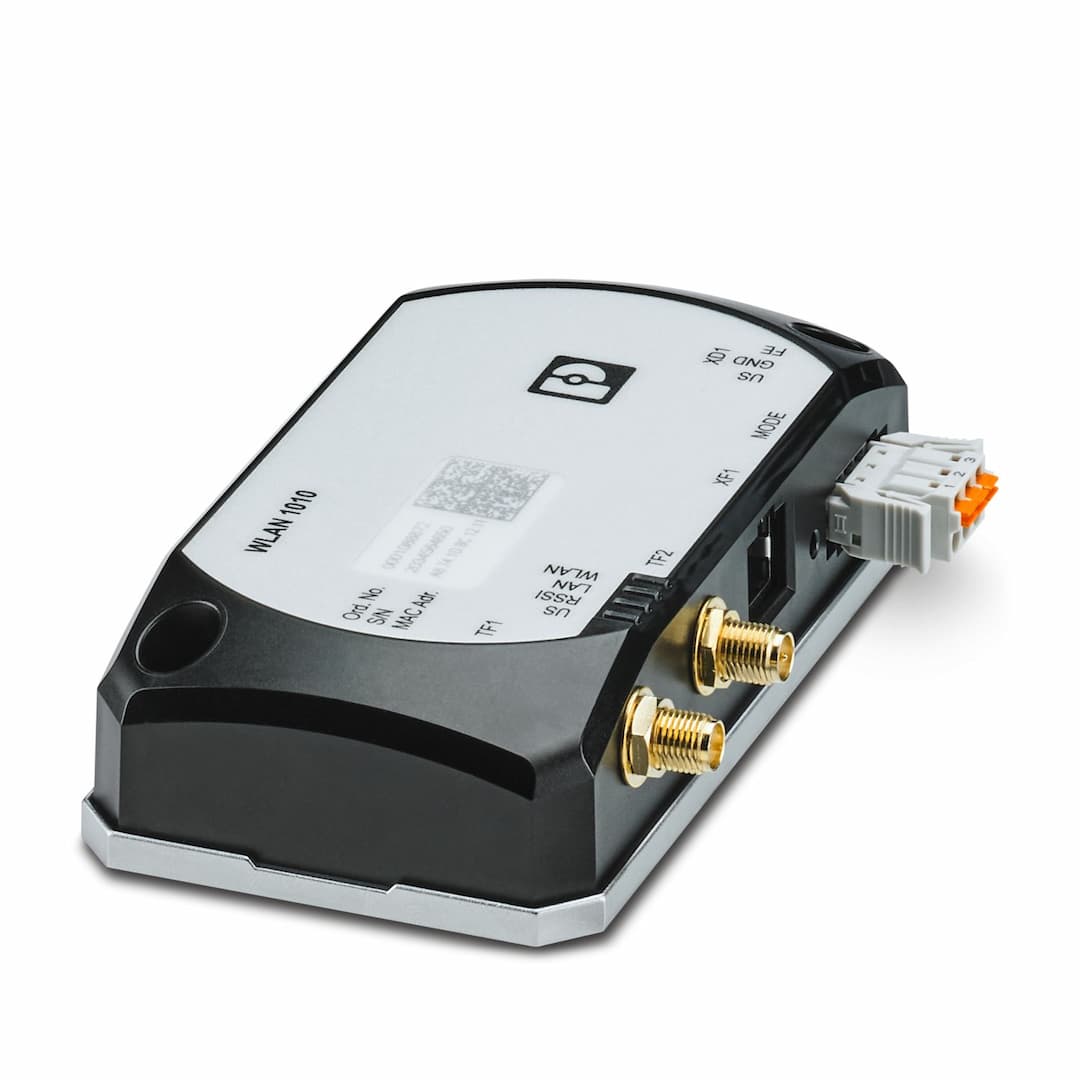

FL WLAN 1011
Selling Points
- 1Dual Frequency Support: Operates on 2.4 GHz and 5 GHz frequencies for enhanced connectivity.
- 2High-Gain Antennas: Equipped with 2 external antennas for improved signal strength and range.
- 3IP20 Protection: Designed with IP20 protection for reliable operation in harsh industrial environments.
- 4Web-Based Management: Features web-based management and automated CLI for easy configuration and monitoring.
- 5Secure Connectivity: Supports 802.11i, WPA PSK, WPA2 AES, and MAC filter for secure wireless connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product type | Wireless module | Application | Ethernet |
Type | Stand-Alone | Article revision | 04 |
Pollution degree | 2 | Number | 1 |
Type | IEEE 802.11 a/b/g/n 2.4 GHz and 5 GHz to 300 Mbps | Assembly note | Permanently installed |
Maximum power dissipation for nominal condition | 3.6 W | Connection technology | COMBICON |
Connection method | Push-in spring connection | Note on the connection method | Recommended conductor cross section: 0.75 mm²
Recommended ferrule: connection length 10 mm
Recommended crimping pliers: trapezoidal or square |
Designation | 1128752 FMC 1,5/ 3-ST-3,5-RF GY35BD1-3 | Number of positions | 3 |
Cross section range AWG | 24 ... 16 (Use copper wires rated 75° C (UL)) | Supply voltage | 24 V DC (SELV) |
Supply voltage range | 9 V DC ... 32 V DC (PELV/SELV) | Supply current | typ. 150 mA (at 24 V DC) |
Current consumption | max. 550 mA (at 9 V DC) | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 10 mm |
Number | 2 | Configuration | Web-based management, automated CLI |
Quality of service (QoS) | Yes | Security | 802.11i
WPA PSK (preshared key)
WPA2
AES
TKIP
MAC filter
Supports 802.1X/RADIUS |
Wireless licenses | USA, Canada | Number of interfaces | 1 |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | No. of channels | 1 (RJ45 ports) |
Designation | Wireless LAN | Antenna connection method | RSMA (female) |
Frequency band | 2.4 GHz
5 GHz | Wireless standard | WLAN
IEEE 802.11
a
b
g
n
Wi-Fi 4 |
Transmission power | max. 19 dBm (with two antennas) | Number of wireless interfaces | 1 IEEE 802. 11 a/b/g/n |
Wireless modules that can be connected | 10 (In Access Point mode max. 2 SSIDs) | Width | 63 mm |
Height | 26 mm | Depth | 113 mm |
Note on dimensions | Installed dimensions without connector | Material base plate | Die-cast zinc, nickel-plated |
Housing material | Polycarbonate, PC | Ambient temperature (operation) | 0 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (operation) | 800 hPa ... 1080 hPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV |
Discharge in air | ± 8 kV | Indirect discharge | ± 6 kV |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1000 MHz |
Test field strength | 10 V/m | Frequency range | 1000 MHz ... 6000 MHz |
Test field strength | 3 V/m | Standards/regulations | EN 61000-4-4 |
Comments | ±2.2 kV | Standards/regulations | EN 61000-4-5 |
Signal | ± 0.5 kV (symmetrical)
± 1 kV (asymmetrical) | Standards/regulations | EN 61000-4-6 |
Frequency range | 0.15 MHz ... 80 MHz | Voltage | 10 V |
Standards/regulations | EN 55022 | Test result | Class B |
Standards/regulations | FCC/CFR 47, Part 15.109 | Test result | Class A |
Standards/regulations | ICES-003 Issue 6 section 6.1 | Test result | Class B |
Standards/regulations | ICES-003 Issue 6 section 6.2 | Test result | Class A |
Mounting type | Wall mounting, optional DIN rail adapter | Assembly note | Antennas not included in scope of supply |
