Product Model

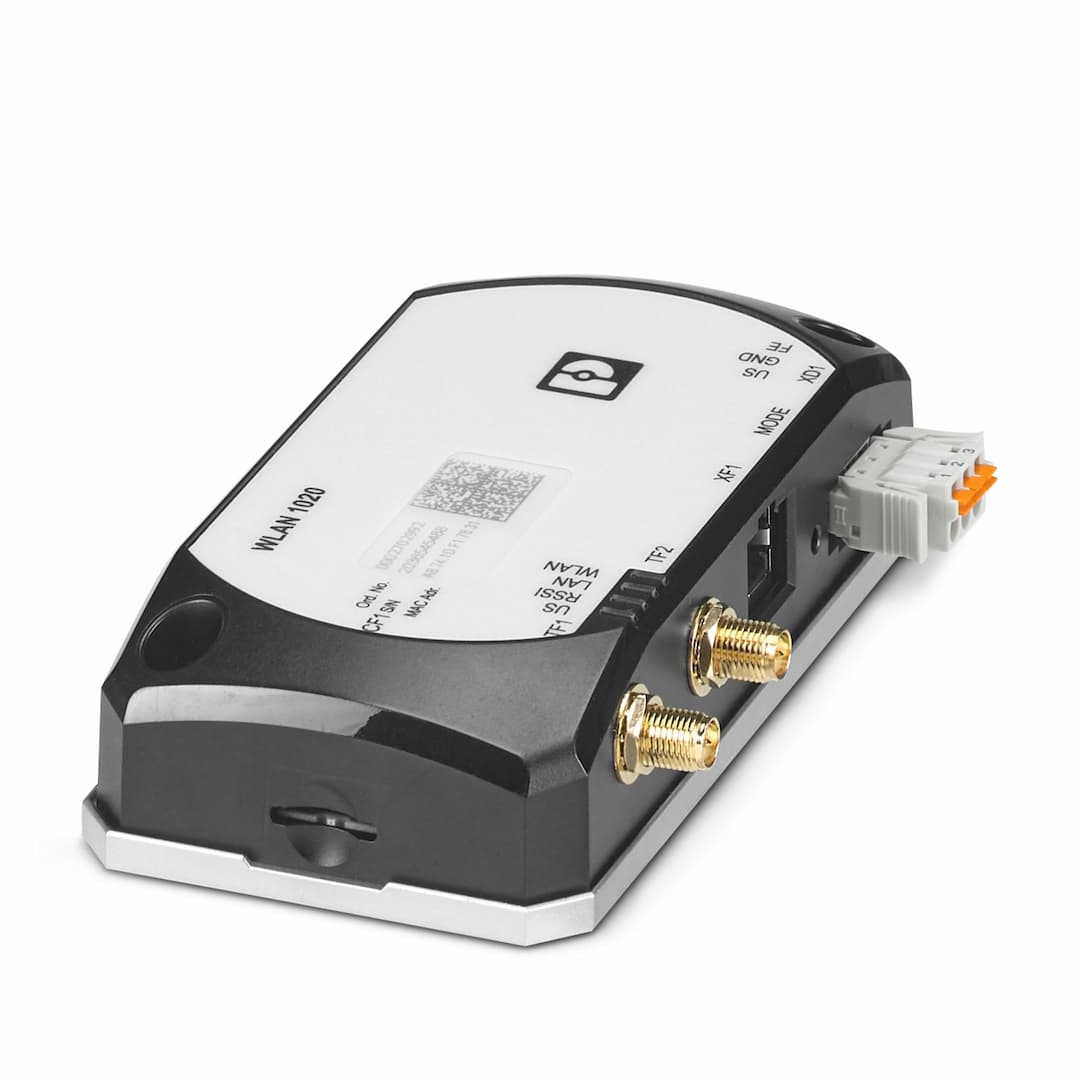

FL WLAN 1020
Selling Points
- 1High-Performance Wi-Fi 6 Technology: Supports the latest Wi-Fi 6 standard for faster data transfer rates and improved reliability.
- 2Compact IP20 Housing: Designed for industrial use with a compact IP20 housing, ensuring durability and protection.
- 32 External Antenna Connections: Equipped with 2 RSMA-F antenna connections for optimal signal reception and transmission.
- 4Wide Operating Temperature Range: Operates between -30°C and +60°C, suitable for various industrial environments.
- 5Secure and Reliable Communication: Features secure communication protocols like 802.11i, WPA2, AES, and MAC filtering for enhanced security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Wireless module |
Type | Stand-Alone | Article revision | 03 |
Overvoltage category | II (IEC 61010-1) | Pollution degree | 2 |
Type | IEEE 802.11 a/b/g/n/ac/ax 2,4 GHz, 5 GHz > 600 MBit/s | Assembly note | Permanently installed |
Maximum power dissipation for nominal condition | 4.3 W | Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min
24 V supply/internal communications 500 V DC 1 min |
Connection technology | COMBICON | Connection method | Push-in spring connection |
Note on the connection method | Recommended conductor cross section: 0.75 mm²
Recommended ferrule: connection length 10 mm
Recommended crimping pliers: trapezoidal or square | Designation | 1128752 FMC 1,5/ 3-ST-3,5-RF GY35BD1-3 |
Number of positions | 3 | Cross section range AWG | 24 ... 16 |
Supply voltage | 24 V DC (SELV) | Supply voltage range | 9 V DC ... 32 V DC (PELV/SELV) |
Supply current | typ. 180 mA (at Unom/ 20°C/ max. data throughput) | Current consumption | max. 800 mA (At Umin/Tmax/max. data throughput) |
Connection method | Push-in spring connection | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Stripping length | 10 mm | Number | 2 |
Note on the connection method | MIMO | Configuration | Web-based management, automated CLI, REST API |
Quality of service (QoS) | Yes | Wireless licenses | Europe, additional countries in the e-shop |
Country support | Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Italy
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Slovakia
Slovenia
Spain
Czech Republic
Hungary
Cyprus (rep.) | Number of interfaces | 1 |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | No. of channels | 1 (RJ45 ports) |
Designation | Wireless LAN | Antenna connection method | RSMA (female) |
Frequency band | 2.4 GHz
5 GHz | Wireless standard | WLAN
IEEE 802.11
a
b
g
n
ac
ax
Wi-Fi 6 |
Transmission power | max. 19.5 dBm (with two antennas) | Number of wireless interfaces | 1 IEEE 802.11 a/b/g/n/ac/ax |
Wireless modules that can be connected | 10 (In access point mode) | Width | 63 mm |
Height | 26 mm | Depth | 113 mm |
Note on dimensions | Installed dimensions without connector | Material base plate | Die-cast zinc, nickel-plated |
Housing material | Polycarbonate, PC | Ambient temperature (operation) | -30 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (operation) | 800 hPa ... 1080 hPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 660 hPa ... 1080 hPa (Up to 3500 m above mean sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV |
Discharge in air | ± 8 kV | Indirect discharge | ± 6 kV |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1000 MHz |
Test field strength | 10 V/m | Frequency range | 1000 MHz ... 6000 MHz |
Test field strength | 3 V/m | Standards/regulations | EN 61000-4-4 |
Comments | ±2.2 kV | Standards/regulations | EN 61000-4-5 |
Signal | ± 0.5 kV (symmetrical)
± 1 kV (asymmetrical) | Standards/regulations | EN 61000-4-6 |
Frequency range | 0.15 MHz ... 80 MHz | Voltage | 10 V |
Standards/regulations | EN 55032 | Test result | Class B |
Mounting type | Wall mounting, optional DIN rail adapter | Assembly note | Antennas not included in scope of supply |
Specifications may be subject to change without notice
