Product Model

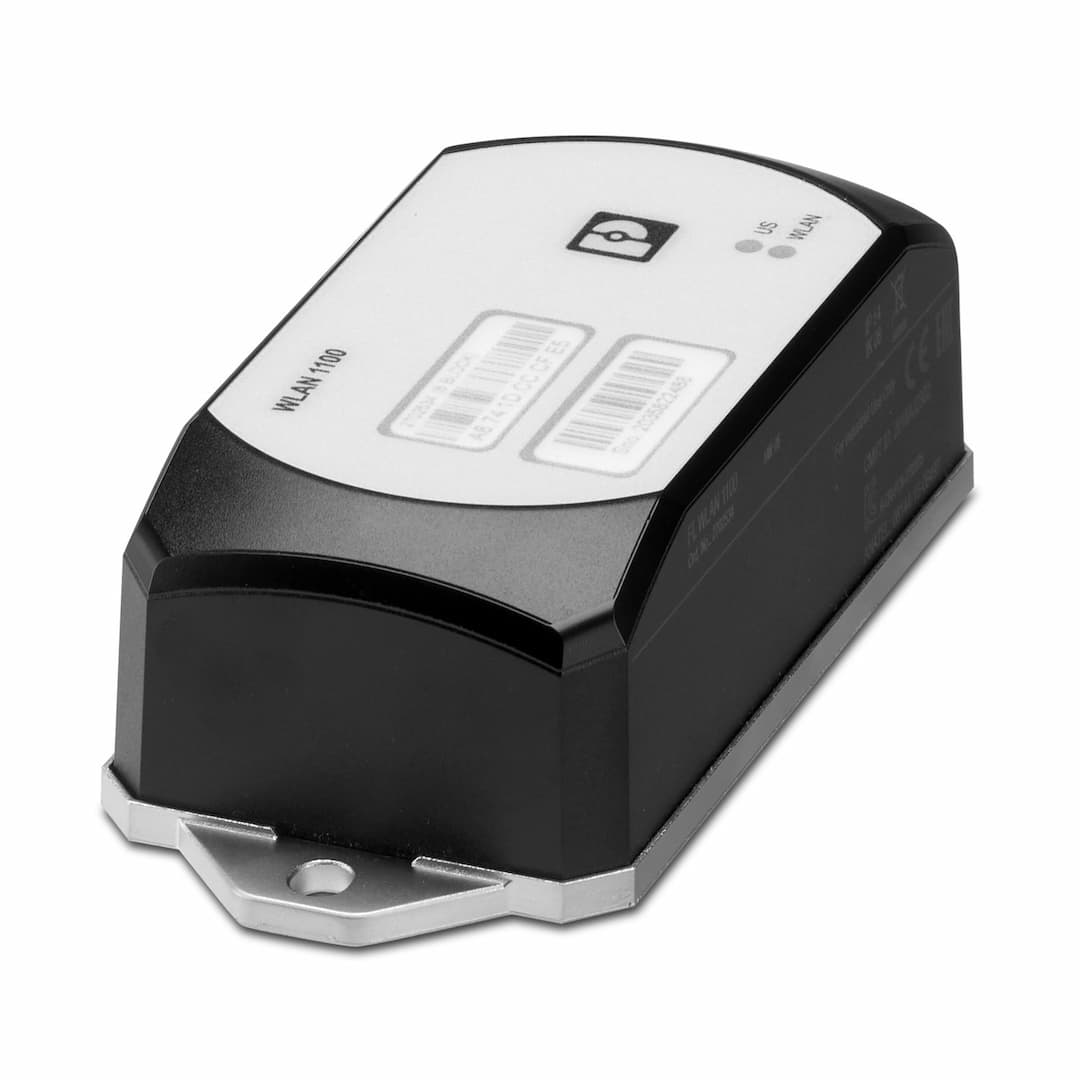

FL WLAN 1101
Selling Points
- 1Robust and Compact Design: The FL WLAN 1101 is designed for industrial environments with a compact, shock-proof housing that can withstand strong mechanical loads.
- 2Integrated Antennas: Equipped with two internal antennas using MIMO technology for enhanced coverage and reduced external antenna costs.
- 3Multi-Functional: Operates as a WLAN access point, client, or repeater, supporting 802.11 standards a, b, g, and n.
- 4Reliable Connectivity: Offers fast and reliable wireless communication in the 2.4 GHz and 5 GHz bands with a maximum transmission power of 20 dBm (EIRP).
- 5Easy Installation: Features single-hole mounting for quick and easy installation directly on machines, mobile units, or control cabinets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product type | Wireless module | Type | Stand-Alone |
Article revision | 09 | Overvoltage category | none |
Pollution degree | 2 | Number | 1 |
Type | IEEE 802.11 a/b/g/n 2.4 GHz and 5 GHz to 300 Mbps | Assembly note | Permanently installed |
Maximum power dissipation for nominal condition | 4.5 W | Connection technology | COMBICON |
Connection method | Push-in spring connection | Note on the connection method | Recommended conductor cross section: 0.75 mm²
Recommended ferrule: connection length 10 mm
Recommended crimping pliers: trapezoidal or square |
Designation | 1966101 FMC 1,5/ 3-STF-3,5 | Number of positions | 3 |
Cross section range AWG | 24 ... 16 (Use copper wires rated 75° C (UL)) | Supply voltage | 24 V DC (SELV) |
Supply voltage range | 18 V DC ... 32 V DC (PELV/SELV)
9 V DC ... 32 V DC (PELV/SELV (from HW version 05)) | Supply current | typ. 120 mA (at 24 V DC) |
Current consumption | max. 250 mA (at 18 V DC)
max. 400 mA (at 9 V DC) | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 10 mm |
Number | 2 | Connection method | permanently installed |
Note on the connection method | MIMO | Gain | 5 dBi |
Operating modes | Access Point / Client Adapter / Repeater | Configuration | Web-based management, automated CLI |
Quality of service (QoS) | Yes | Security | 802.11i
WPA PSK (preshared key)
WPA2
AES
TKIP
MAC filter
Supports 802.1X/RADIUS |
Wireless licenses | USA, Canada | Country support | USA
Canada |
Number of interfaces | 1 | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
No. of channels | 1 (RJ45 ports) | Designation | Wireless LAN |
Antenna connection method | (Internal) | Frequency band | 2.4 GHz
5 GHz |
Wireless standard | WLAN
IEEE 802.11
a
b
g
n
Wi-Fi 4 | Transmission power | max. 20 dBm (EIRP) |
Number of wireless interfaces | 1 IEEE 802. 11 a/b/g/n | Wireless modules that can be connected | 10 (In Access Point mode max. 2 SSIDs) |
Width | 62.8 mm | Height | 36.5 mm |
Depth | 113.2 mm | Note on dimensions | Outside dimensions |
Color | black | Material base plate | Die-cast zinc, nickel-plated |
Housing material | Polycarbonate, PC | Ambient temperature (operation) | 0 °C ... 60 °C |
Degree of protection | IP54 | Note | Degree of protection when installed |
Air pressure (operation) | 800 hPa ... 1080 hPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Standards/regulations | EN 61000-4-2 |
Contact discharge | ± 4 kV | Discharge in air | ± 8 kV |
Indirect discharge | ± 6 kV | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1000 MHz | Test field strength | 10 V/m |
Frequency range | 1000 MHz ... 6000 MHz | Test field strength | 3 V/m |
Standards/regulations | EN 61000-4-4 | Comments | ±2.2 kV |
Standards/regulations | EN 61000-4-5 | Signal | ± 0.5 kV (symmetrical)
± 1 kV (asymmetrical) |
Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
Voltage | 10 V | Standards/regulations | FCC/CFR 47, Part 15.107 |
Test result | Class B | Standards/regulations | FCC/CFR 47, Part 15.109 |
Test result | Class A | Standards/regulations | ICES-003 Issue 6 section 6.1 |
Test result | Class B | Standards/regulations | ICES-003 Issue 6 section 6.2 |
Test result | Class A | Mounting type | Single-hole mounting |
Assembly note | Internal antenna |
Specifications may be subject to change without notice
