Product Model

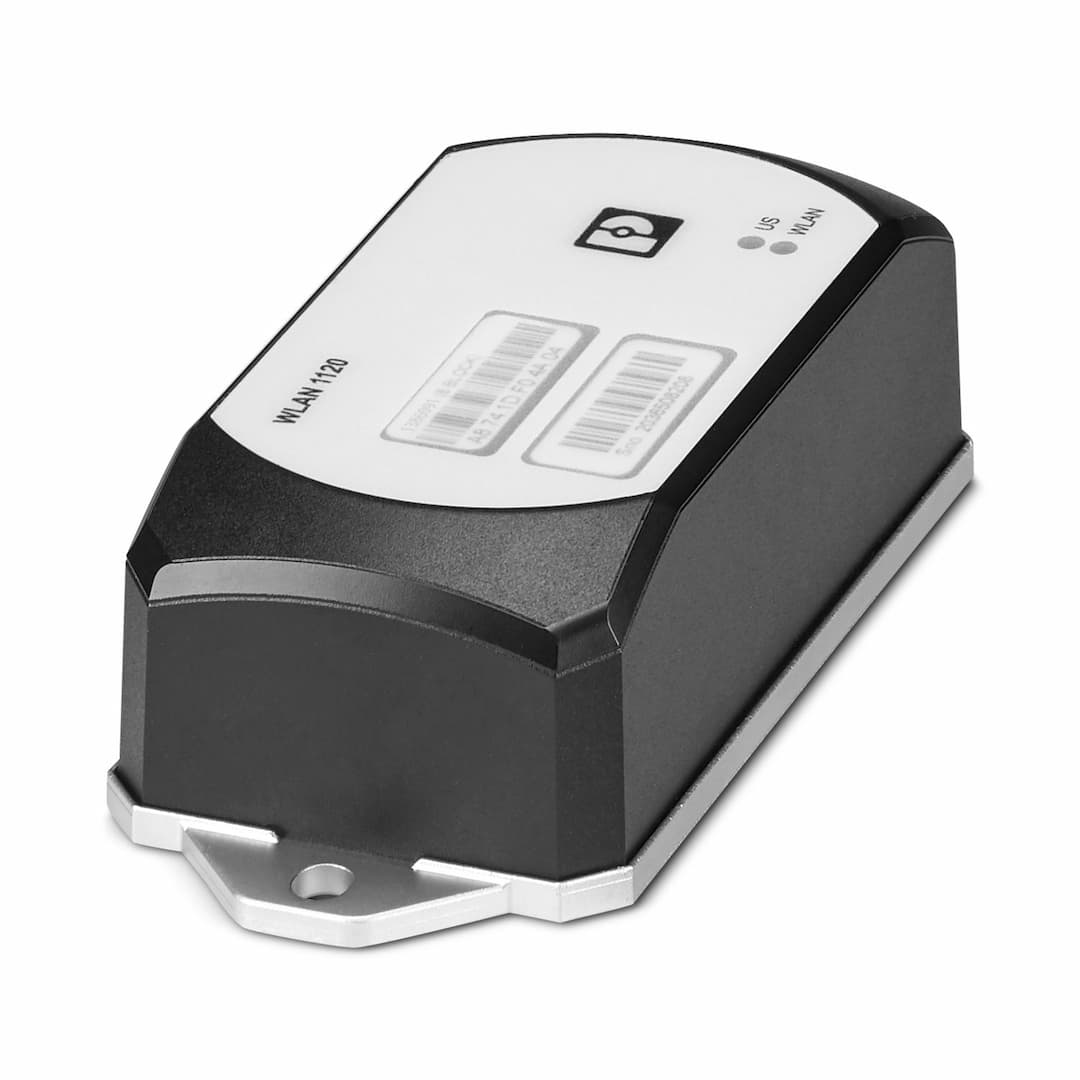

FL WLAN 1120
Selling Points
- 1Integrated MIMO Antennas: Enhances wireless performance with internal antennas for single-hole mounting.
- 2IP66/68 Rating: Provides robust protection against dust and water, ensuring reliable operation in harsh environments.
- 3Wide Operating Temperature Range: Operates from -30°C to +60°C, suitable for various industrial settings.
- 4Dual-Band Support: Supports both 2.4 GHz and 5 GHz frequencies, offering flexibility in network configuration.
- 5Advanced Security Features: Includes WPA2 PSK, AES, TKIP, and MAC filter for secure wireless communication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Wireless module |
Type | Stand-Alone | Article revision | 02 |
Overvoltage category | II (IEC 61010-1) | Type | IEEE 802.11 a/b/g/n/ac/ax 2,4 GHz, 5 GHz > 600 MBit/s |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 4.1 W |
Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min | Connection technology | COMBICON |
Connection method | Push-in spring connection | Note on the connection method | Recommended conductor cross section: 0.75 mm²
Recommended ferrule: connection length 10 mm
Recommended crimping pliers: trapezoidal or square |
Designation | 1966101 FMC 1,5/ 3-STF-3,5 | Number of positions | 3 |
Cross section range AWG | 24 ... 16 | Supply voltage | 24 V DC (SELV) |
Supply voltage range | 9 V DC ... 32 V DC (PELV/SELV) | Supply current | typ. 170 mA (at Unom/ 20°C/ max. data throughput) |
Current consumption | max. 620 mA (At Umin/Tmax/max. data throughput) | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 10 mm |
Number | 2 | Connection method | permanently installed |
Note on the connection method | MIMO | Gain | 5 dBi |
Configuration | Web-based management, automated CLI, REST API | Quality of service (QoS) | Yes |
Wireless licenses | Europe, additional countries in the e-shop | Country support | Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Italy
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Slovakia
Slovenia
Spain
Czech Republic
Hungary
Cyprus (rep.) |
Number of interfaces | 1 | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
No. of channels | 1 (RJ45 ports) | Designation | Wireless LAN |
Antenna connection method | (Internal) | Frequency band | 2.4 GHz
5 GHz |
Wireless standard | WLAN
IEEE 802.11
a
b
g
n
ac
ax
Wi-Fi 6 | Number of wireless interfaces | 1 IEEE 802.11 a/b/g/n/ac/ax |
Wireless modules that can be connected | 10 (In access point mode) | Width | 62.8 mm |
Height | 36.5 mm | Depth | 113.2 mm |
Note on dimensions | Outside dimensions | Material base plate | Die-cast zinc, nickel-plated |
Housing material | Polycarbonate, PC | Ambient temperature (operation) | -30 °C ... 60 °C |
Degree of protection | IP65
IP66
IP67
IP68 | Note | Degree of protection when installed |
Air pressure (operation) | 800 hPa ... 1080 hPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Standards/regulations | EN 61000-4-2 |
Contact discharge | ± 6 kV | Discharge in air | ± 8 kV |
Indirect discharge | ± 6 kV | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1000 MHz | Test field strength | 10 V/m |
Frequency range | 1000 MHz ... 6000 MHz | Test field strength | 3 V/m |
Standards/regulations | EN 61000-4-4 | Comments | ±2.2 kV |
Standards/regulations | EN 61000-4-5 | Signal | ± 0.5 kV (symmetrical)
± 1 kV (asymmetrical) |
Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
Voltage | 10 V | Standards/regulations | EN 55032 |
Test result | Class B | Mounting type | Single-hole mounting |
Assembly note | Internal antenna |
Specifications may be subject to change without notice
