Product Model

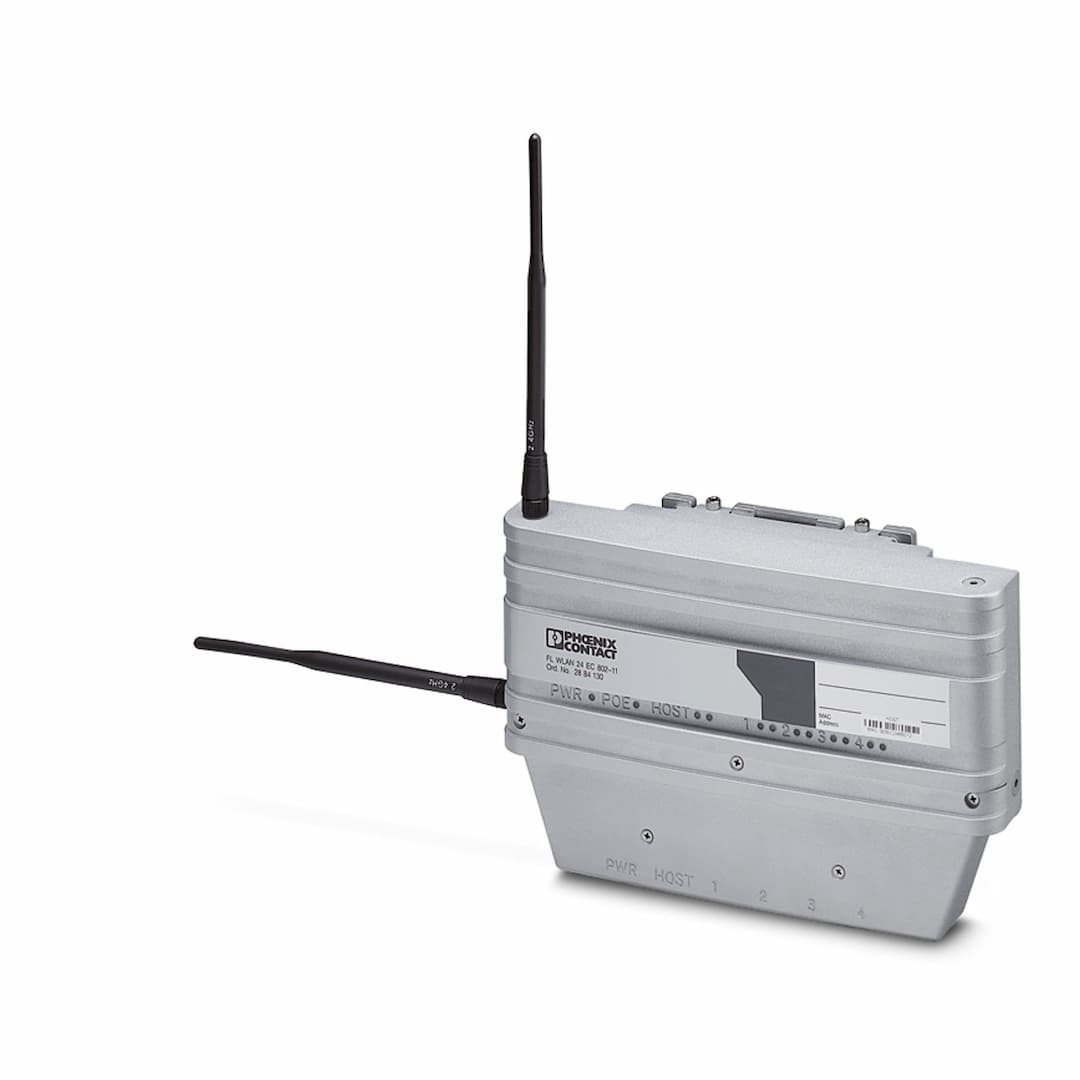

FL WLAN 230 AP 802-11-US
Selling Points
- 1High resistance to vibration, shock, and EMI.
- 2Maximum security according to IEEE 802.11i with AES encryption.
- 3Supports both 2.4 GHz and 5 GHz frequencies.
- 4Web-based management with automatic channel selection and QoS support.
- 5Compatible with PoE (Power over Ethernet) for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Type | Stand-Alone |
Number | 1 | Type | IEEE 802.11a/b/g, 2.4 and 5 GHz to 54 Mbps |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 9.6 W |
Connection method | Via COMBICON | Supply voltage | 110 V AC (PoE) |
Supply voltage range | 110 V AC ... 230 V AC | Supply current | 400 mA (Recommended protection 2AT) |
Interface | Ethernet | Number | 1 |
Connection method | RJ45 jack | Number | 2 |
Connection method | RSMA (male) | Operating modes | Access Point |
Configuration | Multilingual web-based interface (German/English) under http or https, with password protection | Automatic channel selection | yes |
Quality of service (QoS) | Yes | Virtual LAN (VLAN) support 802.1Q | yes |
Security | WEP 64 bit/128 bit
WEPplus
WPA TKIP
802.11i WPA2 (RSN,AES)
WPA PSK (preshared key)
WPA group & master rekeying | Country support | USA
Canada |
Designation | Wireless card | Antenna connection method | RSMA (female) |
Frequency band | 2.4 GHz
5 GHz | Wireless standard | WLAN
IEEE 802.11
a
b
g
h |
Transmission power | 20 dBm (EIRP) | Number of wireless interfaces | 1 IEEE 802.11 a/b/g |
Wireless modules that can be connected | 256 (More than) | Width | 159 mm |
Height | 250 mm | Depth | 65 mm |
Degree of protection | IP65 | Ambient temperature (operation) | -20 °C ... 55 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Permissible humidity (operation) | 10 % ... 85 % (non-condensing) |
Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Adapter plate
Wall mounting on adapter plate |
Assembly note | External OMNI omnidirectional antenna, the antennas can be exchanged |
Specifications may be subject to change without notice
