Product Model

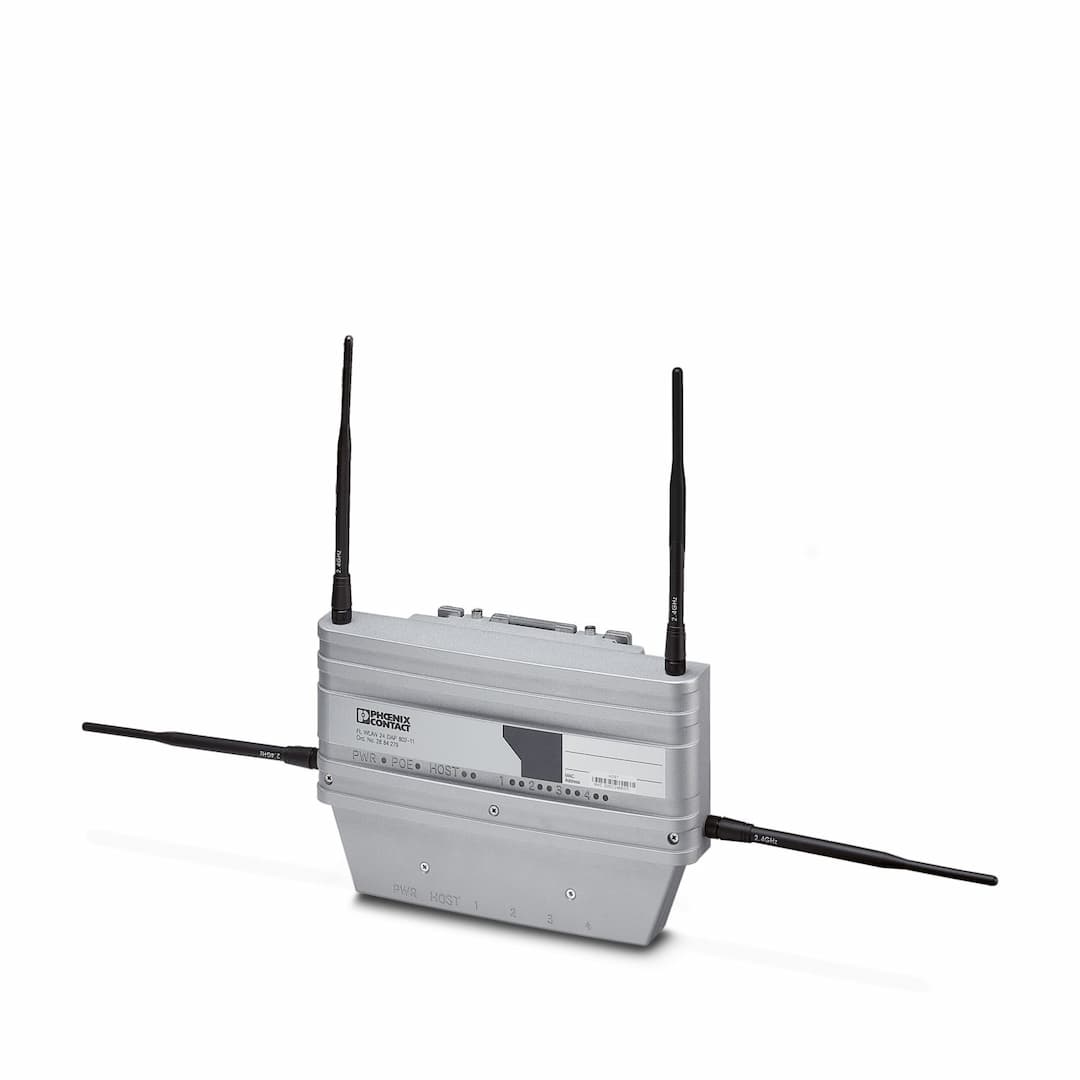

FL WLAN 24 DAP 802-11
Selling Points
- 1Dual Access Point: Supports both access point and client modes.
- 2PoE Compatible: Operates at 24 V DC with Power over Ethernet (PoE).
- 3IEEE 802.11 a/b/g: Compliant with IEEE 802.11 standards for reliable wireless connectivity.
- 4Antenna Diversity: Enhances signal strength with dual antenna setup.
- 5Web-Based Management: Easily configure and manage via a multilingual web interface.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Type | Stand-Alone |
Number | 2 | Type | IEEE 802.11a/b/g, 2.4 and 5 GHz to 54 Mbps |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 9.6 W |
Connection method | Via COMBICON | Supply voltage | 24 V DC (PoE) |
Supply voltage range | 18.5 V DC ... 30.5 V DC | Supply current | 400 mA (Recommended protection 2AT) |
Interface | Ethernet | Number | 1 |
Connection method | RJ45 jack | Number | 4 |
Connection method | RSMA (male) | Operating modes | Access Point |
Configuration | Multilingual web-based interface (German/English) under http or https, with password protection | Automatic channel selection | yes |
Quality of service (QoS) | Yes | Virtual LAN (VLAN) support 802.1Q | yes |
Security | WEP 64 bit/128 bit
WEPplus
WPA TKIP
802.11i WPA2 (RSN,AES)
WPA PSK (preshared key)
WPA group & master rekeying | Wireless licenses | Europe, additional countries in the e-shop |
Country support | Australia (Special rule: Please contact the Product Manager)
Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Russia (Special rule: Please contact the Product Manager)
Sweden
Switzerland
Singapore
Slovakia
Slovenia
Spain
Czech Republic
Turkey
Hungary
Cyprus (rep.) | Designation | Wireless card |
Antenna connection method | RSMA (female) | Frequency band | 2.4 GHz
5 GHz |
Wireless standard | WLAN
IEEE 802.11
a
b
g
h | Transmission power | 20 dBm (EIRP) |
Number of wireless interfaces | 2 IEEE 802.11 a/b/g | Wireless modules that can be connected | 256 (More than) |
Width | 159 mm | Height | 250 mm |
Depth | 65 mm | Degree of protection | IP65 |
Ambient temperature (operation) | -20 °C ... 55 °C | Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
Permissible humidity (operation) | 10 % ... 85 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Adapter plate
Wall mounting on adapter plate | Assembly note | External OMNI omnidirectional antenna, the antennas can be exchanged |
Specifications may be subject to change without notice
