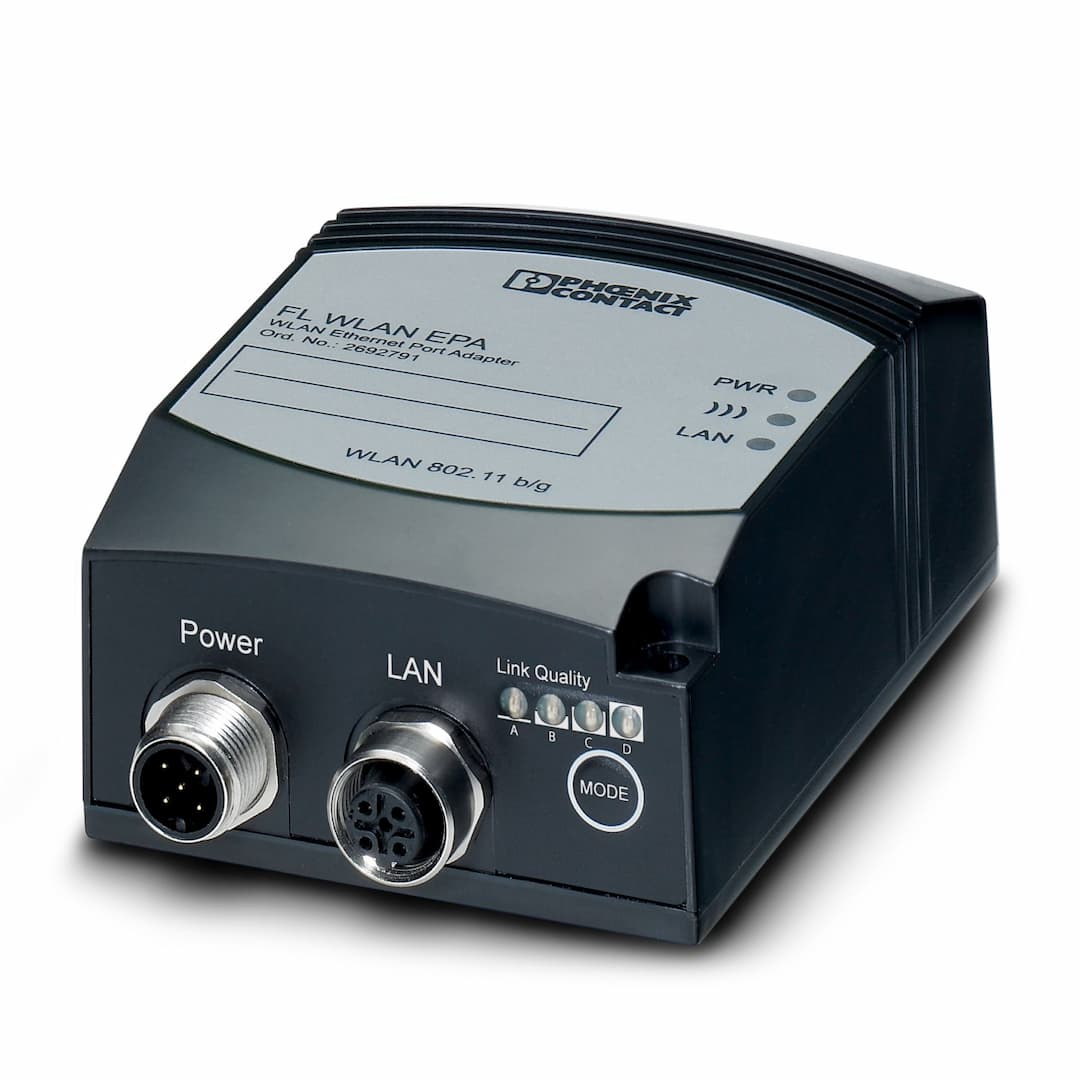

Product Model
FL WLAN EPA
Selling Points
- 1Integrated Special Antenna (EPA): Enhances wireless signal strength and stability.
- 2Maximum Security: Compliant with IEEE 802.11i and AES encryption for secure data transmission.
- 3IP65 Protection Class: Ensures durability in harsh environments.
- 4Dual-Band Support: Operates on both 2.4 GHz and 5 GHz frequency bands.
- 5Easy Configuration: Web interface, MODE button, and AT commands for straightforward setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Type | Stand-Alone |
Number | 1 | Assembly note | Permanently installed |
Maximum power dissipation for nominal condition | 1.824 W | Connection method | M12 connector (A-coded, male) |
Supply voltage | 24 V DC | Supply voltage range | 9 V DC ... 30 V DC |
Supply current | 76 mA (at 24 V DC) | Current consumption | 76 mA (at 24 V DC) |
Number of inputs | 1 | Interface | Ethernet |
Number | 1 | Connection method | M12 connectors (D-coded, female) |
Number | 1 | Connection method | permanently installed |
Operating modes | Ethernet client adapter | Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC |
Automatic channel selection | yes | Quality of service (QoS) | Yes |
Security | 802.11i
WPA PSK (preshared key)
WPA2 PSK
AES
WEP 64 bit/128 bit
TKIP
Supports 802.1X/RADIUS | Wireless licenses | Europe, USA, Canada, additional countries in the e-shop |
Country support | Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Canada
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Slovakia
Slovenia
Spain
Czech Republic
Hungary
USA
Cyprus (rep.)
Japan | Designation | Wireless LAN |
Antenna connection method | (Internal) | Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
Frequency band | 2.4 GHz | Wireless standard | WLAN
IEEE 802.11
b
g
n |
Transmission power | max. 20 dBm (EIRP) | Number of wireless interfaces | 1 IEEE 802.11 b/g/n |
Wireless modules that can be connected | 1 | Width | 66 mm |
Height | 91 mm | Depth | 34 mm |
Note on dimensions | Without M12 connections | Degree of protection | IP65 |
Ambient temperature (operation) | -40 °C ... 65 °C | Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 90 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 90 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting
Wall mounting | Assembly note | Internal circularly polarized panel antenna |
Specifications may be subject to change without notice
