Product Model

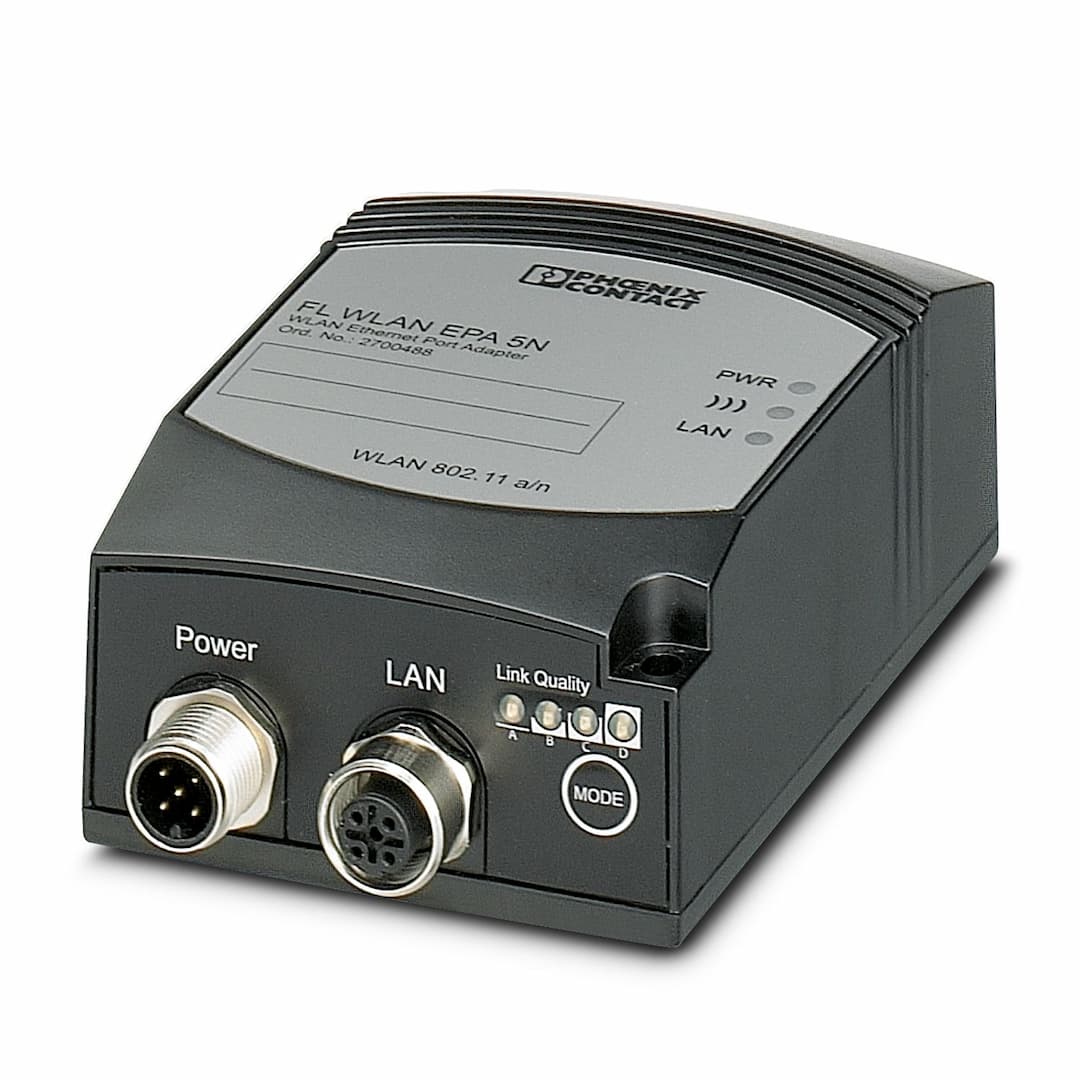

FL WLAN EPA 5N
Selling Points
- 1Supports standard 802.11 a/n in the 5 GHz frequency band.
- 2Compatible with FL WLAN EPA RSMA for versatile connectivity.
- 3Enhanced performance for demanding wireless applications.
- 4Reliable and efficient wireless communication solution.
- 5Easy integration with various networking systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Type | Stand-Alone |
Number | 1 | Assembly note | Permanently installed |
Maximum power dissipation for nominal condition | 1.824 W | Connection method | M12 connector (A-coded, male) |
Supply voltage | 24 V DC | Supply voltage range | 9 V DC ... 30 V DC |
Supply current | 76 mA (at 24 V DC) | Current consumption | 76 mA (at 24 V DC) |
Number of inputs | 1 | Interface | Ethernet |
Number | 1 | Connection method | M12 connectors (D-coded, female) |
Number | 1 | Connection method | permanently installed |
Operating modes | Ethernet client adapter | Basic functions | SNMP (V1), DHCP, DCP, LLDP, syslog, fast roaming, trigger input, mode button |
Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC | Automatic channel selection | yes |
Quality of service (QoS) | Yes | Security | 802.11i
WPA PSK (preshared key)
WPA2 PSK
AES
WEP 64 bit/128 bit
TKIP
Supports 802.1X/RADIUS |
Wireless licenses | Europe, USA, Canada, additional countries in the e-shop | Country support | Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Canada
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Slovakia
Slovenia
Spain
Czech Republic
Hungary
USA
Cyprus (rep.) |
Designation | Wireless LAN | Antenna connection method | (Internal) |
Frequency range | 5.15 GHz ... 5.25 GHz (ISM bandwidth) | Frequency band | 5 GHz |
Wireless standard | WLAN
IEEE 802.11
a
n | Transmission power | max. 14 dBm (EIRP) |
Number of wireless interfaces | 1 IEEE 802.11 a/n | Wireless modules that can be connected | 1 |
Width | 66 mm | Height | 91 mm |
Depth | 34 mm | Note on dimensions | Without M12 connections |
Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 65 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 90 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 90 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting
Wall mounting |
Assembly note | Internal circularly polarized panel antenna |
Specifications may be subject to change without notice
