Product Model

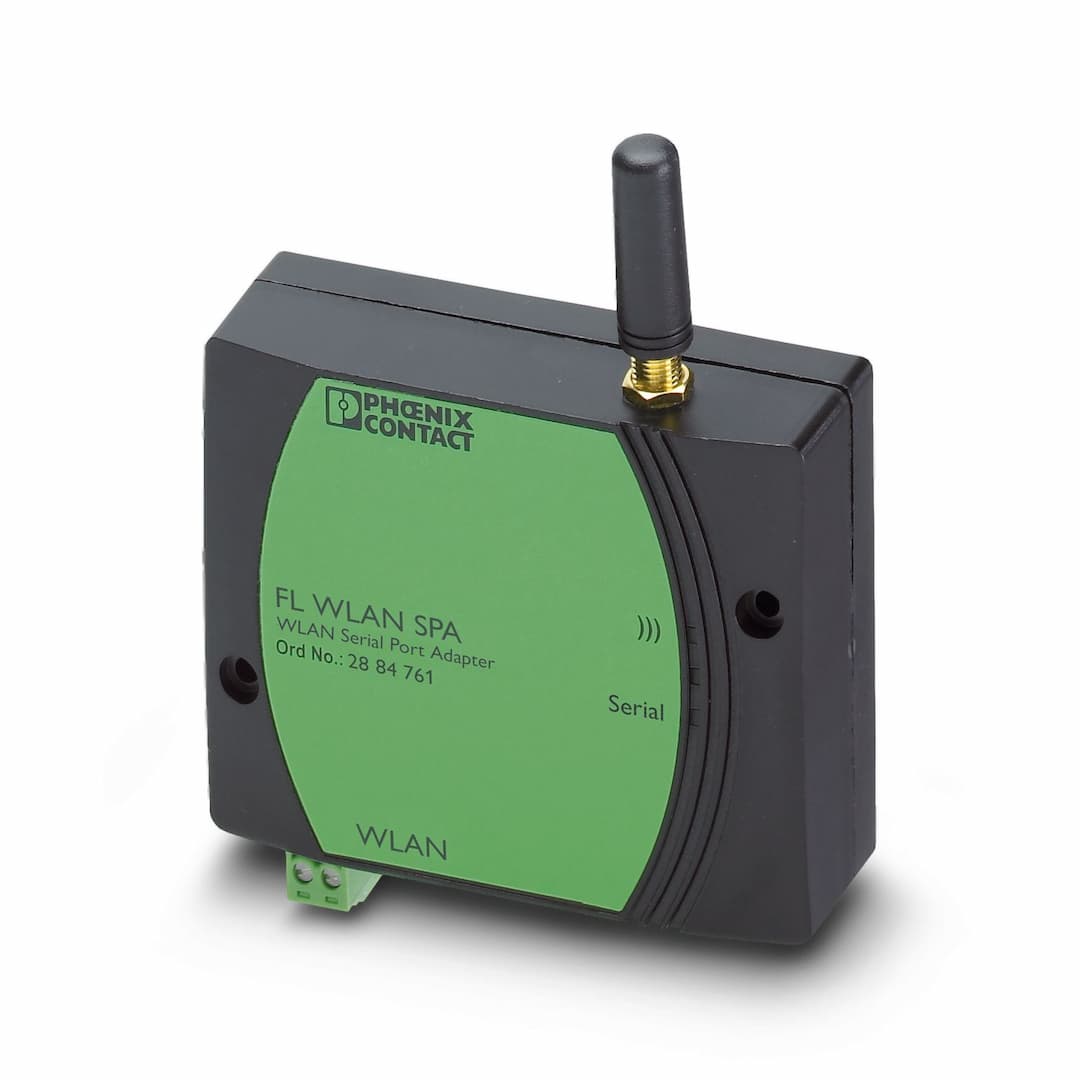

FL WLAN SPA
Selling Points
- 1The FL WLAN SPA ensures fast and stable wireless connectivity, perfect for industrial automation.
- 2Configure the device via Web manager, CLI, REST APIs, and SNMP for seamless setup.
- 3Protect your network with robust security features, including MAC-based DHCP server functionality.
- 4Mount the device inside or outside the cabinet with various mounting options available.
- 5Enjoy a compact, IP-rated design that saves space and reduces material costs in your control cabinet.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number | 1 | Type | IEEE 802 11b/g, 2.4 GHz to 54 Mbps |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 4.8 W |
Connection method | Via COMBICON | Supply voltage | 24 V DC |
Supply voltage range | 9 V DC ... 30 V DC | Supply current | 200 mA |
Number | 1 | Connection method | SMA (female) |
Operating modes | Client adapters | Configuration | By means of AT commands |
Automatic channel selection | yes | Security | 802.11i
WPA PSK (preshared key)
WPA2 PSK
AES
WEP 64 bit/128 bit
TKIP |
Wireless licenses | Europe, additional countries in the e-shop | Country support | Australia (Special rule: Please contact the Product Manager)
Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Russia (Special rule: Please contact the Product Manager)
Sweden
Switzerland
Slovakia
Slovenia
Spain
Hungary
Cyprus (rep.) |
Connection method | D-SUB 9 plug | Protocols supported | RS-232, RS-485, RS-422 |
Designation | Wireless LAN | Antenna connection method | SMA (male) |
Frequency band | 2.4 GHz | Wireless standard | WLAN
IEEE 802.11
b
g |
Transmission power | 14 dBm (EIRP) | Number of wireless interfaces | 1 IEEE 802.11 b/g |
Wireless modules that can be connected | 1 | Width | 80 mm |
Height | 65 mm | Depth | 25 mm |
Degree of protection | IP65 | Ambient temperature (operation) | -25 °C ... 55 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 90 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting, optional DIN rail mounting
DIN rail mounting | Assembly note | Exchangeable |
Specifications may be subject to change without notice
