Product Model

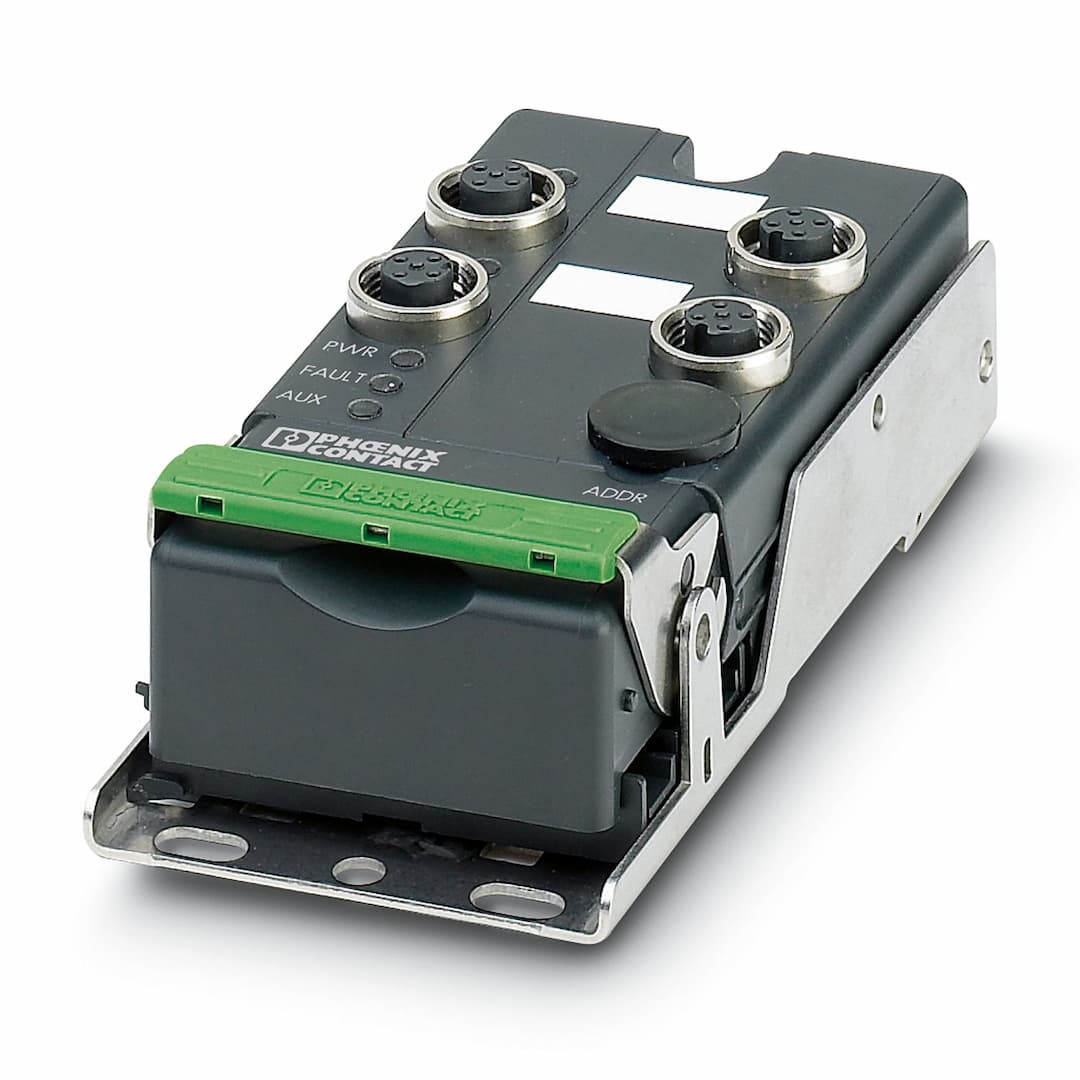

FLX ASI DIO 2/2 M12-2A
Selling Points
- 1Utilizes SPEEDCON fast locking system for secure and efficient connections.
- 2Ensures reliable operation in harsh environments with robust protection against dust and water.
- 3Designed for direct connections, enhancing overall system efficiency and speed.
- 4Compatible with 24 V DC power supply, suitable for various industrial automation applications.
- 5Supports AB slave configuration for seamless integration into AS-i networks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 58 mm | Height | 118 mm |
Depth | 35 mm | Drill hole spacing | 108 mm |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | black |
Connection method | Flat-ribbon cable penetration technique | Designation connection point | AS-i |
Number of positions | 4 | Transmission speed | 167 kbps |
ID code (dec.) | 10 | ID code (hex) | A |
Input name | Digital inputs | Description of the input | IEC 61131-2 Type 2 |
Number of inputs | 2 | Connection method | M12 connector |
Connection technology | 2-, 3-conductor | Output name | Digital outputs |
Connection method | M12 connector | Connection technology | 2-conductor |
Number of outputs | 2 | Maximum output current per channel | 2 A |
Maximum output current per module / terminal block | 4 A | Product type | I/O component |
Product family | Fieldline | Type | Block design |
Mounting position | any | No. of channels | 4 |
Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 70 °C |
Degree of protection | IP65/IP67 | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Screw on directly or on DIN rail
Wall mounting |
Mounting position | any |
Specifications may be subject to change without notice
