Product Model

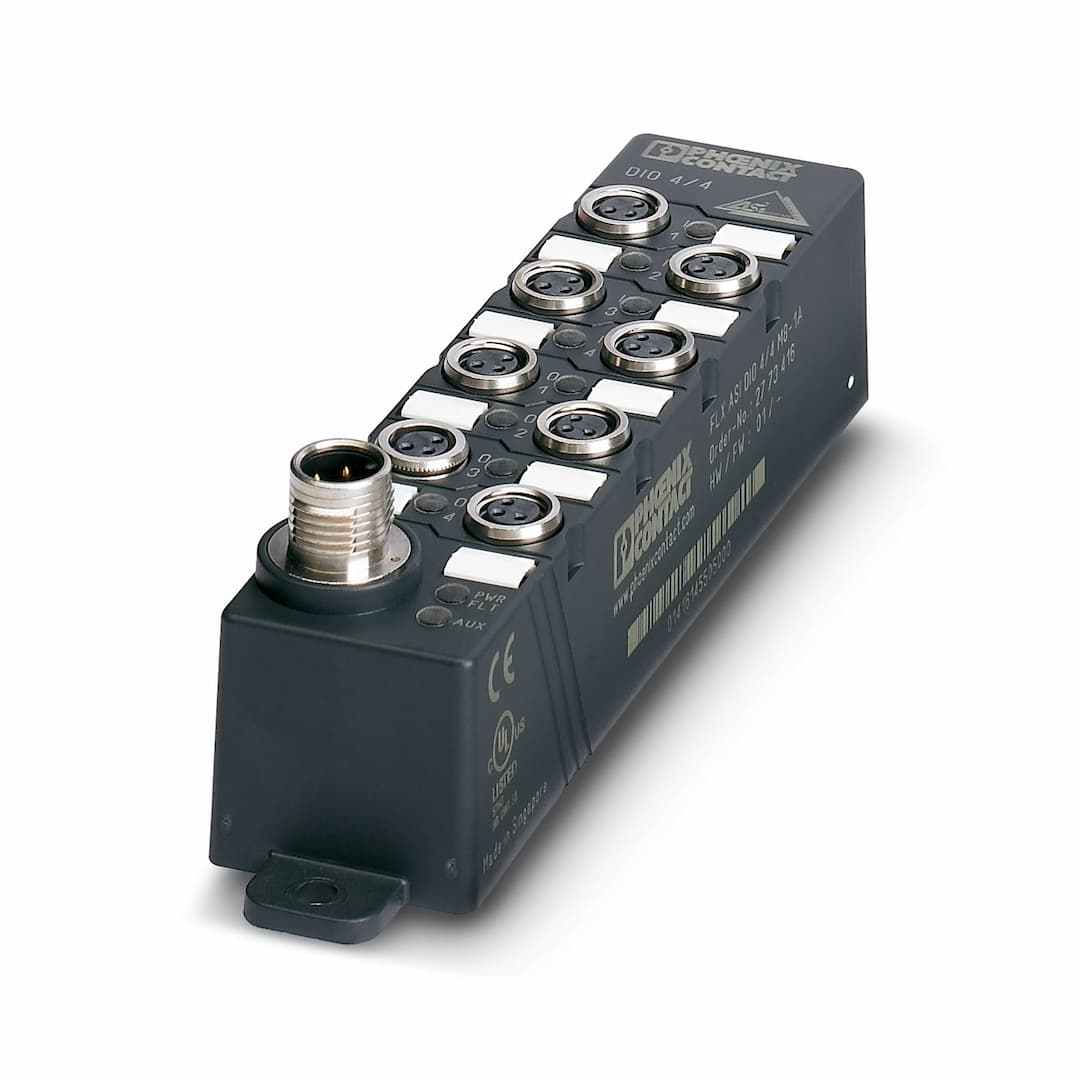

FLX ASI DIO 4/4 M8-1A
Selling Points
- 1Designed for seamless integration in industrial settings.
- 2Ensures protection against harsh environments with an IP67 rating.
- 3Uses M12 connectors with SPEEDCON rapid interlock system for AS-Interface connection.
- 4Features 4 digital inputs and 4 digital outputs with 24 V DC.
- 5Mounts easily with a 30 mm mounting profile, perfect for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 30 mm | Height | 26 mm |
Depth | 143 mm | Drill hole spacing | 133 mm |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | black |
Connection method | M12 connector (A-coded) | Designation connection point | AS-i |
Number of positions | 2 | Transmission speed | 167 kbps |
ID code (dec.) | 0 | ID code (hex) | 0 |
Input name | Digital inputs | Description of the input | IEC 61131-2 Type 2 |
Number of inputs | 4 | Connection method | M8 connector |
Connection technology | 2-, 3-conductor | Output name | Digital outputs |
Connection method | M8 connector | Connection technology | 2-conductor |
Number of outputs | 4 | Maximum output current per channel | 1 A |
Maximum output current per module / terminal block | 4 A | Product type | I/O component |
Product family | Fieldline | Type | Block design |
Mounting position | any | No. of channels | 8 |
Article revision | 02 | Connection method | M8 connector |
Ambient temperature (operation) | -25 °C ... 70 °C | Degree of protection | IP65/IP67 |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | direct screw connection
Wall mounting | Mounting position | any |
Specifications may be subject to change without notice
