Product Model

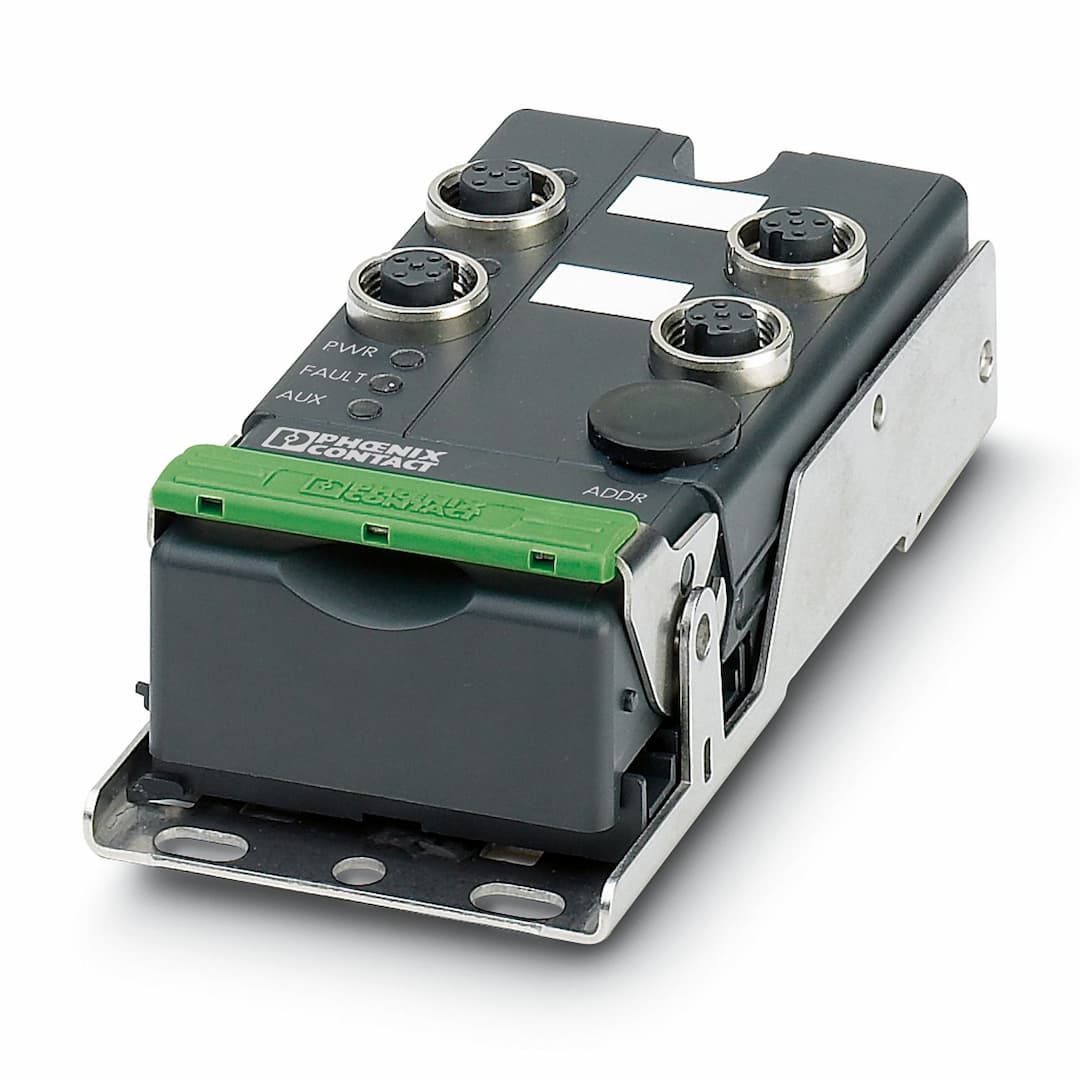

FLX ASI DO 4 M12-2A
Selling Points
- 1M12 Connection Technology with SPEEDCON Fast Locking System
- 2Optimized for Direct Mounting and DIN Rail Mounting
- 3Tool-Free Connection to AS-Interface Using Penetration Technique
- 44 Digital Outputs with 24 V DC and IP67 Protection
- 5Compact Design with Dimensions: 58 mm x 118 mm x 35 mm
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 58 mm | Height | 118 mm |
Depth | 35 mm | Drill hole spacing | 108 mm |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | black |
Connection method | Flat-ribbon cable penetration technique | Designation connection point | AS-i |
Number of positions | 4 | Transmission speed | 167 kbps |
ID code (dec.) | 1 | ID code (hex) | 1 |
Output name | Digital outputs | Connection method | M12 connector |
Connection technology | 2-conductor | Number of outputs | 4 |
Maximum output current per channel | 2 A | Maximum output current per module / terminal block | 4 A |
Product type | I/O component | Product family | Fieldline |
Type | Block design | Mounting position | any |
Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 70 °C |
Degree of protection | IP65/IP67 | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Screw on directly or on DIN rail
Wall mounting |
Mounting position | any |
Specifications may be subject to change without notice
