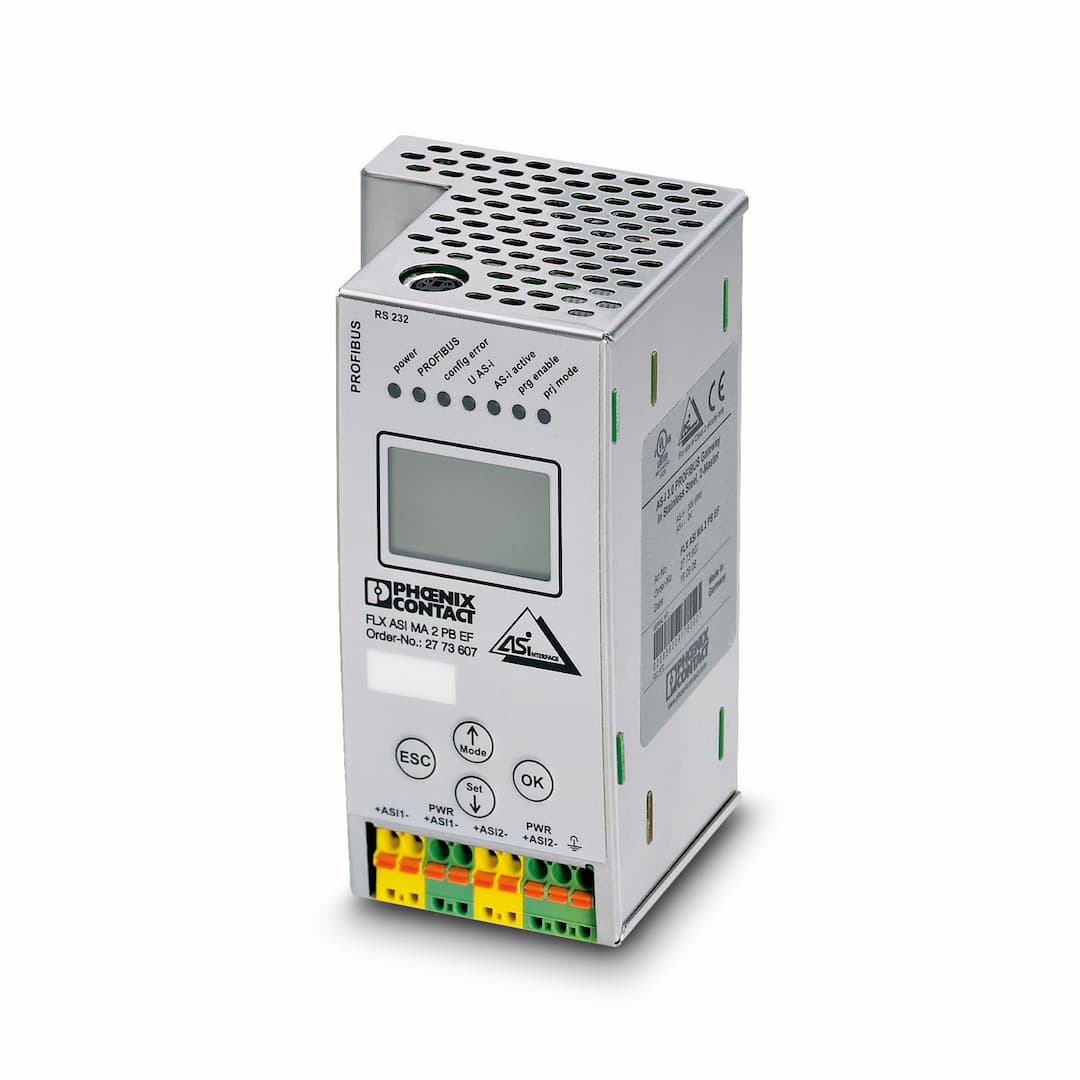

Phoenix Contact FLX ASI MA 2 PB EF

Selling Points

  • 1Easy Integration: Seamlessly connects two AS-Interface networks into a PROFIBUS DP system.
  • 2Robust Design: Rugged, high-grade steel housing with IP20 degree of protection.
  • 3Advanced Diagnostics: Extensive parameterization and diagnosis through a multi-line LCD display.
  • 4Versatile Configuration: Operates AS-Interface slaves with expanded addressing, compatible with older specifications.
  • 5User-Friendly Interface: Configured using "Mode" and "Set" keys with a 7-segment display for easy addressing.
Product Details
FLX ASI MA 2 PB EF
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Gateways/Proxies
Product family
Fieldline
Type
Block design
Monitored function
Addresses, error messages
Optical representation
Via four-line LCD
Local diagnostics
Addresses, error messages Via four-line LCD power Operating voltage, electronics module (UL) Green LED U AS-i Operating voltage AS-i (U ASI) Green LED AS-i active AS-i transmission (ASI ACTIVE) Green LED prg enable Programming mode active, automatic slave programming possible Green LED prj mode Configuration mode active (PRJ Enable) Yellow LED fault AS-i configure error (CONFIG ERR) LED red PROFIBUS Device/network status Green LED
Max. current consumption
200 mA
Typical current consumption
approx. 200 mA (from AS-i circuit 1) approx. 70 mA (from AS-i circuit 2)
Connection method
Spring-cage connection with direct connector-in method
Bus system
PROFIBUS DP
Connection method
D-SUB 9 plug
Transmission speed
9.6 kbps ... 12 Mbps
Transmission physics
PROFIBUS-DP-compliant copper cable
Bus system
AS-Interface
Connection method
2-pos. COMBICON connector
Transmission physics
Copper
Bus system
RS-232
Connection method
RS-232-C, 6-pos. MINI-DIN socket (PS/2)
Width
75 mm
Height
120 mm
Depth
83 mm
Color
white aluminum
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 55 °C
Ambient temperature (storage/transport)
-25 °C ... 85 °C
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
