Phoenix Contact FLX ASI MA PB SF: Seamless AS-Interface Integration for PROFIBUS DP

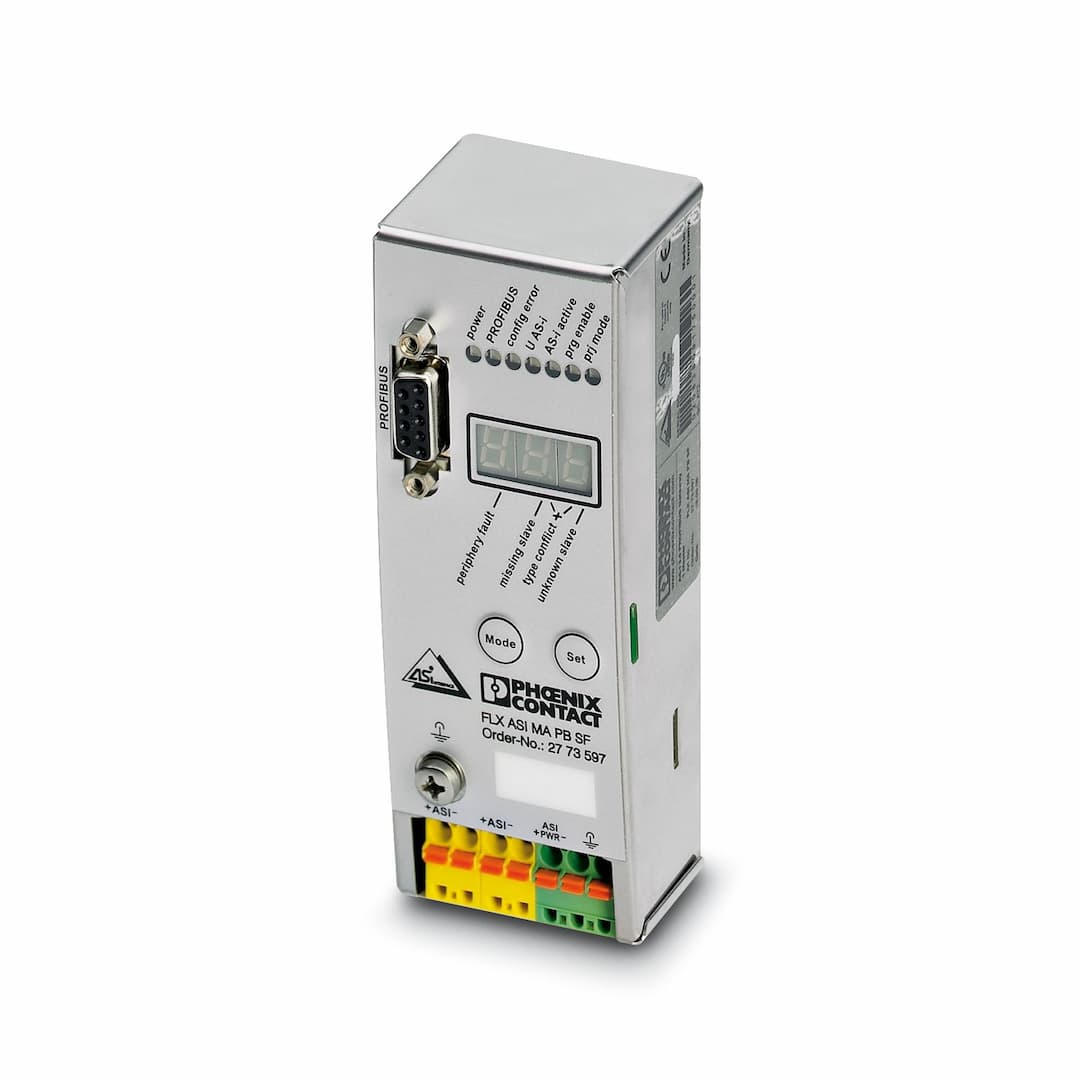

Phoenix Contact FLX ASI MA PB SF

Selling Points

1Easily integrates AS-Interface networks into PROFIBUS DP systems.
2Features a rugged, high-grade steel housing with IP20 degree of protection.
3Supports expanded addressing for AS-Interface slaves.
4Equipped with "Mode" and "Set" keys and a 7-segment display for easy configuration.
5Meets AS-Interface specification 3.0 and ensures long-term reliability with unlimited environmentally friendly use period.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Gateways/Proxies	Product family	Fieldline
Type	Block design	Monitored function	Addresses, error messages
Optical representation	7-segment display	Local diagnostics	Addresses, error messages 7-segment display power Operating voltage, electronics module (UL) Green LED U AS-i Operating voltage AS-i (U ASI) Green LED AS-i active AS-i transmission (ASI ACTIVE) Green LED prg enable Programming mode active, automatic slave programming possible Green LED prj mode Configuration mode active (PRJ Enable) Yellow LED fault AS-i configure error (CONFIG ERR) LED red PROFIBUS Device/network status Green LED
Max. current consumption	300 mA	Typical current consumption	approx. 200 mA (from the AS-i network)
Connection method	Spring-cage connection with direct connector-in method	Bus system	PROFIBUS DP
Connection method	D-SUB 9 plug	Transmission speed	9.6 kbps ... 12 Mbps
Transmission physics	PROFIBUS-DP-compliant copper cable	Bus system	AS-Interface
Connection method	2-pos. COMBICON connector	Transmission physics	Copper
Width	45 mm	Height	120 mm
Depth	44 mm	Color	white aluminum
Degree of protection	IP20	Ambient temperature (operation)	0 °C ... 55 °C
Ambient temperature (storage/transport)	-25 °C ... 85 °C	Shock	in accordance with EN 61131-2
Mounting type	DIN rail mounting

Specifications may be subject to change without notice
