Product Model

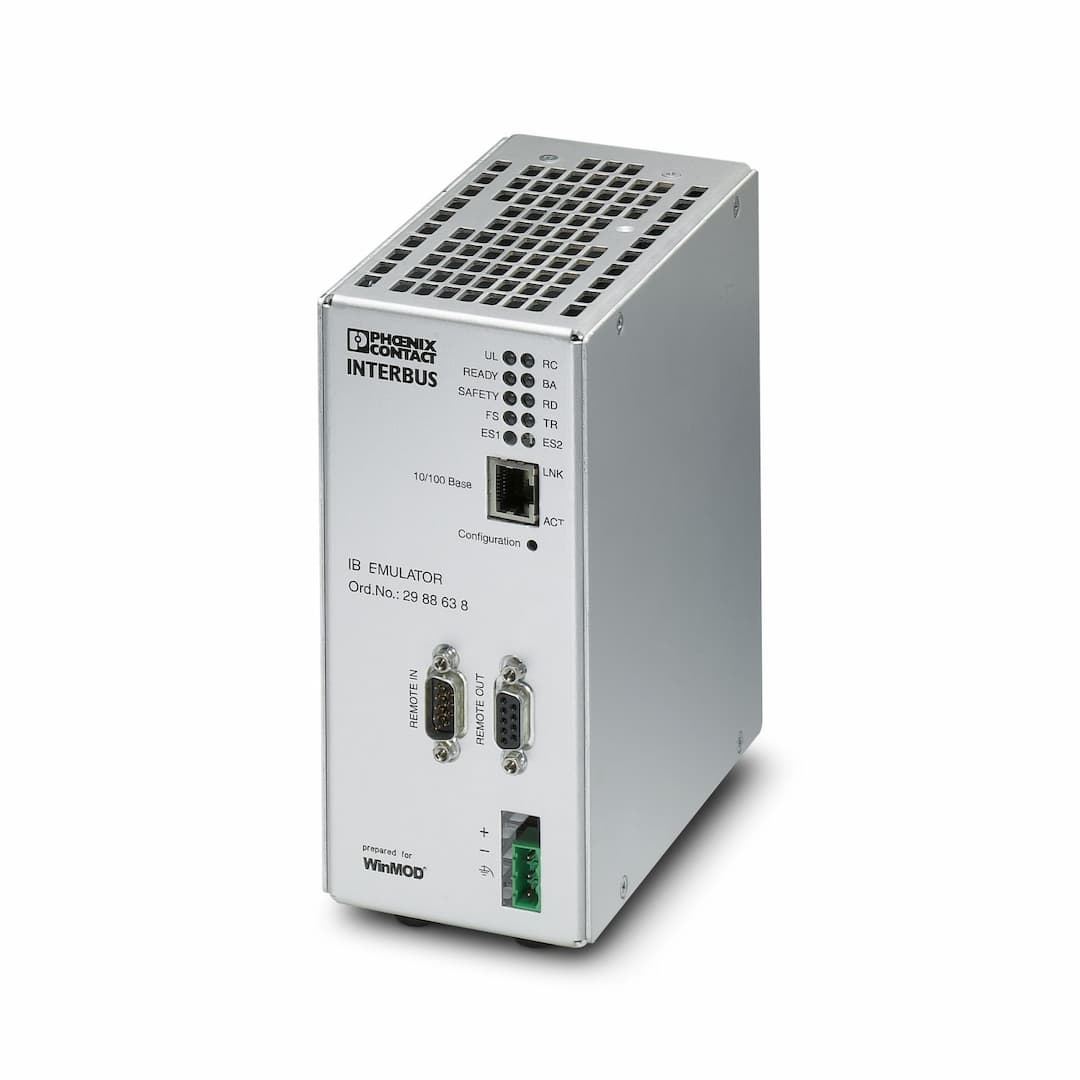

IB EMULATOR
Selling Points
- 1Simulate 112 INTERBUS devices without a real system.
- 2Program testing made easy with no hardware required.
- 3Ideal for developers and engineers looking to test and debug their systems.
- 4Compact design: 75 mm x 185 mm x 190 mm dimensions.
- 5Environmentally friendly with low power consumption (6.25 W).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Simulator card |
Number of supported devices | max. 112 (of which 112 are remote bus devices) | Power consumption | 6.25 W |
Number of inputs | 4096 | Number of outputs | 4096 |
Connection method | 9-pos. D-SUB plug/socket | Width | 75 mm |
Height | 185 mm | Depth | 190 mm |
Specifications may be subject to change without notice
