Product Model

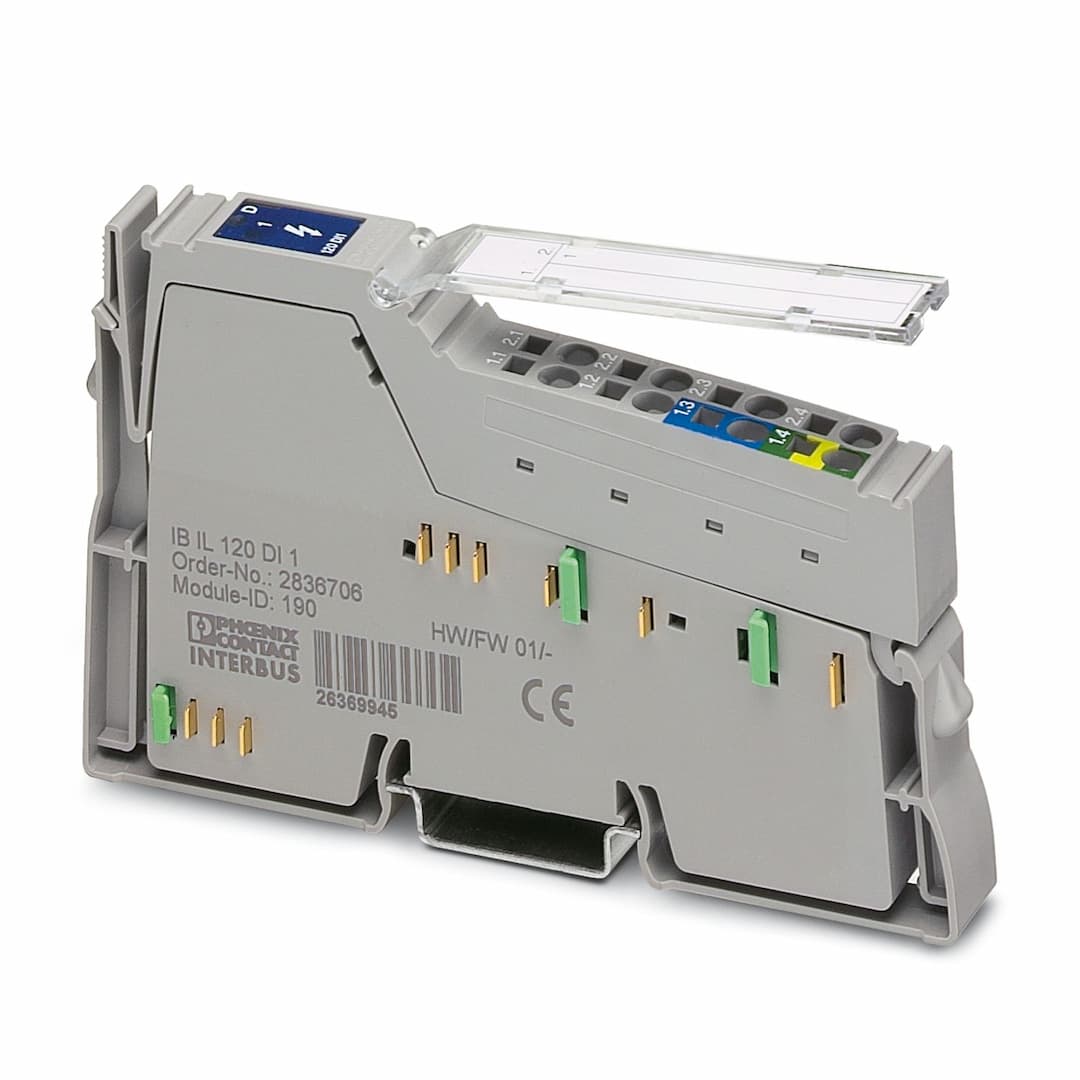

IB IL 120 DI 1-PAC
Selling Points
- 1Digital Input Terminal: Acquires digital signals in the AC voltage range with 1 input.
- 2High-Speed Transmission: Operates at 500 kbps for efficient data transfer.
- 3Durable Design: Meets IP20 protection standards for reliable operation in harsh environments.
- 4Versatile Connectivity: Uses 3-wire spring-cage connections for easy setup.
- 5Compliant with Standards: Meets CUL and IEC 61131-2 standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (dec.) | 190 |
ID code (hex) | BE | Length code (hex) | C2 |
Length code (dec) | 194 | Process data channel | 2 bit |
Input address area | 2 bit | Output address area | 0 Byte |
Register length | 2 bit | Required parameter data | 1 Byte |
Required configuration data | 4 Byte | Input name | Digital inputs |
Description of the input | IEC 61131-2 type 1 | Number of inputs | 1 |
Connection method | Spring-cage connection | Connection technology | 3-conductor |
Input voltage | 120 V AC | Input voltage range "0" signal | 0 V AC ... 40 V AC |
Input voltage range "1" signal | 77 V AC ... 135 V AC | Nominal input voltage U | 120 V AC |
Nominal input current at U | 8.1 mA (at nominal voltage) | Sensor current per channel | max. 500 mA |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
No. of channels | 1 | Article revision | 05 |
Maximum power dissipation for nominal condition | 1.2 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 30 mA | Supply voltage | 120 V AC (via voltage jumper) |
Current draw | 0.25 A | Supply voltage | 120 V AC |
Supply voltage range | 108 V AC ... 135 V AC | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics) / I/O area | 2500 V AC, 50 Hz, 1 min |
Test voltage: Routine test | 1200 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 160 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
