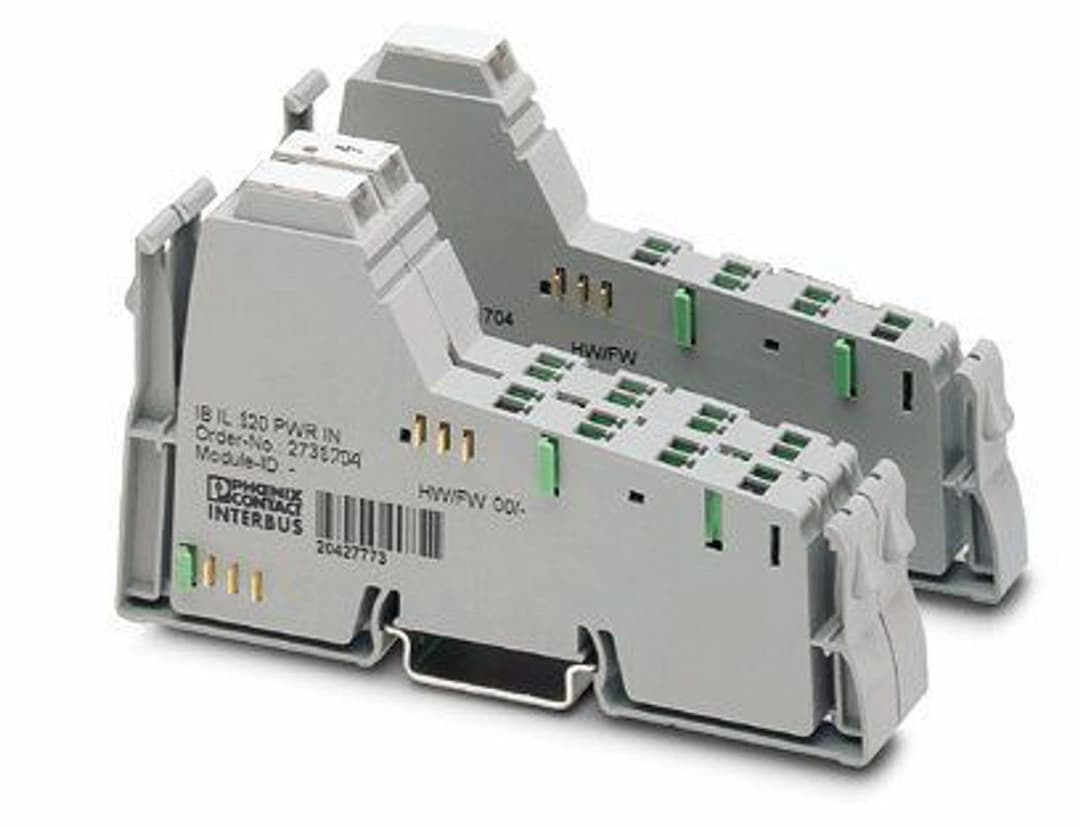

Phoenix Contact IB IL 120 PWR IN-PAC Inline Power Terminal Block

Selling Points

1Supplying 120 V AC: Designed to feed 120 V AC supply voltage into an Inline station.
2Surge Protection: Equipped with surge protection for reliable operation.
3Comprehensive Accessories: Includes connector set, labeling field, and insert strip for easy installation.
4Technical Specifications: Supports up to 8 A current consumption and operates within 108 V AC to 135 V AC range.
5UL Recognized & EAC Approved: Meets international standards with UL recognized and EAC approved certifications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Type	modular Inline	Protection class	I (IEC 61140, EN 61140, VDE 0140-1)
ID code (dec.)	none	ID code (hex)	none
Register length	0 bit	Test section	Output / Phase 500 V AC 50 Hz 1 min 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min 7.5 V supply (bus logics) / I/O area 120 V AC 2500 V AC 50 Hz 1 min Routine test 1200 V AC 50 Hz 1 min I/O area 120 V AC/PE 500 V AC 50 Hz 1 min
I/O voltage	120 V AC	I/O voltage range	108 V AC ... 135 V AC (including all tolerances, including ripple)
Residual ripple	± 12 V	Max. current consumption	8 A
Connection method	Spring-cage connection	Conductor cross section, rigid	0.08 mm² ... 1.5 mm²
Conductor cross section, flexible	0.08 mm² ... 1.5 mm²	Conductor cross section AWG	28 ... 16
Connection method	8-pos. Inline power connector	Connection method	Inline data jumper
Width	36.6 mm	Height	119.8 mm
Depth	71.5 mm	Color	gray
Degree of protection	IP20	Ambient temperature (operation)	-25 °C ... 55 °C
Ambient temperature (storage/transport)	-25 °C ... 85 °C	Permissible humidity (operation)	75 % ... 85 %
Permissible humidity (storage/transport)	75 % ... 85 %	Mounting type	DIN rail mounting
