Product Model

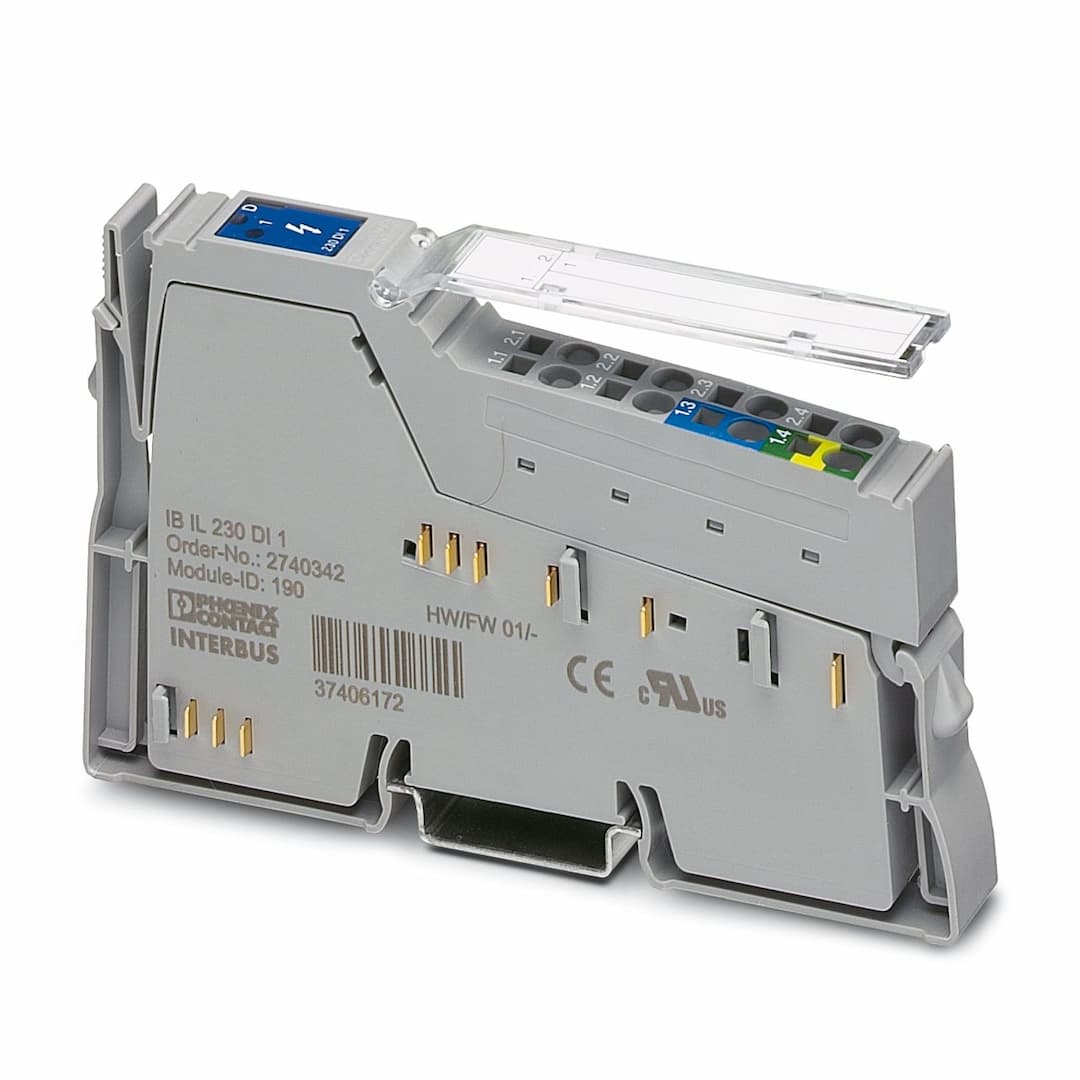

IB IL 230 DI 1-PAC
Selling Points
- 1Digital Input Terminal: The IB IL 230 DI 1-PAC features 1 digital input with a nominal input voltage of 230 V AC.
- 2High-Speed Transmission: It supports a transmission speed of 500 kbps in the local bus.
- 3IP20 Protection: Designed for use in control cabinets with IP20 protection, ensuring safe operation in harsh environments.
- 4Compact Design: Measuring 12.2 mm in width, 119.8 mm in height, and 71.5 mm in depth, it fits seamlessly into any control cabinet setup.
- 5Versatile Connectivity: Equipped with a spring-cage connection and 3-conductor technology for easy integration with various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | No. of channels | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
ID code (dec.) | 190 | ID code (hex) | BE |
Length code (hex) | C2 | Length code (dec) | 194 |
Process data channel | 2 bit | Input address area | 2 bit |
Output address area | 0 Byte | Register length | 2 bit |
Required parameter data | 1 Byte | Required configuration data | 4 Byte |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 1 | Connection method | Spring-cage connection |
Connection technology | 3-conductor | Input voltage | 230 V AC |
Input voltage range "0" signal | 0 V AC ... 40 V AC | Input voltage range "1" signal | 164 V AC ... 253 V AC |
Nominal input voltage U | 230 V AC | Nominal input current at U | 6.11 mA (at nominal voltage) |
Sensor current per channel | max. 500 mA | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | No. of channels | 1 |
Article revision | 05 | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 30 mA | Supply voltage | 230 V AC |
Current draw | max. 0.25 A | Supply voltage | 230 V AC (via voltage jumper) |
Current draw | 0.25 A | Supply voltage | 230 V AC |
Supply voltage range | 12 V AC ... 253 V AC | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics) / I/O area | 2500 V AC, 50 Hz, 1 min |
Test voltage: Routine test | 1200 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 160 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
