Product Model

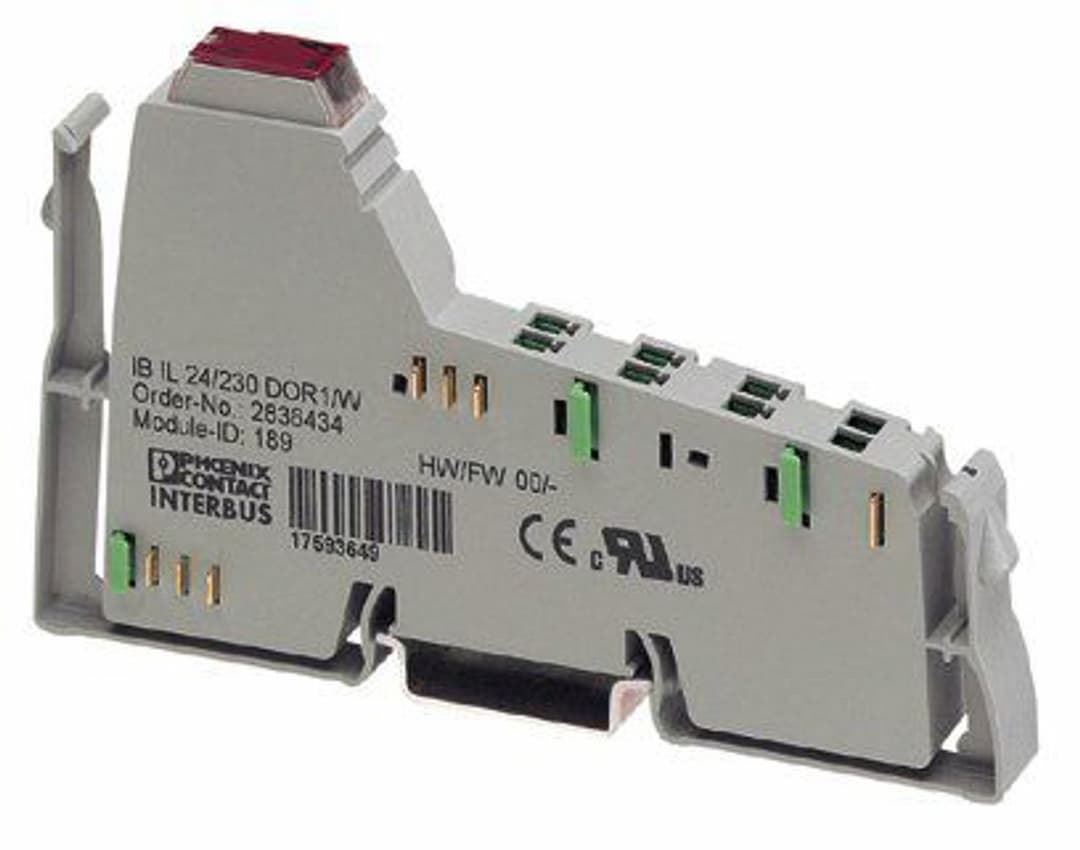

IB IL 24/230 DOR 1/W-2MBD
Selling Points
- 1Safe isolation according to EN 50178.
- 2Floating connection for one actuator.
- 3Nominal current at the output: 3 A.
- 4Transmission speed in the local bus: 2 Mbps.
- 5Degree of protection: IP20.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | No. of channels | 1 |
ID code (dec.) | 189 | ID code (hex) | BD |
Length code (hex) | C2 | Length code (dec) | 194 |
Process data channel | 2 bit | Input address area | 0 Byte |
Output address area | 2 bit (Only bit0 is occupied) | Register length | 2 bit |
Required parameter data | 3 Byte | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 90 mA | Test voltage: Relay contact / Bus logics | 4 kV, 50 Hz, 1 min |
Test voltage: Contact/contact | 1 kV, 50 Hz, 1 min | Test voltage: Contact / PE | 1 kV, 50 Hz, 1 min |
Output name | Relay output | Connection method | Spring-cage connection |
Connection technology | floating changeover relay contact | Number of outputs | 1 |
Protective circuit | Overload protection, short-circuit protection of outputs | Maximum output current per channel | 2.2 A |
Maximum output current per module | 3 A | Output voltage range | 5 V AC ... 253 V AC |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Inline data jumper | Width | 12.2 mm |
Height | 119.8 mm | Depth | 71.5 mm |
Note on dimensions | Housing dimensions | Color | gray |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
