Product Model

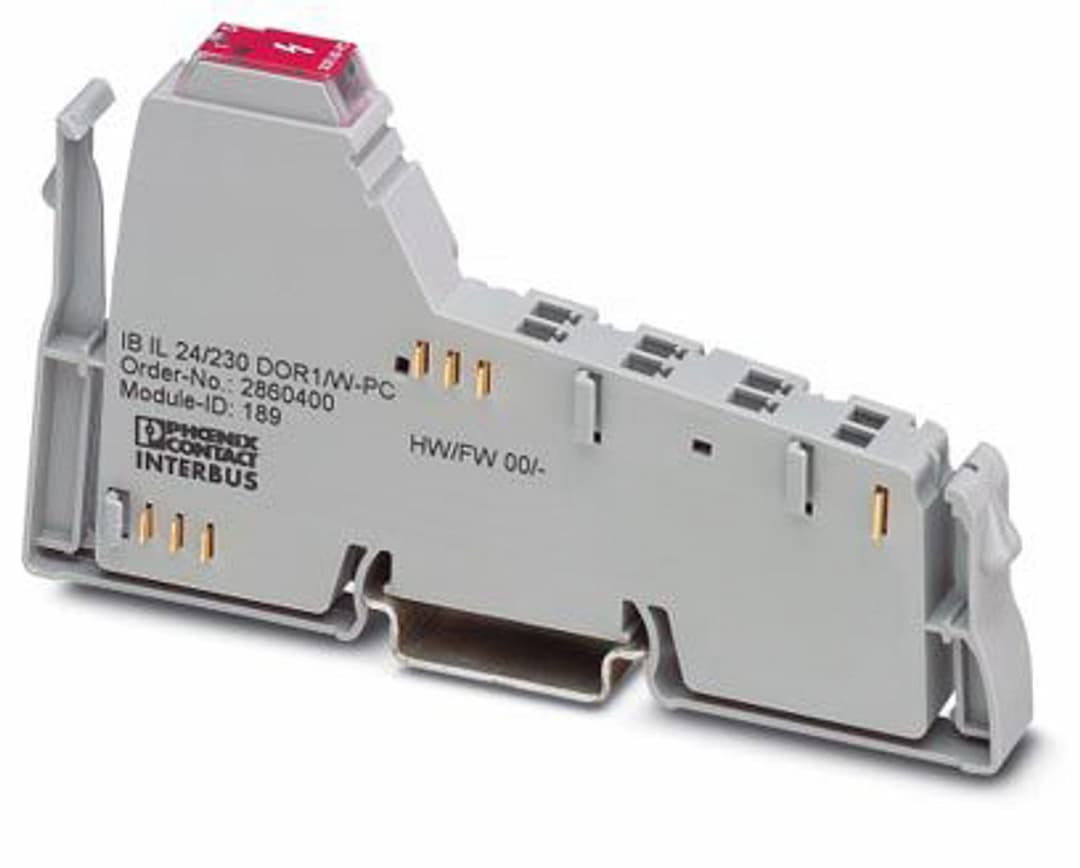

IB IL 24/230 DOR1/W-PC
Selling Points
- 1Designed for use in PELV and AC areas.
- 2Suitable for switching inductive and capacitive loads.
- 3Includes one floating SPDT relay contact.
- 4Transmission speed in the local bus: 500 kbps.
- 5Degree of protection: IP20, ensuring safe operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Color | gray | Connection method | Inline data jumper |
ID code (dec.) | 189 | ID code (hex) | BD |
Length code (hex) | C2 | Length code (dec) | 194 |
Process data channel | 2 bit | Input address area | 0 Byte |
Output address area | 2 bit (Only bit0 is occupied) | Register length | 2 bit |
Required parameter data | 3 Byte | Output name | Relay output |
Connection method | Spring-cage connection | Connection technology | floating changeover relay contact |
Number of outputs | 1 | Protective circuit | Overload protection, short-circuit protection of outputs |
Maximum output current per channel | 2.6 A | Maximum output current per module | 2.6 A |
Output voltage range | 5 V AC ... 253 V AC | Product type | I/O component |
Product family | Inline | Type | modular |
No. of channels | 1 | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 60 mA | Test voltage: Relay contact / Bus logics | 4 kV, 50 Hz, 1 min |
Test voltage: Contact/contact | 1 kV, 50 Hz, 1 min | Test voltage: Contact / PE | 1 kV, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) | Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) |
Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
