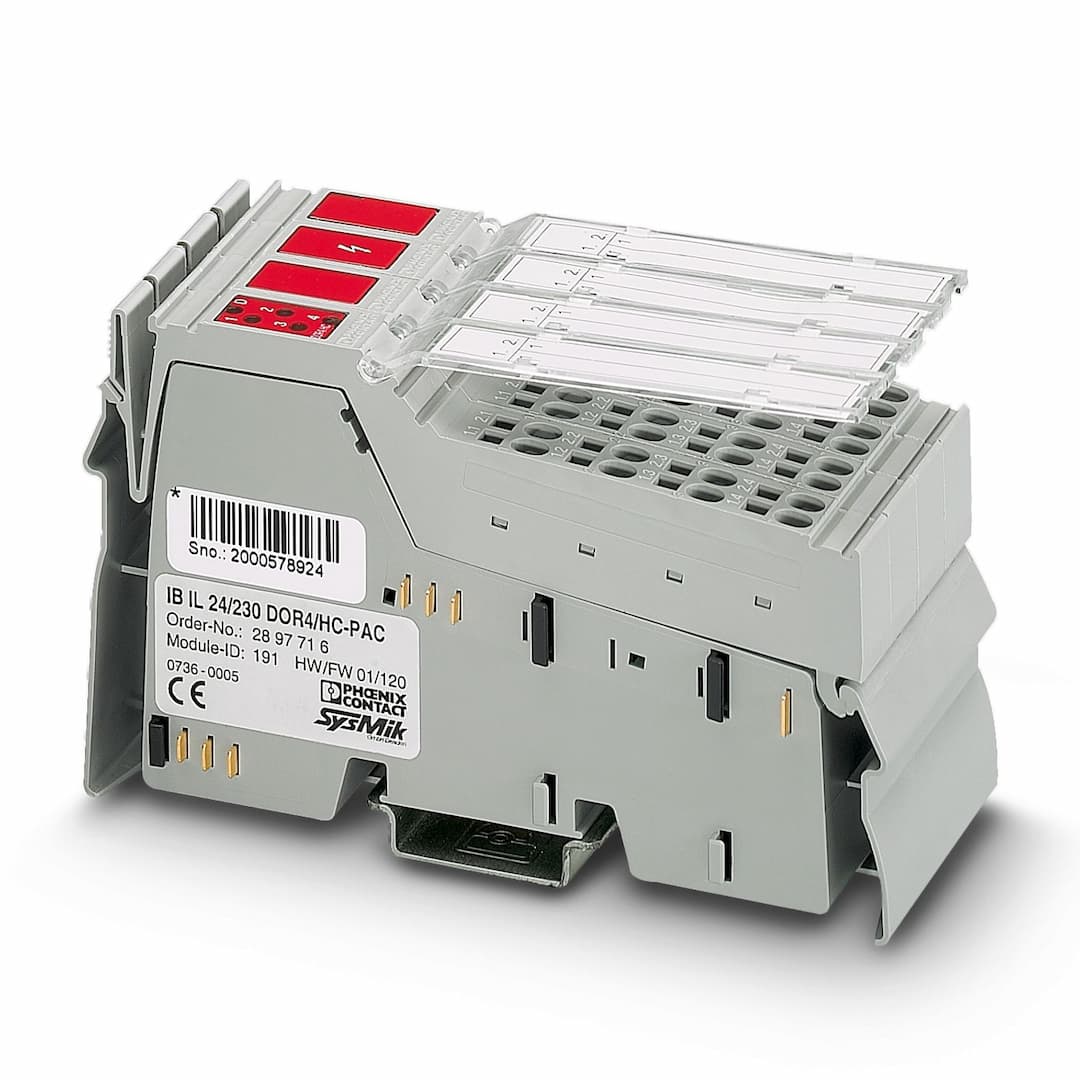

Product Model
IB IL 24/230 DOR4/HC-PAC
Selling Points
- 1Four floating relay contacts for versatile actuator connections.
- 2Safe isolation according to EN 50178 for enhanced safety.
- 3Nominal current of 10 A with high inrush current capability.
- 4Diagnostic and status indicators for easy monitoring.
- 5Compact design with dimensions of 48.8 mm x 119.8 mm x 71.5 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 09 | Length code (dec) | 9 |
Process data channel | 8 bit | Input address area | 1 Byte |
Output address area | 8 bit | Register length | 8 bit |
Required parameter data | 5 Byte | Required configuration data | 5 Byte |
Number of outputs | 4 (floating) | Connection method | Spring-cage connection |
Contact switching type | N/O contact | Switching voltage | max. 250 V DC
min. 5 V DC |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connectors and marking fields |
No. of channels | 4 | Special properties | high inrush current |
Article revision | 02 | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 34 mA | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 10 mA (maximum 55 mA during the switching process (duration of approximately 25 ms per switched relay)) |
Test voltage: Relay contact / Bus logics | 4 kV, 50 Hz, 1 min | Test voltage: Contact/contact | 1 kV, 50 Hz, 1 min |
Test voltage: Contact / PE | 1 kV, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 0 % ... 85 % (non-condensing) |
Permissible humidity (storage/transport) | 0 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
