Product Model

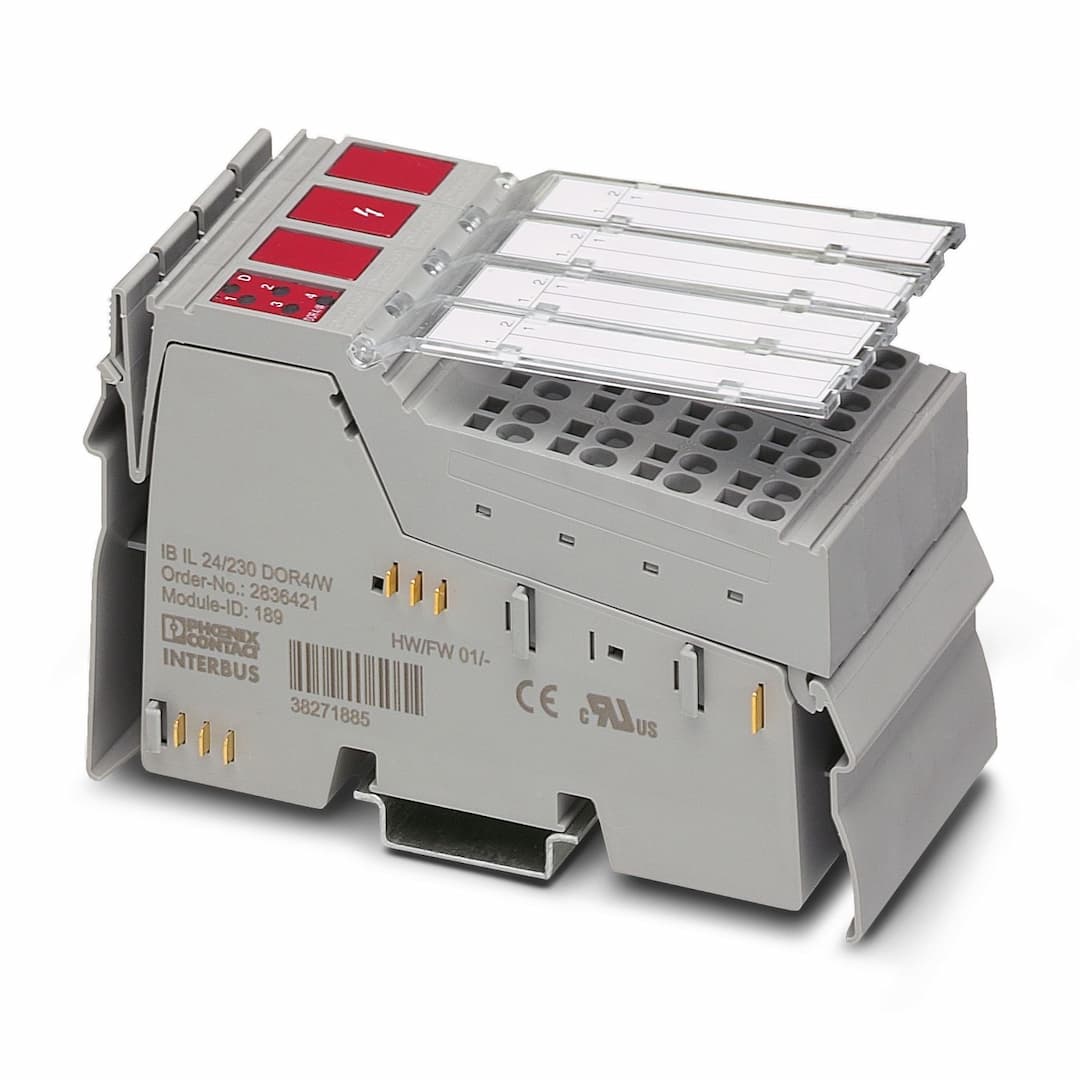

IB IL 24/230 DOR4/W-2MBD-PAC
Selling Points
- 1High-Performance Relay Control: Features four floating SPDT relay contacts for versatile connection options.
- 2Efficient Interfacing: Designed for seamless integration within Inline stations, ensuring efficient signal processing.
- 3Robust Construction: Built with gold-plated contacts for superior conductivity and resistance to corrosion.
- 4Enhanced Reliability: Capable of handling up to 253 V AC at 3 A, making it suitable for a wide range of load requirements.
- 5Easy Installation: Includes all necessary accessories like a connection plug and labeling field for easy installation and clear identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Scope of delivery | including Inline connectors and marking fields |
No. of channels | 4 | ID code (dec.) | 189 |
ID code (hex) | BD | Length code (hex) | 41 |
Length code (dec) | 65 | Process data channel | 4 bit |
Input address area | 0 Byte | Output address area | 4 bit |
Register length | 4 bit | Required parameter data | 3 Byte |
Required configuration data | 4 Byte | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 35 mA | Test voltage: Relay contact / Bus logics | 4 kV, 50 Hz, 1 min |
Test voltage: Contact/contact | 1 kV, 50 Hz, 1 min | Test voltage: Contact / PE | 1 kV, 50 Hz, 1 min |
Output name | Relay output | Connection method | Spring-cage connection |
Connection technology | floating changeover relay contact | Number of outputs | 4 |
Protective circuit | Overload protection, short-circuit protection of outputs | Maximum output current per channel | 3 A |
Output voltage range | 5 V AC ... 253 V AC | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Inline data jumper |
Transmission speed | 2 Mbps | Width | 48.8 mm |
Height | 119.8 mm | Depth | 71.5 mm |
Note on dimensions | Housing dimensions | Color | gray |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
