Product Model

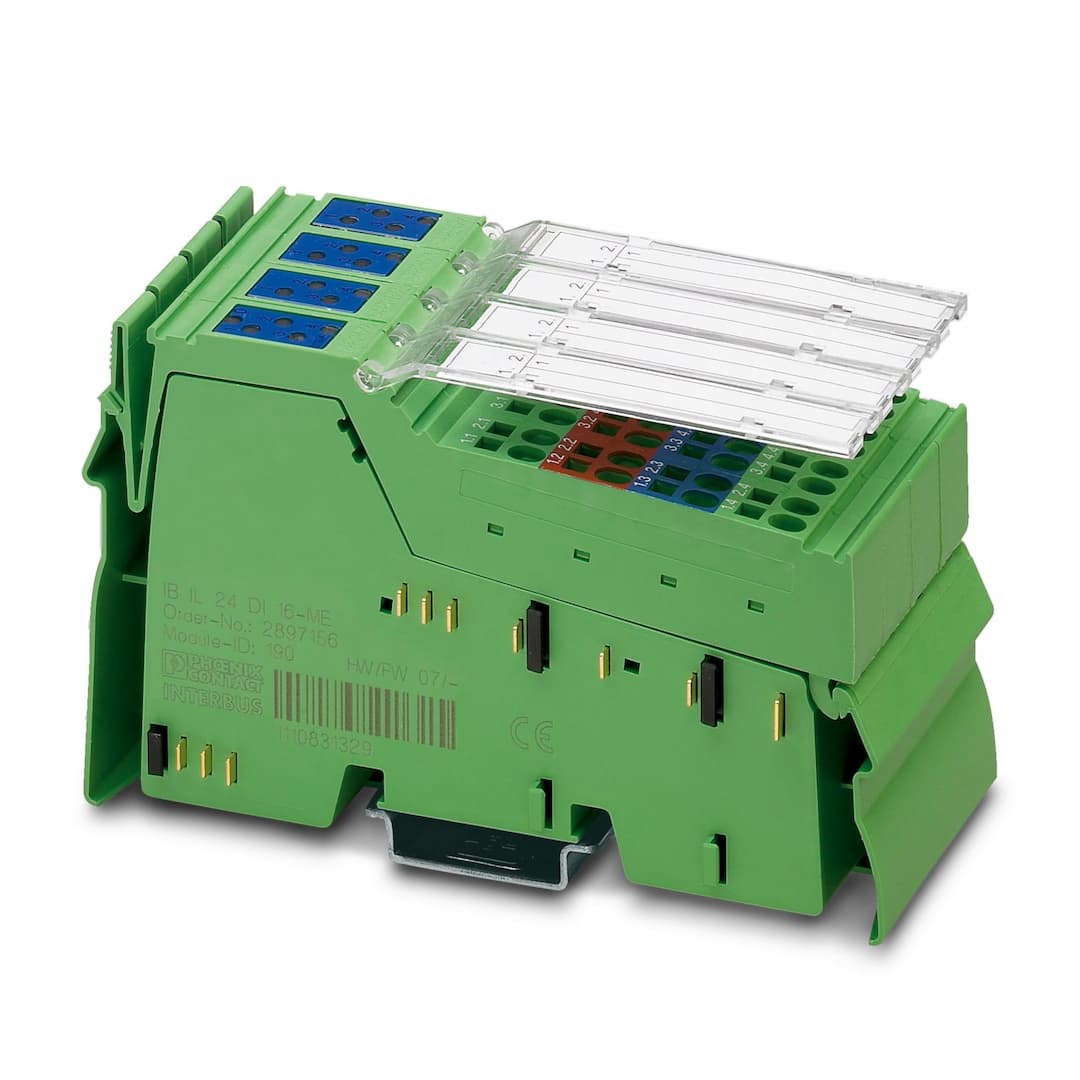

IB IL 24 DI 16-ME
Selling Points
- 116 Digital Inputs: Connect up to 16 digital sensors for comprehensive signal acquisition.
- 22 and 3-Wire Sensor Connections: Easily connect sensors in both 2 and 3-wire technologies.
- 3Diagnostic and Status Indicators: Monitor terminal status with built-in diagnostic and status indicators.
- 4High Reliability: Designed for use within Inline stations, ensuring reliable operation in various conditions.
- 5Compact Design: Measures 48.8 mm x 120 mm x 71.5 mm, ideal for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
ID code (dec.) | 190 | ID code (hex) | BE |
Length code (hex) | 01 | Length code (dec) | 01 |
Process data channel | 16 bit | Input address area | 2 Byte |
Output address area | 0 Byte | Register length | 16 bit |
Required parameter data | 1 Byte | Required configuration data | 4 Byte |
Input name | Digital inputs | Description of the input | EN 61131-2 type 1 |
Number of inputs | 16 | Cable length | max. 30 m (to the sensor) |
Connection method | Spring-cage connection | Connection technology | 3-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -3 V DC ... 5 V |
Input voltage range "1" signal | 15 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
Nominal input current at U | min. 3 mA (at nominal voltage) | Sensor current per channel | max. 250 mA |
Typical response time | < 1 ms | Delay at signal change from 0 to 1 | 1 ms |
Delay at signal change from 1 to 0 | 1 ms | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connectors and marking fields | No. of channels | 16 |
Operating mode | Process data mode with one word | Article revision | 03 |
Maximum power dissipation for nominal condition | 1.6 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 60 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 4 A
min. 0 A (No-load) |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
