IB IL 24 DI 16-XC-PAC

In Stock
Last updated: 2025/4/17
Phoenix Contact IB IL 24 DI 16-XC-PAC

Selling Points

  • 116 Digital Inputs: Connects up to 16 digital sensors for comprehensive data acquisition.
  • 22 and 3-Wire Technology: Supports various sensor connection methods for flexibility.
  • 3Diagnostic Indicators: Provides real-time status and diagnostic information for easy monitoring.
  • 4High Reliability: Designed for use in potentially explosive areas with short-circuit and overload protection.
  • 5Easy Integration: Compatible with Phoenix Contact's Inline system, ensuring seamless integration into your automation setup.
Product Details

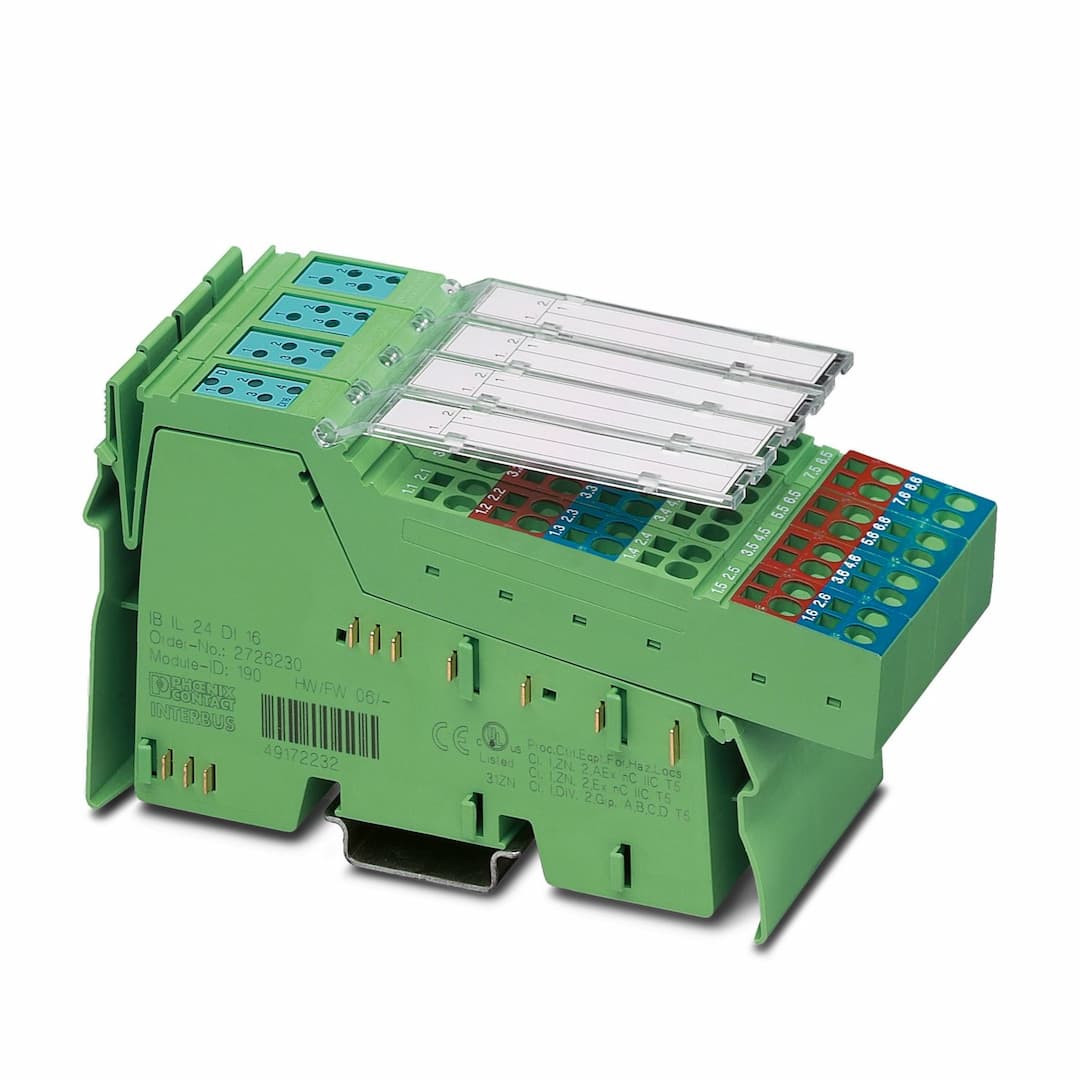

IB IL 24 DI 16-XC-PAC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Width
48.8 mm
Height
140.5 mm
Depth
71.5 mm
Note on dimensions
Housing dimensions
Number of interfaces
2
Connection method
Inline data jumper
Transmission speed
500 kbps
ID code (dec.)
190
ID code (hex)
BE
Length code (hex)
01
Length code (dec)
01
Process data channel
16 bit
Input address area
2 Byte
Output address area
0 Byte
Register length
16 bit
Required parameter data
1 Byte
Required configuration data
4 Byte
Input name
Digital inputs
Description of the input
EN 61131-2 type 1
Number of inputs
16
Connection method
Spring-cage connection
Connection technology
3-conductor
Input voltage
24 V DC
Input voltage range "0" signal
-3 V DC ... 5 V DC
Input voltage range "1" signal
15 V DC ... 30 V DC
Nominal input voltage U
24 V DC
Nominal input current at U
min. 3 mA (at nominal voltage)
Sensor current per channel
max. 250 mA
Typical response time
< 1 ms
Delay at signal change from 0 to 1
1 ms
Delay at signal change from 1 to 0
1 ms
Product type
I/O component
Product family
Inline
Type
modular
Scope of delivery
including Inline connectors and marking fields
No. of channels
16
Operating mode
Process data mode with one word
Special properties
Extreme conditions version
Article revision
02
Maximum power dissipation for nominal condition
14.5 W
Protective circuit
Surge protection; Protective elements in the power terminal or the bus coupler Reverse polarity protection; Protective elements in the power terminal or the bus coupler
Supply voltage
7.5 V DC
Current draw
max. 60 mA
Supply voltage
24 V DC (via voltage jumper)
Supply voltage range
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw
max. 4 A 0 A
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O)
500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground
500 V AC, 50 Hz, 1 min
Test voltage: 7.5 V supply (bus logic)/functional ground
500 V AC, 50 Hz, 1 min
Connection name
Inline connector
Connection method
Spring-cage connection
Conductor cross section rigid
0.08 mm² ... 1.5 mm²
Conductor cross section flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Connection method
Spring-cage connection
Conductor cross section, rigid
0.08 mm² ... 1.5 mm²
Conductor cross section, flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Ambient temperature (operation)
-25 °C ... 55 °C (Standard) -40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.)
Degree of protection
IP20
Air pressure (operation)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Protection class
III (IEC 61140, EN 61140, VDE 0140-1)
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
