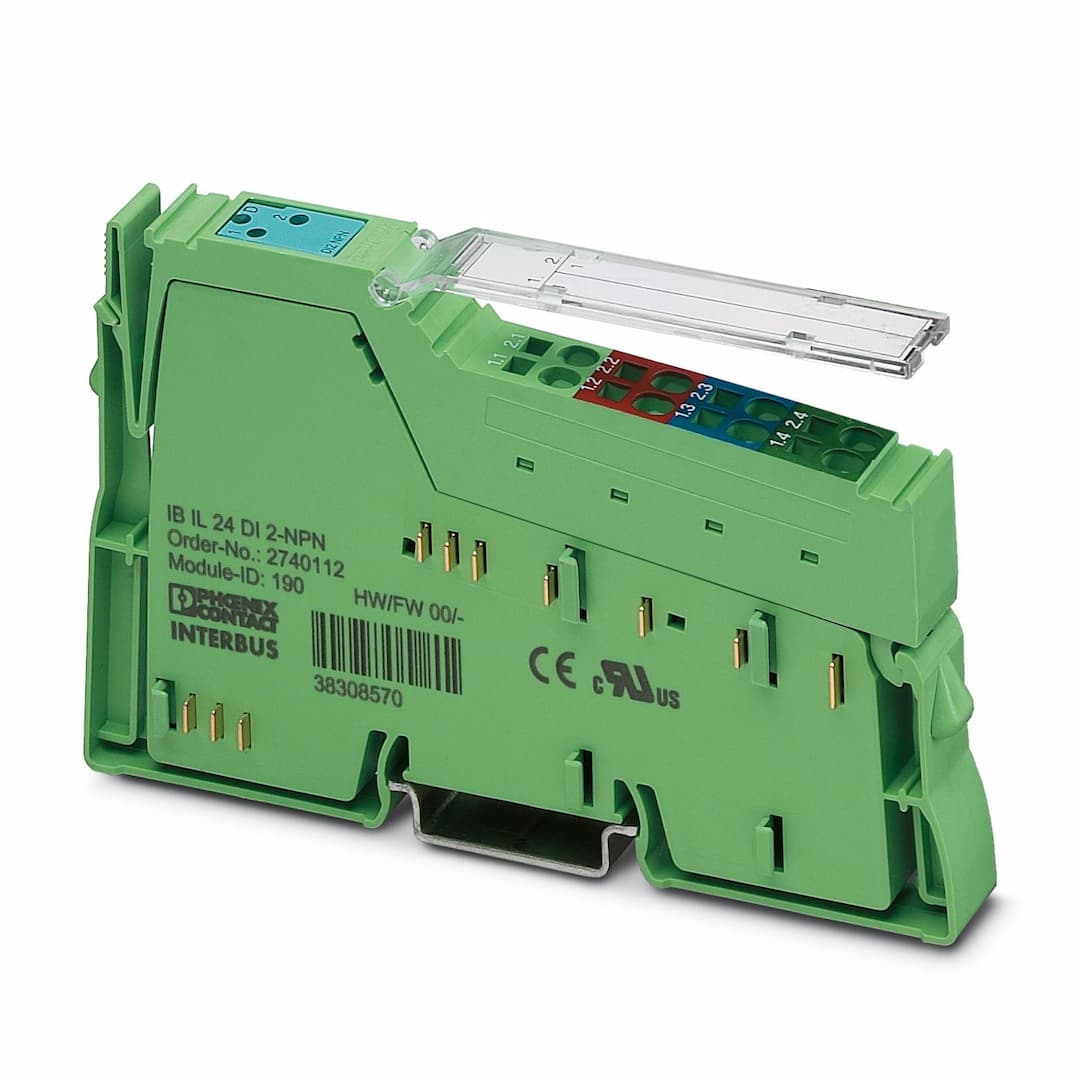

Product Model
IB IL 24 DI 2-NPN-PAC
Selling Points
- 1High-Performance Digital Inputs: Connects 2 digital sensors in 2, 3, and 4-wire technology.
- 2Robust Design: Operates in ambient temperatures from -25°C to 55°C and humidity levels of 10% to 95%.
- 3Compact Size: Dimensions are 12.2 mm wide, 119.8 mm high, and 71.5 mm deep.
- 4Diagnostic Indicators: Includes diagnostic and status indicators for easy monitoring.
- 5Durable Construction: Meets EMC class A standards and has an IP20 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
CCCex note | Use in potentially explosive areas is not permitted in China. | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
ID code (dec.) | 190 | ID code (hex) | BE |
Length code (hex) | C2 | Length code (dec) | 194 |
Process data channel | 2 bit | Input address area | 2 bit |
Output address area | 0 Byte | Register length | 2 bit |
Required parameter data | 1 Byte | Required configuration data | 4 Byte |
Input name | Digital inputs | Description of the input | EN 61131-2 type 1 |
Number of inputs | 2 (NPN) | Connection method | Spring-cage connection |
Connection technology | 4-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -3 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Typical response time | < 1 ms |
Protective circuit | Short-circuit and overload protection | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | No. of channels | 2 |
Article revision | 08 | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 35 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 0.5 A |
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
