Product Model

IB IL 24 DI 4-XC-PAC

In Stock
Last updated: 2025/4/17

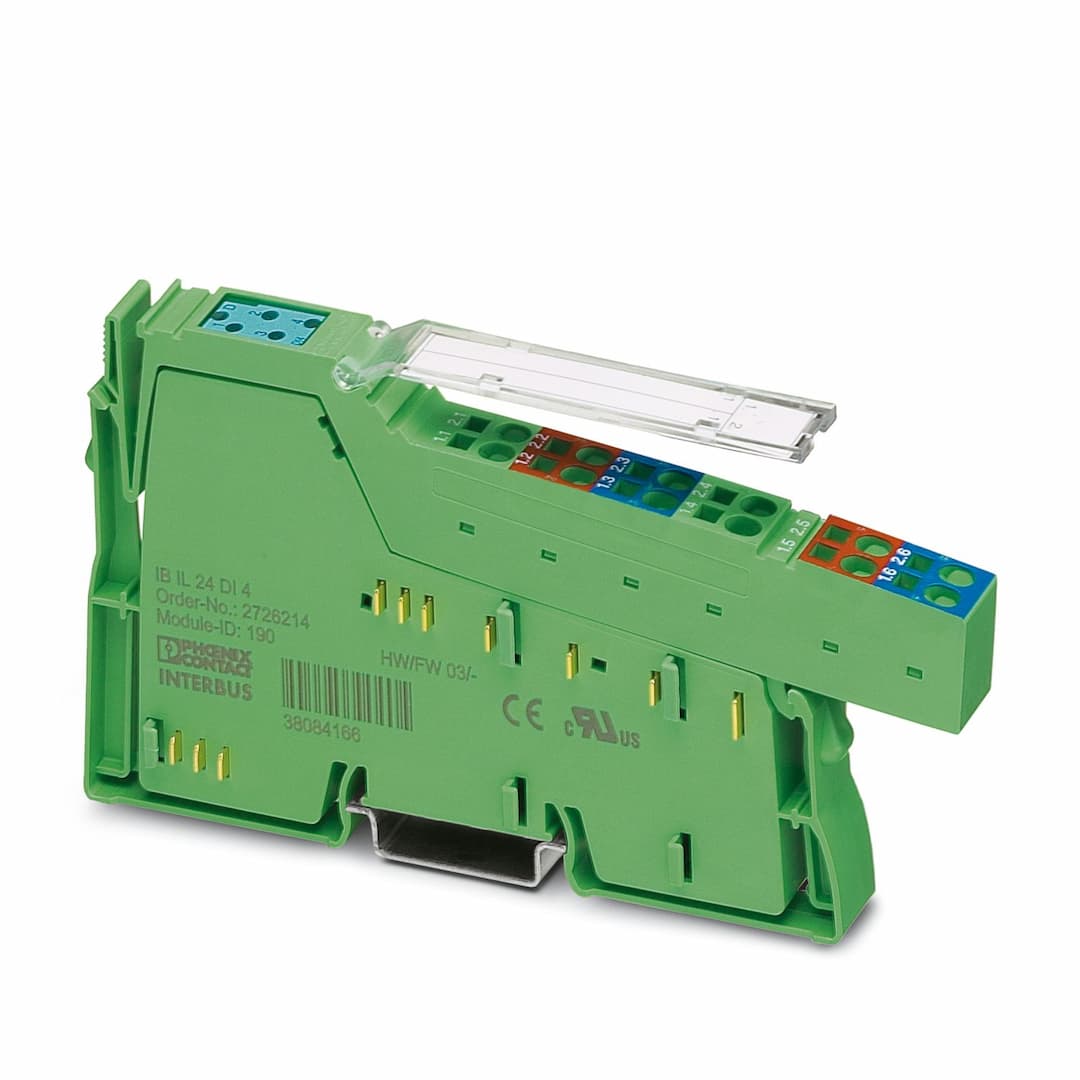

Phoenix Contact IB IL 24 DI 4-XC-PAC

Selling Points

  • 1Equipped with overload and short-circuit protection for reliable operation.
  • 2Operates in temperatures from -40°C to 55°C, making it ideal for harsh environments.
  • 3Supports 3-wire connection technology for efficient actuator connection.
  • 4Includes diagnostic messages for short-circuit or overload errors via LED indicators.
  • 5Mounts easily on DIN rail with dimensions of 12.2 mm x 140.5 mm x 71.5 mm.
Product Details
IB IL 24 DI 4-XC-PAC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Width
12.2 mm
Height
140.5 mm
Depth
71.5 mm
Note on dimensions
Housing dimensions
Note on application
Only for industrial use
Number of interfaces
2
Connection method
Inline data jumper
Transmission speed
500 kbps
ID code (dec.)
190
ID code (hex)
BE
Length code (hex)
41
Length code (dec)
65
Process data channel
4 bit
Input address area
4 bit
Output address area
0 Byte
Register length
4 bit
Required parameter data
1 Byte
Required configuration data
4 Byte
Input name
Digital inputs
Description of the input
EN 61131-2 type 1
Number of inputs
4
Connection method
Spring-cage connection
Connection technology
3-conductor
Input voltage
24 V DC
Input voltage range "0" signal
-3 V DC ... 5 V DC
Input voltage range "1" signal
15 V DC ... 30 V DC
Nominal input voltage U
24 V DC
Nominal input current at U
min. 3 mA (at nominal voltage)
Sensor current per channel
max. 250 mA
Typical response time
< 1 ms
Protective circuit
Short-circuit and overload protection
Product type
I/O component
Product family
Inline
Type
modular
Scope of delivery
including Inline connector and labeling field
No. of channels
4
Operating mode
Process data operation with 4 bits
Special properties
Extreme conditions version
Article revision
02
Protective circuit
Surge protection; Protective elements in the power terminal or the bus coupler Reverse polarity protection; Protective elements in the power terminal or the bus coupler
Supply voltage
7.5 V DC
Current draw
max. 40 mA
Supply voltage
24 V DC (via voltage jumper)
Supply voltage range
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw
max. 1 A 0 A
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics)
500 V AC, 50 Hz, 1 min
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics)
500 V AC, 50 Hz, 1 min
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O)
500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground
500 V AC, 50 Hz, 1 min
Connection name
Inline connector
Connection method
Spring-cage connection
Conductor cross section rigid
0.08 mm² ... 1.5 mm²
Conductor cross section flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Connection method
Spring-cage connection
Conductor cross section, rigid
0.08 mm² ... 1.5 mm²
Conductor cross section, flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Ambient temperature (operation)
-25 °C ... 55 °C (Standard) -40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.)
Degree of protection
IP20
Air pressure (operation)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Permissible humidity (operation)
10 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)
10 % ... 95 % (according to DIN EN 61131-2)
Protection class
III (IEC 61140, EN 61140, VDE 0140-1)
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
