Product Model

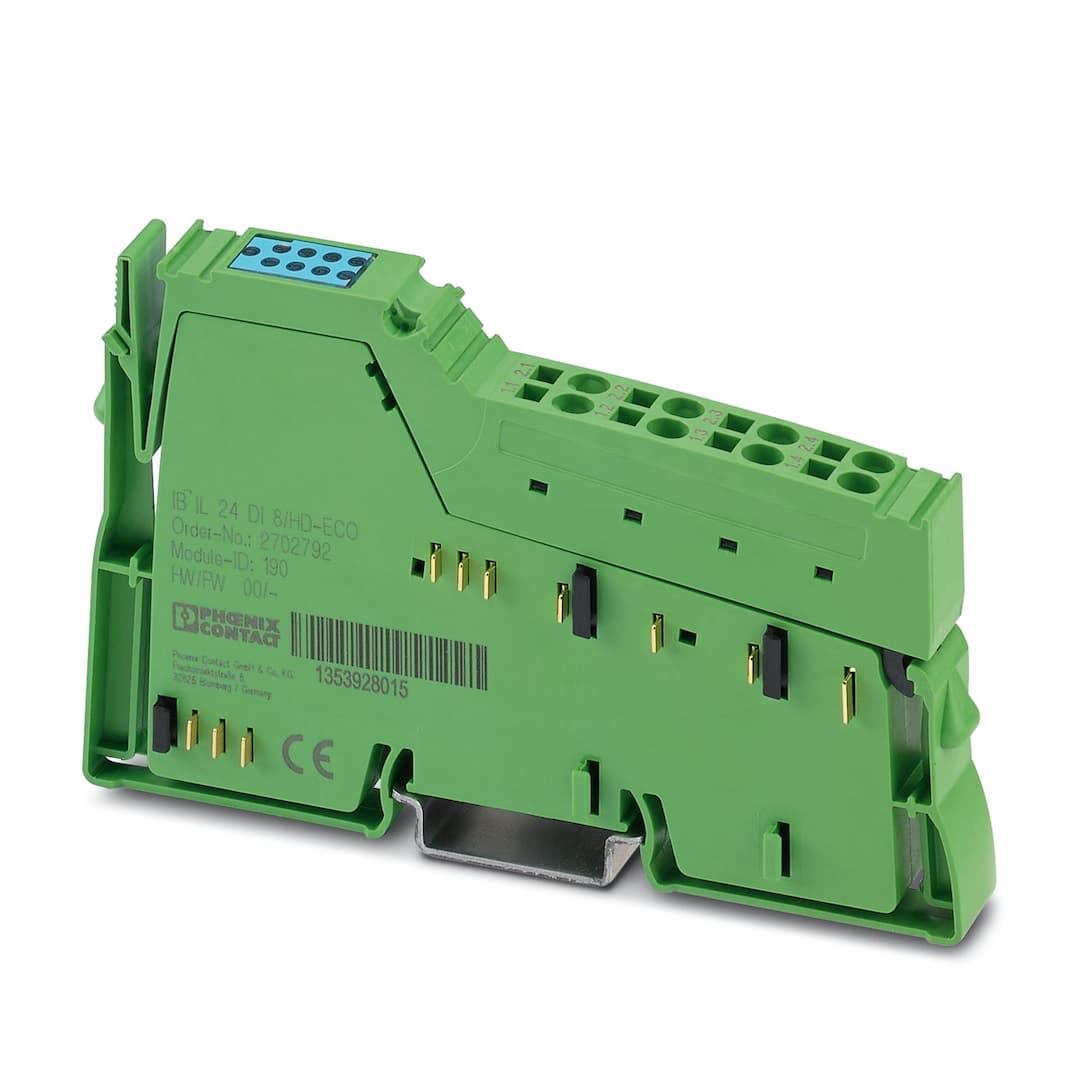

IB IL 24 DI 8/HD-ECO
Selling Points
- 18 digital inputs for acquiring and processing digital signals.
- 2Compatible with 24 V DC, ensuring reliable operation in various industrial settings.
- 3Transmission speed of 500 kbps for efficient data transfer within the local bus.
- 4Designed for use within an Inline station, enhancing system integration and control.
- 5IP20 degree of protection, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
ID code (dec.) | 190 | ID code (hex) | BE |
Length code (hex) | 81 | Length code (dec) | 129 |
Process data channel | 8 bit | Input address area | 1 Byte |
Output address area | 0 Byte | Register length | 8 bit |
Required parameter data | 1 Byte | Required configuration data | 4 Byte |
Input name | Digital inputs | Description of the input | EN 61131-2 types 1 and 3 |
Number of inputs | 8 | Connection method | Spring-cage connection |
Connection technology | 1-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -3 V DC ... 5 V DC | Input voltage range "1" signal | 11 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Nominal input current at U | typ. 2.4 mA |
Typical input current per channel | 2.4 mA | Typical response time | 1 ms |
Delay at signal change from 0 to 1 | 1 ms | Delay at signal change from 1 to 0 | 1 ms |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector |
No. of channels | 8 | Operating mode | Process data mode with one byte |
Article revision | 05 | Maximum power dissipation for nominal condition | 0.8 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 30 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 5.5 mA | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | 0 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
