Product Model

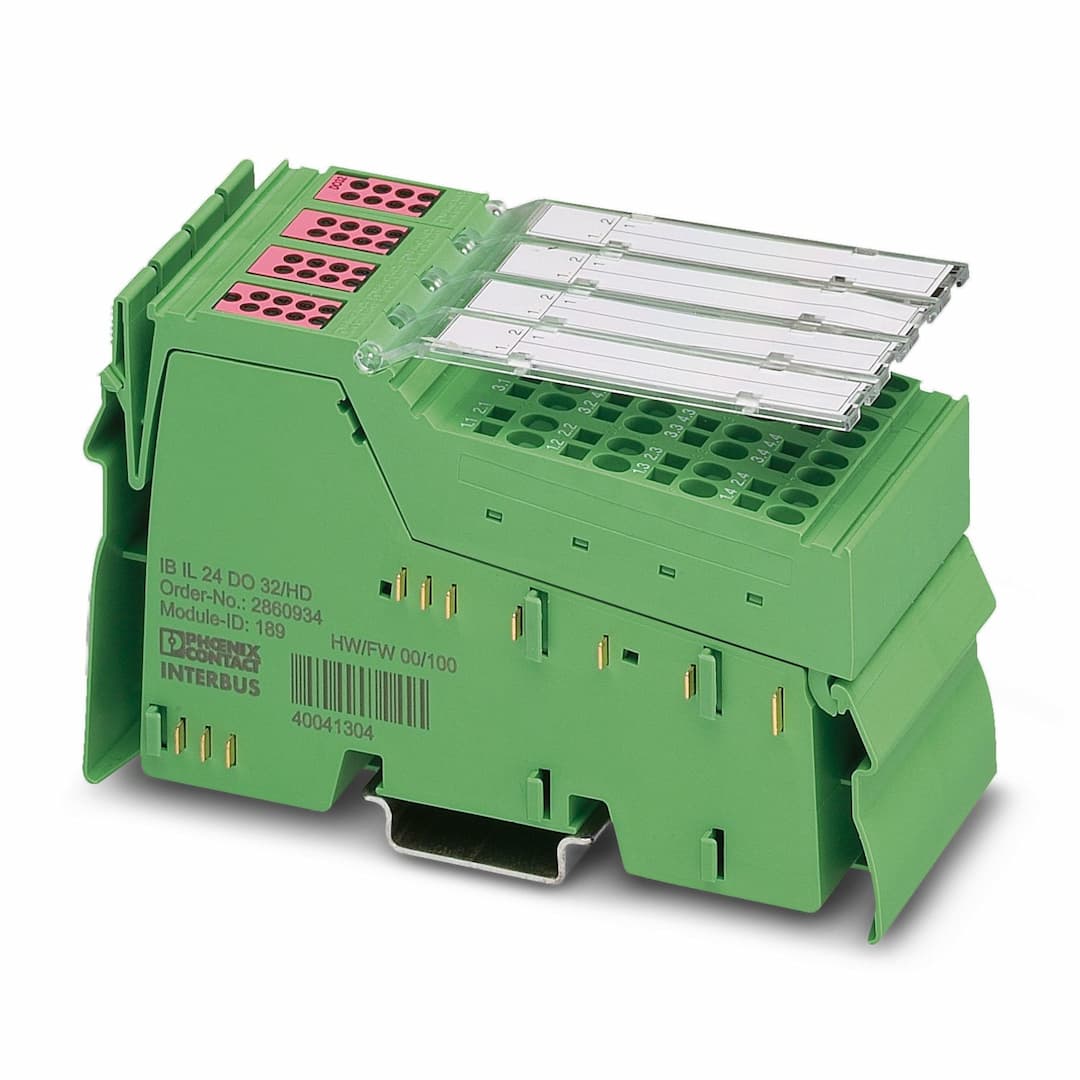

IB IL 24 DO 32/HD-NPN
Selling Points
- 1The IB IL 24 DO 32/HD-NPN offers 32 NPN outputs for efficient digital signal management.
- 2Built with a robust design for reliable performance in industrial environments.
- 3Compact dimensions (48.8 mm x 119.8 mm x 71.5 mm) for easy integration into Inline stations.
- 4Convenient DIN rail mounting for easy installation and space-saving design.
- 5Equipped with overload and short-circuit protection for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Color | green | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (dec.) | 189 |
ID code (hex) | BD | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 0 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 6 Byte |
Output name | Digital outputs | Output description | With negative logic |
Connection method | Spring-cage connection | Connection technology | 1-conductor |
Number of outputs | 32 | Protective circuit | Short-circuit and overload protection |
Output voltage | 24 V (U | Maximum output current per channel | 500 mA |
Maximum output current per module | 8 A | Nominal output voltage | 24 V DC (voltage difference at I |
Nominal load, inductive | 12 VA | Nominal load, lamp | 12 W |
Nominal load, ohmic | 12 W | Behavior with overload | Auto restart |
Behavior with inductive overload | Output can be destroyed | Behavior at voltage switch-off | The output follows the power supply without delay |
Product type | I/O component | Product family | Inline |
Type | modular | No. of channels | 32 |
Diagnostics messages | Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 140 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 8 A |
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
