Product Model

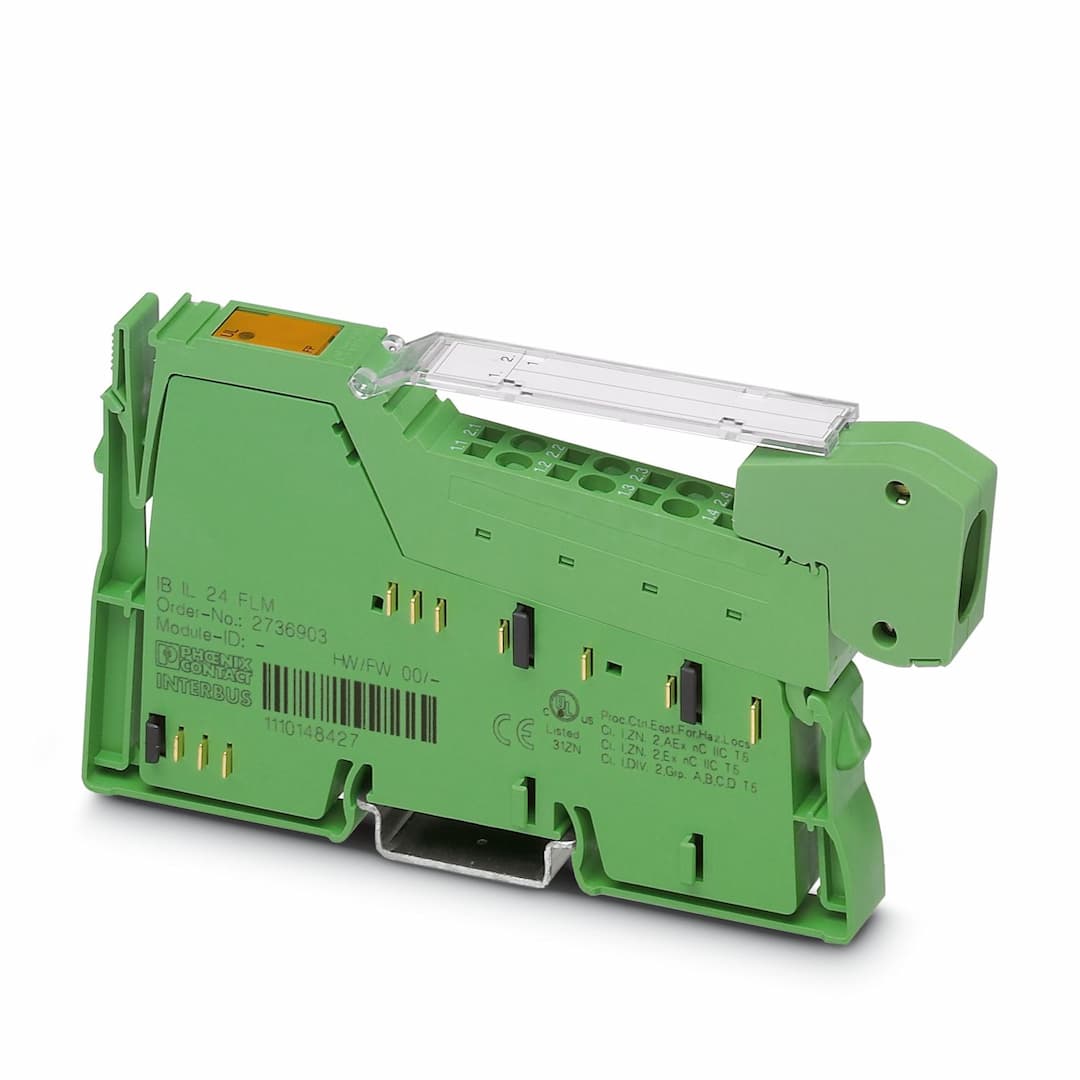

IB IL 24 FLM-PAC
Selling Points
- 1Connects Fieldline Modular M8 and M12 local buses to Inline Modular systems.
- 2Integrates sensors and actuators in close proximity to the station.
- 3Operates within a wide temperature range of -25 °C to 55 °C.
- 4Features IP20 protection for reliable operation in various environments.
- 5Supports transmission speeds of 500 kbps/2 Mbps for efficient data transfer.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 136.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | CCCex note | Use in potentially explosive areas is not permitted in China. |
Number of interfaces | 1 (incoming local bus) | Connection method | Inline data jumper |
Transmission speed | 500 kbps / 2 Mbps (Can be used in Inline stations with these transmission speeds) | No. of channels | outgoing local bus |
Connection method | Inline shield connector | Note on the connection method | Standard INTERBUS cable |
Transmission speed | 500 kbps / 2 Mbps | ID code (dec.) | none |
ID code (hex) | none | Input address area | 0 Byte |
Output address area | 0 Byte | Register length | 0 Byte |
Required parameter data | 0 Byte | Required configuration data | 0 Byte |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
Special properties | for extending the Inline local bus | Article revision | 06 |
Maximum power dissipation for nominal condition | 0.85 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | 110 mA | Supply voltage | 24 V DC |
Current draw | max. 6 A (Fieldline Modular M8 local bus, with both-side supply; maximum 3 A for go and return line each)
max. 55 mA (internal) | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % (On average, 85 % occasionally) |
Permissible humidity (storage/transport) | 75 % (On average, 85 % occasionally) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
