Product Model

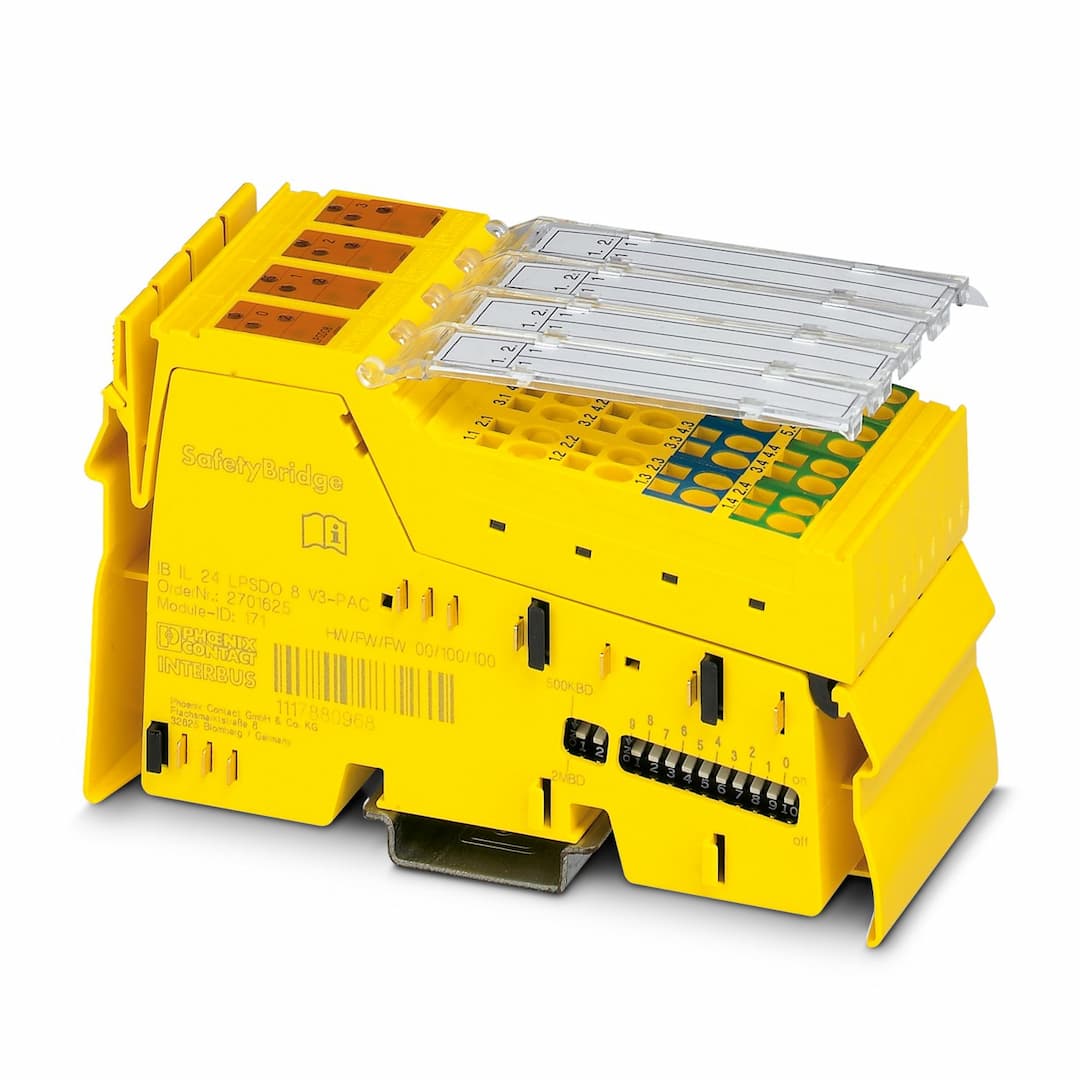

IB IL 24 LPSDO 8 V3-PAC
Selling Points
- 1Configurable safety logic ensures robust safety functions in industrial settings.
- 2Four safe digital outputs with two-channel assignment or eight safe digital outputs for single-channel assignment.
- 3Supports up to SIL 3 according to IEC 61508 and SIL CL 3 according to EN 62061 standards.
- 4Set transmission speed to 500 kbaud or 2 Mbaud using a switch.
- 5Designed with IP20 protection for reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Connection method | Inline data jumper |
Transmission speed | 500 kbps / 2 Mbps (can be switched) | Connection to I/O modules | max. 16 (safe digital I/O modules) |
Logic memory | 30 kByte | ID code (dec.) | 171 |
ID code (hex) | AB | Length code (hex) | 18 |
Length code (dec) | 24 | Process data channel | 48 Byte |
Input address area | 48 Byte ((Operating mode: SafetyBridge 24 words)) | Output address area | 48 Byte ((Operating mode: SafetyBridge 24 words)) |
Register length | 48 Byte | Required parameter data | 1 Byte ((Operating mode: SafetyBridge 24 words)) |
Required configuration data | 5 Byte ((Operating mode: SafetyBridge 24 words)) | Output name | Digital outputs |
Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
Number of outputs | 4 (for 2-channel assignment)
8 (for 1-channel assignment)
8 | Protective circuit | Overload protection, short-circuit protection of outputs |
Output voltage | 24 V DC (U | Output current | max. 6 A (Total current of all outputs, -25 °C ... 50 °C)
max. 4 A (Total current of all outputs, >50 °C ... 55 °C) |
Maximum output current per group | 3 A | Maximum output current per channel | 2 A |
Nominal output voltage | 24 V DC | Nominal load, inductive | see safety data |
Nominal load, lamp | see safety data | Nominal load, ohmic | see safety data |
Behavior with inductive overload | Output can be destroyed | Product type | I/O component |
Product family | Inline | Application | Functional safety |
Type | modular | Diagnostics messages | Short-circuit or overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor |
Article revision | 03 | Maximum power dissipation for nominal condition | 150 W |
Supply voltage | 7.5 V DC (see safety data) | Current draw | max. 230 mA (see safety data) |
Supply voltage | 24 V DC (see safety data) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 6.03 A
typ. 30 mA (all outputs set including actuator current) | Supply voltage | 24 V (see safety data) |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC |
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | pluggable | yes |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
