Product Model

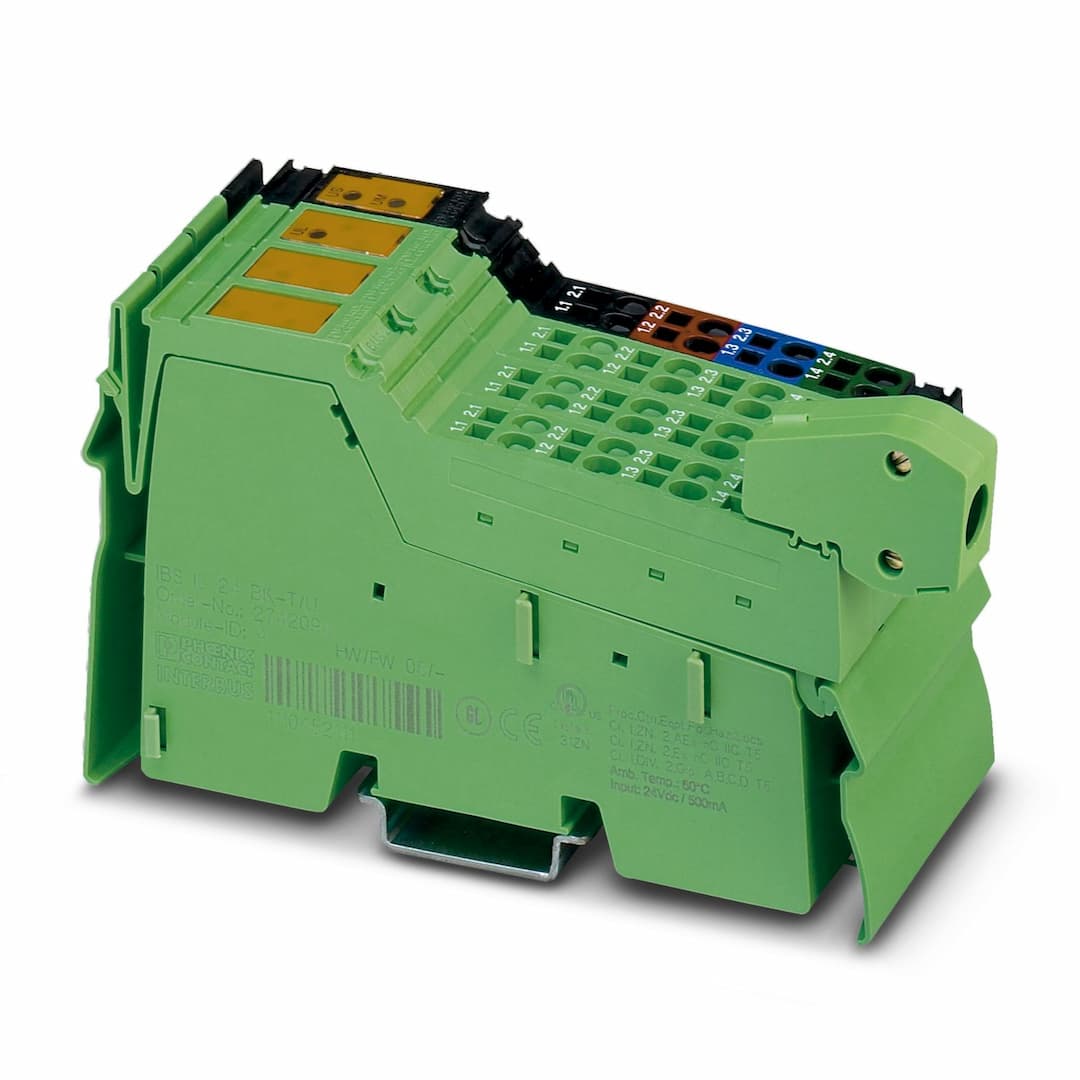

IB IL 24 LSKIP
Selling Points
- 1Provides all necessary voltages for low-level signals in Inline stations.
- 2Enables data transmission between terminals via the RS-422 protocol.
- 3Offers surge protection for segment supply, main supply, and 24 V supply.
- 4Designed for modular use with Inline connectors and marking fields.
- 5Built to withstand ambient temperatures from -25°C to 55°C and IP20 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Number of devices with parameter channel | 63 |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks)
typ. 60 mA (without connected Inline I/O terminals) | Supply voltage | 7.5 V DC |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Number of interfaces | 1 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Number of interfaces | 1 |
Connection method | Inline shield connector | Transmission speed | 500 kbps |
Transmission physics | Copper | Width | 48.8 mm |
Height | 119.8 mm | Depth | 71.5 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
