Product Model

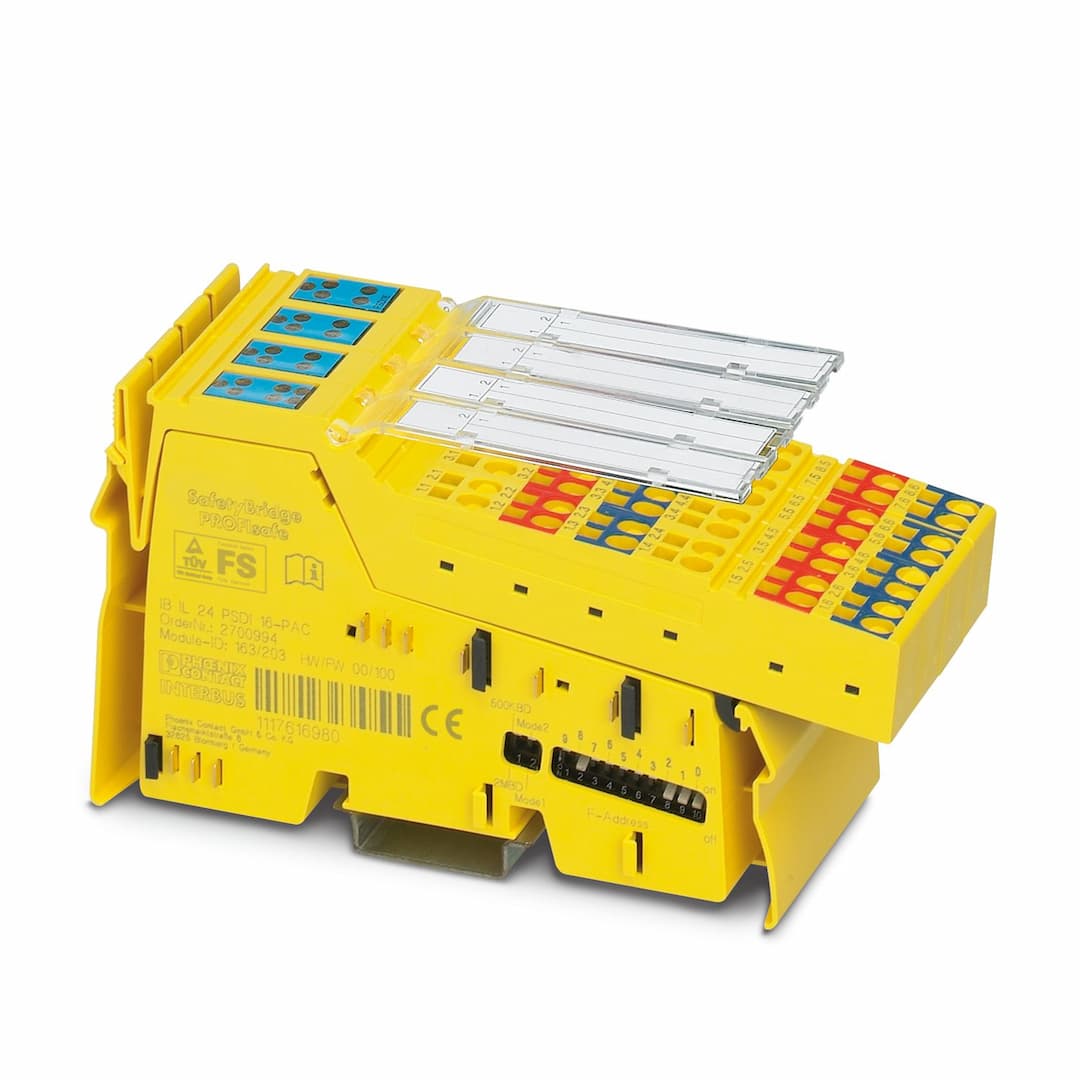

IB IL 24 PSDI 16-PAC

Selling Points
- 1Set transmission speed and address via 2-pos. and 10-pos. DIP switches.
- 2Meets SIL 3, SIL CL 3, and Cat. 4/PL e safety standards.
- 38 safe digital inputs for two-channel assignment or 16 for single-channel assignment.
- 4IP20 protection and designed for surge voltage category II.
- 5Compatible with SafetyBridge V3 and PROFIsafe systems for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Width | 48.8 mm | Height | 141 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | No. of channels | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps (can be switched) |
ID code (dec.) | 163 | ID code (hex) | A3 |
Length code (hex) | 04 | Length code (dec) | 04 |
Process data channel | 8 Byte | Input address area | 8 Byte ((Operating mode: SafetyBridge)) |
Output address area | 8 Byte ((Operating mode: SafetyBridge)) | Register length | 8 Byte |
Required parameter data | 1 Byte ((Operating mode: SafetyBridge)) | Required configuration data | 5 Byte ((Operating mode: SafetyBridge)) |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 3 |
Number of inputs | 8 (for 2-channel assignment)
16 (for 1-channel assignment) | Cable length | max. 500 m (200 m from the clock output to the safe input (total based on forward and return path)) |
Connection method | Spring-cage connection | Connection technology | 2-, 3-conductor |
Input voltage | 24 V DC (via clock outputs UT1 and UT2 or external supply) | Input voltage range | -3 V DC ... 30 V DC |
Input voltage range "0" signal | -3 V DC ... 5 V DC | Input voltage range "1" signal | 11 V DC ... 30 V DC |
Typical input current per channel | 2.7 mA (at 24 V) | Product type | I/O component |
Product family | Inline | Application | Functional safety |
Type | modular | Article revision | 06 |
Maximum power dissipation for nominal condition | 14.5 W | Transmission medium | Copper |
Supply voltage | 7.5 V DC (see safety data) | Current draw | max. 190 mA |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 415 mA
typ. 15 mA (plus current consumption of the inputs when supplied via the clock outputs, plus current consumption of the connected initiators when via through the clock outputs) | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC | Connection name | Inline connector |
pluggable | yes | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
