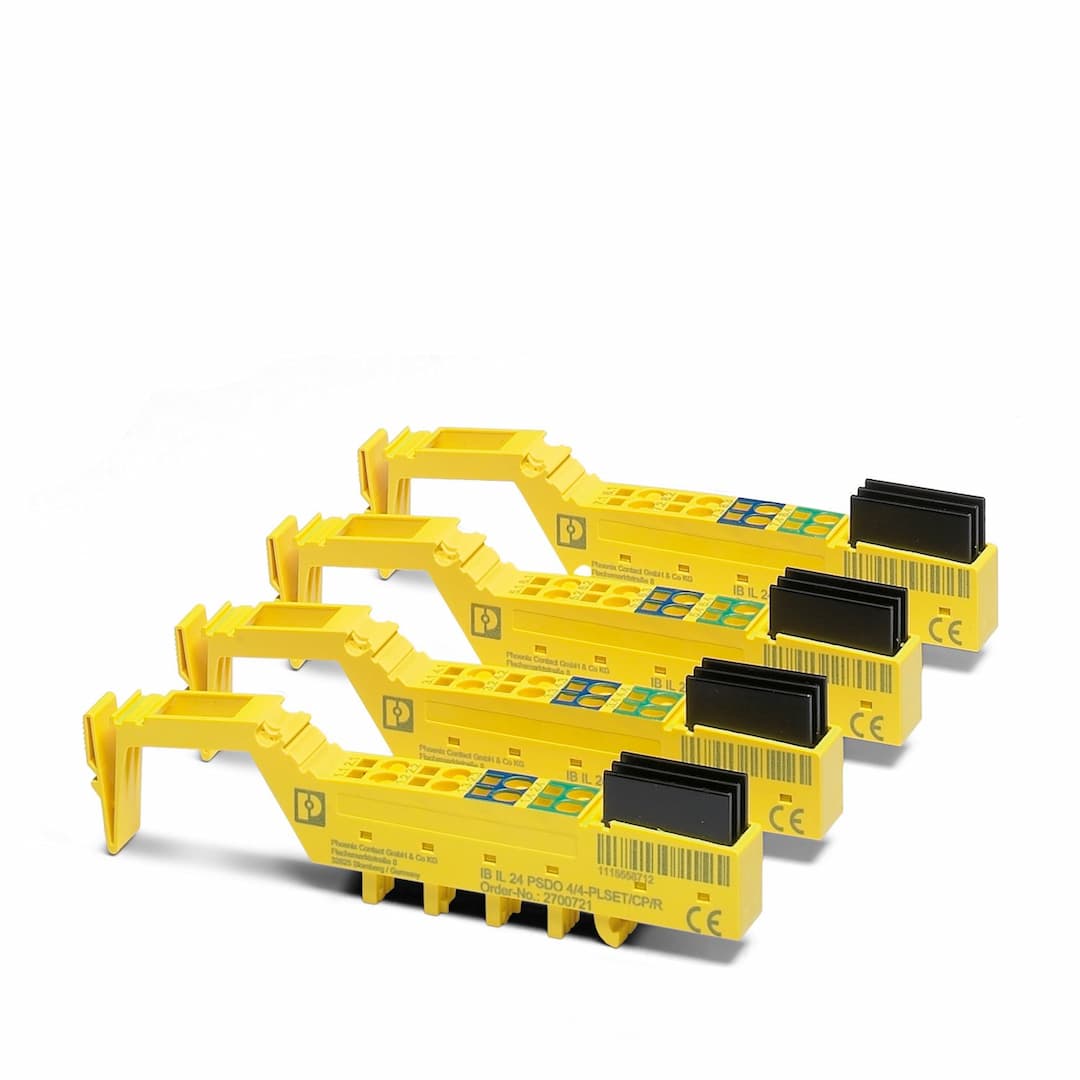

Product Model
IB IL 24 PSDO 4/4-PLSET/CP/R
Selling Points
- 1Enhances diagnostic options and fault detection.
- 2Convenient plug-in set for easy installation.
- 3Reliable product backed by a comprehensive warranty.
- 4Lightweight and space-efficient at 0.121 kg, 138 mm height, 34 mm depth, and 12.2 mm width.
- 5Optimizes safety diagnostics and fault detection in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Connector set |
Application | Inline terminals
Functional safety | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Width | 12.2 mm |
Height | 138 mm | Depth | 34 mm |
Note on dimensions | for each connector | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Specifications may be subject to change without notice
