Product Model

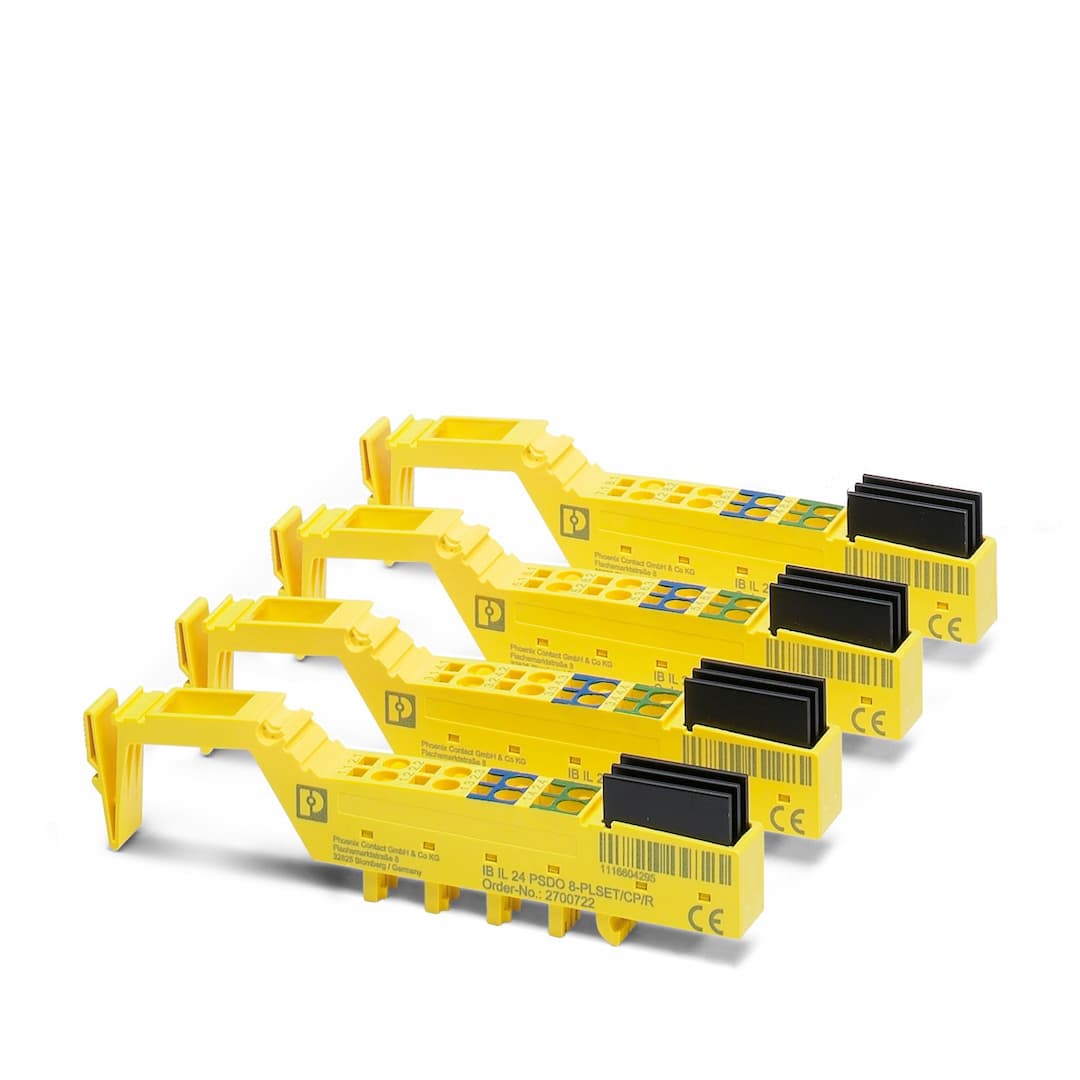

IB IL 24 PSDO 8-PLSET/CP/R
Selling Points
- 1Enhanced Diagnostic Capabilities: Optimizes diagnostic options and fault detection for safety applications.
- 2Integrated Discharge Electronics: Includes four Inline plugs with integrated discharge electronics.
- 3Improved Fault Detection: Ideal for operating external capacitive loads or cable capacitances.
- 4Durable Design: Designed for reliable performance in various ambient conditions.
- 5Comprehensive Compatibility: Compatible with a wide range of safety systems, including INTERBUS-Safety and PROFIsafe.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Connector set |
Application | Inline terminals
Functional safety | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Width | 12.2 mm |
Height | 138 mm | Depth | 34 mm |
Note on dimensions | for each connector | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Specifications may be subject to change without notice
