Product Model

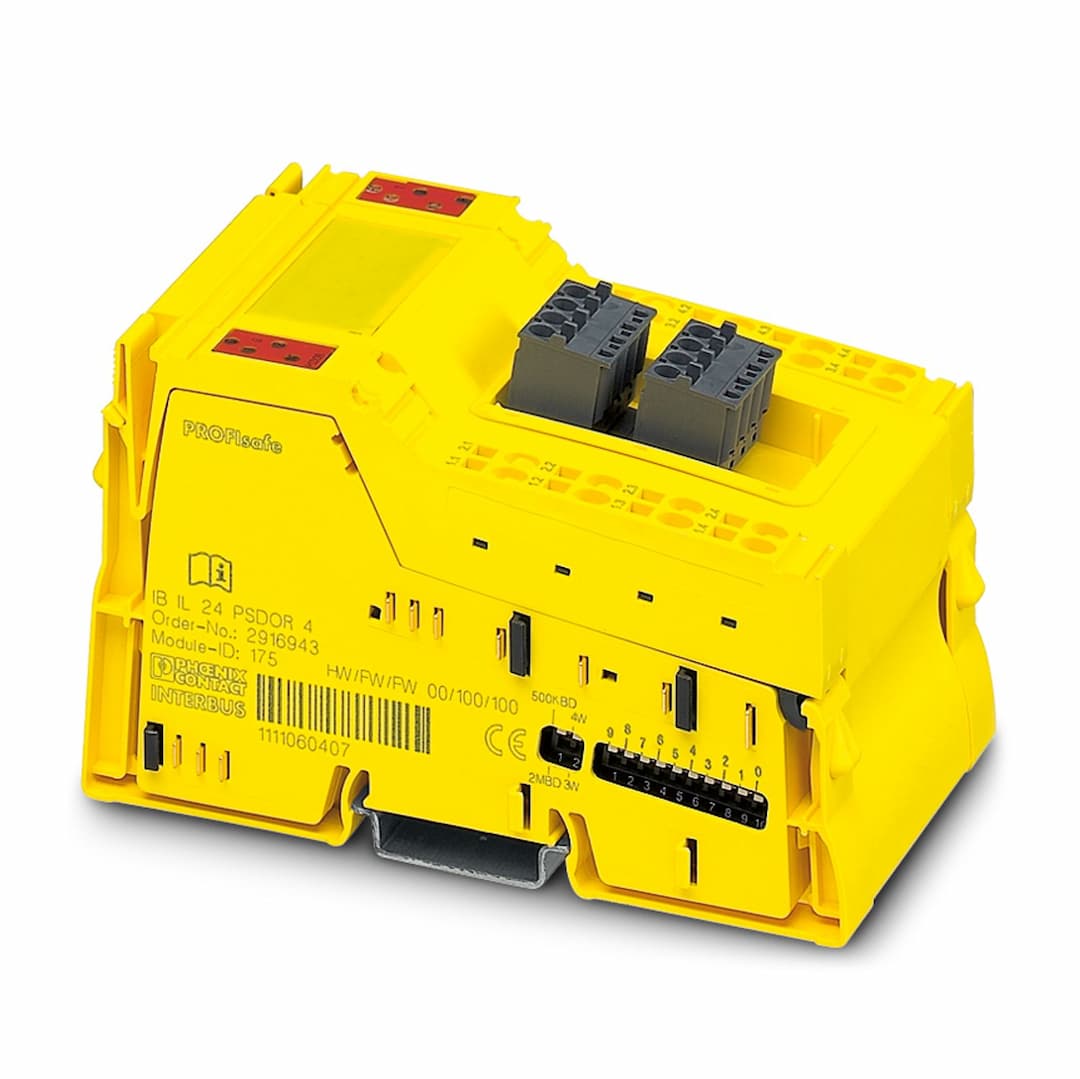

IB IL 24 PSDOR 4-F-PAC
Selling Points
- 1Meets IEC 61508 and EN 62061 standards for high safety integrity.
- 2Compliant with EN ISO 13849-1 for performance level e.
- 3Offers robust IP20 degree of protection for reliable operation.
- 4Set to 500 kbaud or 2 Mbaud using a switch.
- 5Each with two contacts for mirrored diagnostic purposes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 73.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | No. of channels | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps (can be switched) |
ID code (dec.) | 175 | ID code (hex) | AF |
Length code (hex) | 04 | Length code (dec) | 04 |
Number of outputs | 4 (Safety relays with 2 floating contacts each) | Connection method | Spring-cage connection |
Contact switching type | N/O contact | Product type | I/O component |
Product family | Inline | Application | Functional safety
PROFIsafe |
Type | modular | Article revision | 02 |
Maximum power dissipation for nominal condition | 8.7 W | Transmission medium | Copper |
Supply voltage | 7.5 V DC (see safety data) | Current draw | max. 360 mA |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) |
Current draw | typ. 30 mA | Supply voltage | 24 V |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC |
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic)/24 V supply (U | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (U | 500 V AC, 50 Hz, 1 min |
Test voltage: COMBICON X3 relay outputs/COMBICON X4 relay outputs, Inline connector relay outputs,7.5 V supply (bus logic), 24 V supply (U | 2500 V AC, 50 Hz, 1 min | Test voltage: COMBICON X4 relay outputs/COMBICON X3 relay outputs, Inline connector relay outputs,7.5 V supply (bus logic), 24 V supply (U | 2500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | pluggable | yes |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
